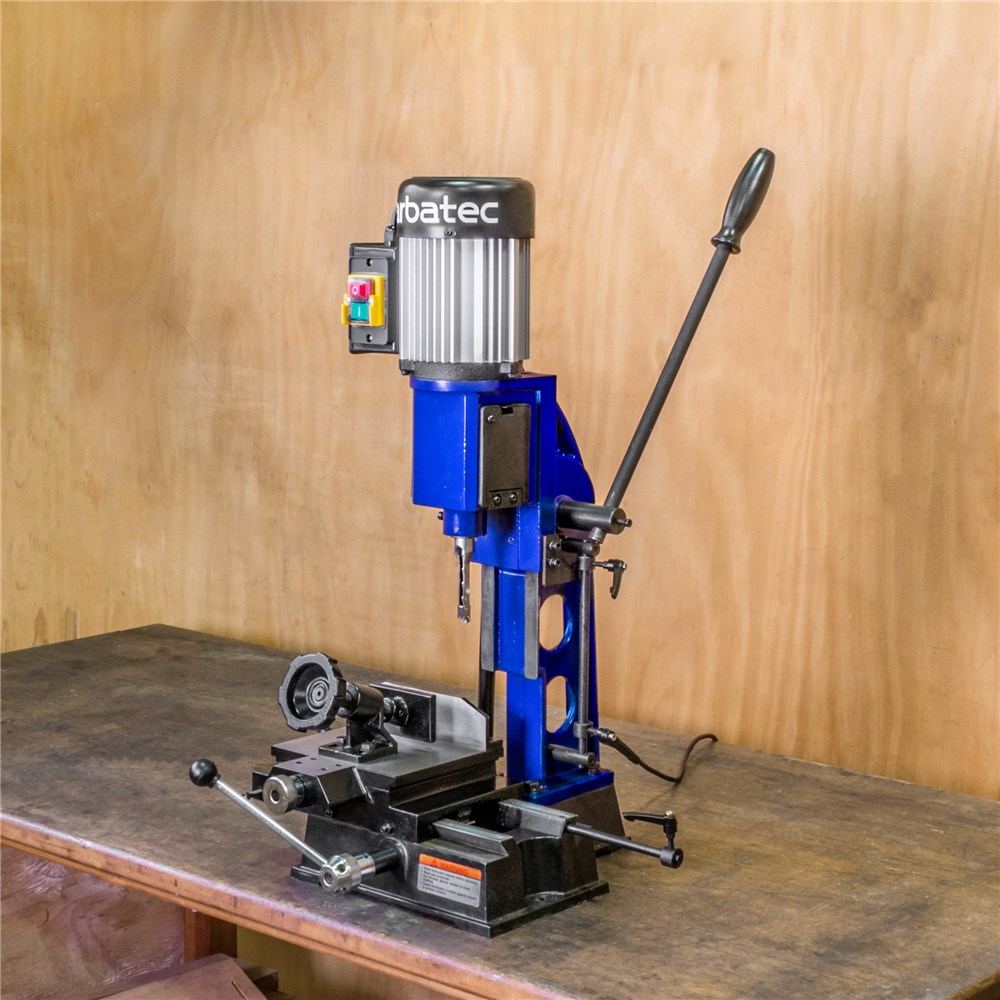

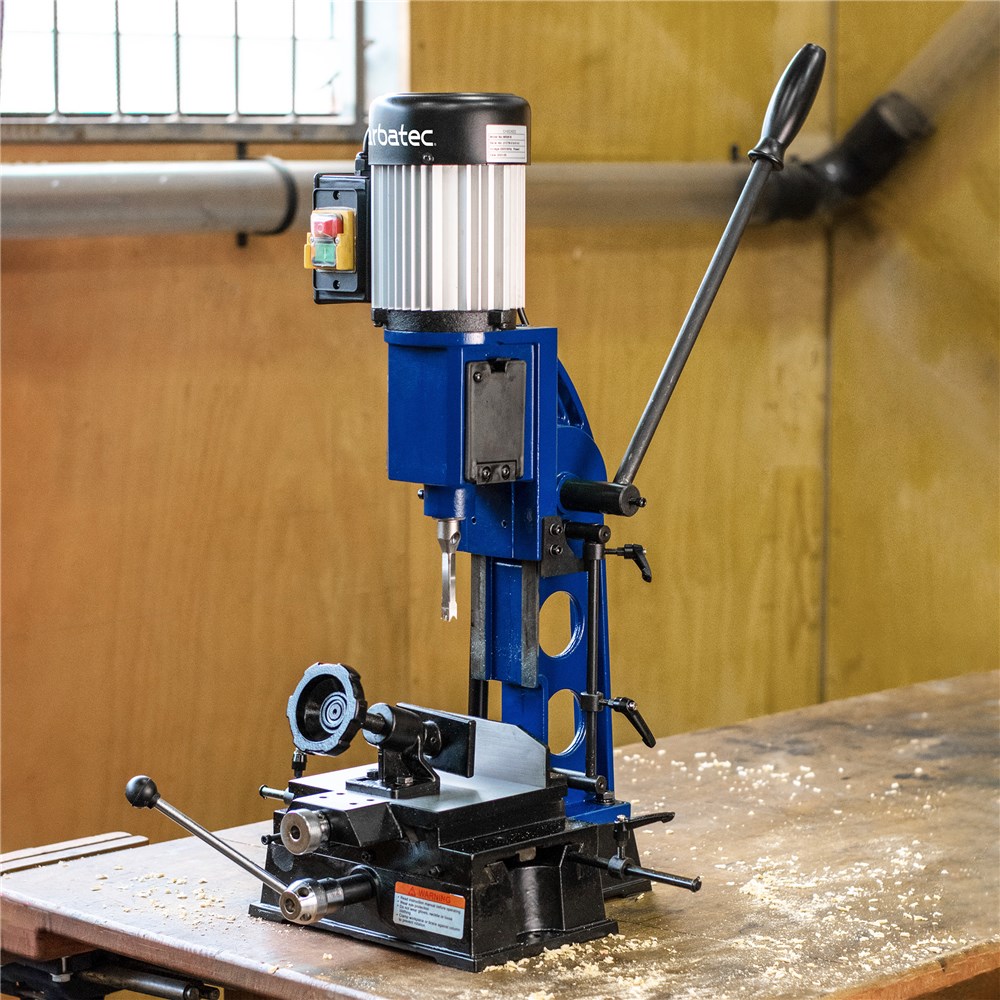

Carbatec Benchtop Chisel Mortiser

Product Code: MM-B375P

Tags Carbatec
$599 inc GST
In Stock Low Stock Temporarily Out Of Stock Please See Attributes
Buy Quantity Each (inc GST) Price (each) You Save %
Increase value Decrease value
  • Features
  • Details
  • Specifications
  • Video & Downloads
  • 1/2HP Induction motor
  • 5/8" (16mm) chisel capacity
  • 3/4" chisel shanks accepted
  • One 3/8" chisel supplied

We have updated the look & product code of our CT-HM16D (now MM-B375P), however be assured, all specifications of this machine are the same as our tried and tested CT-HM16D.

This benchtop morticer provides the huge benefit of lateral (side to side Y-axis) and longitudinal (front to back X axis) table adjustment. You can now move your workpiece accurately in small increments rather than moving it by hand and having to jig and shim the material to fit it into correct drilling position. This is particularly handy when doing multiple mortice cuts like on table legs.

Both the table and the motor head travel on dovetail shaped guides. Adjustable jib strips are fitted to ensure years of accurate use.

A gas strut provides counterbalance to the weight of the head and motor. Stops are provided for both vertical and horizontal movements for repeat work. The machine is supplied with one 3/8” chisel.

Brand Carbatec
Motor 375W (1/2 HP) Induction - Regular 10A Plug
Centre of chisel to fence 75mm
Chuck to Table Max 110mm (Max height with chisel)
Maximum Chisel Size 16mm
Shank Size 19mm (3/4")
Speed 1400rpm
Stroke 120mm
Workshop Footprint (WxDxH) 670mm x 450mm x 340mm
Table Travel - Lateral 170mm
Table Travel - Longitudinal 70mm
Tilt Type & Degree N/A
Warranty Period 2 Years
Shipping Weight 42kg
Nett Weight 40kg
