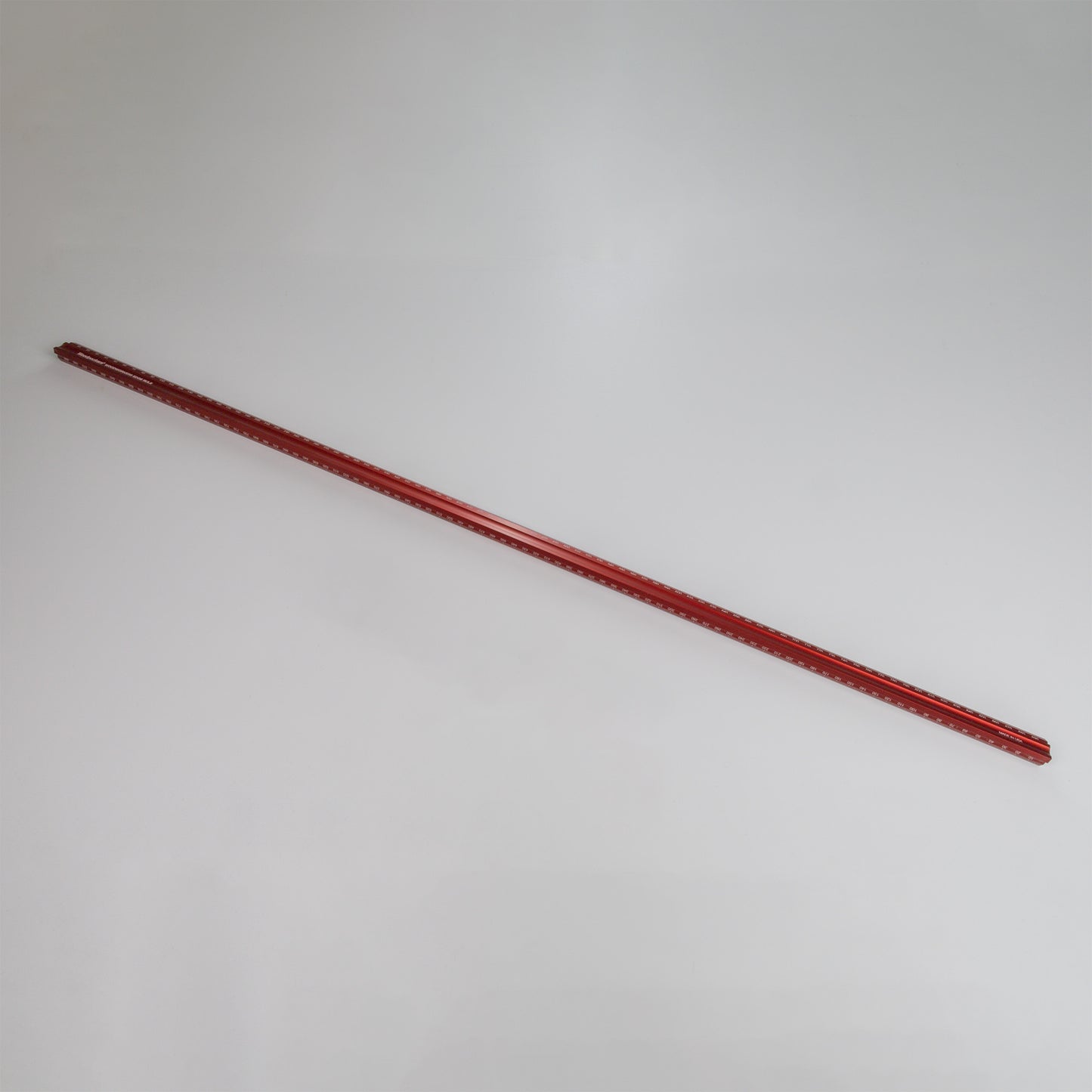

Woodpeckers Edge Rule 300mm ERULE-300

• Hardware installation usually calls for a measurement referenced from an intersecting cross-member…like the rails and stiles of a cabinet face frame. The Edge Rule drops in perfectly zeroed out to the intersection and aligned to the stock.
• Place the desired dimension at the end of your board and mark at the end of your Edge Rule on both the face and edge. Use the optional Edge Rule Stop to accurately and easily repeat that setting as many times as needed.
• Even when you're not working at the edge of your stock, you'll still find the Edge Rule handy. The profiled shape makes it easier to move around on your stock than a thin, flat rule, and the bevelled edges get the scale right next to your stock where you need it.
• The angle inside the Edge Rule is 89 °. This slightly acute angle puts the contact between your workpiece and the Edge Rule at the outside edges, which means slight deviations in your workpiece edge won't throw off your measurement.
• Both edges are beveled, putting the scale right next to your work, which simplifies marking and minimizes parallax error. The Edge Rules are anodized for surface protection.
• The graduated scale is laser engraved to an accuracy of ± .004” total accumulated error over the entire length.

Measuring the narrow edge of stock with typical rules is a little awkward. Getting the rule parallel to the stock and leaving yourself room to make a tic mark can become quite a juggling act. Working on the face of a piece is usually a little easier, but you can still struggle to keep the rule parallel to your work. Woodpeckers Woodworkers Edge Rule simplifies your life by wrapping around the edge of your stock and giving you an accurate scale on both sides. The short side is just 9.5mm wide, giving you plenty of room to mark stock as thin as 11mm. The long side reaches 19mm across the face of your piece. Whether you're working on the edge or the face, the corner of the Edge Rule always keeps you properly aligned.

This rule is the 300mm model. A 900mm model is also available.

Note that some images serve as range illustrations and may not reflect the actual models and quantities. For an accurate depiction, see the first image on a white background.
