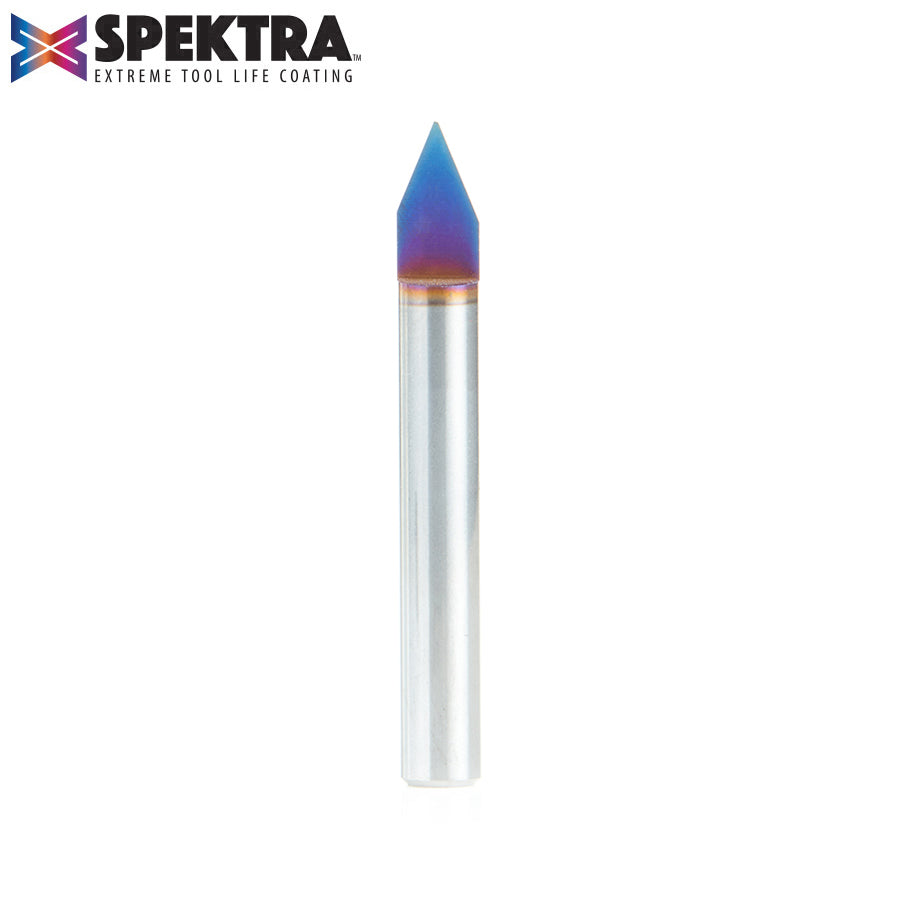

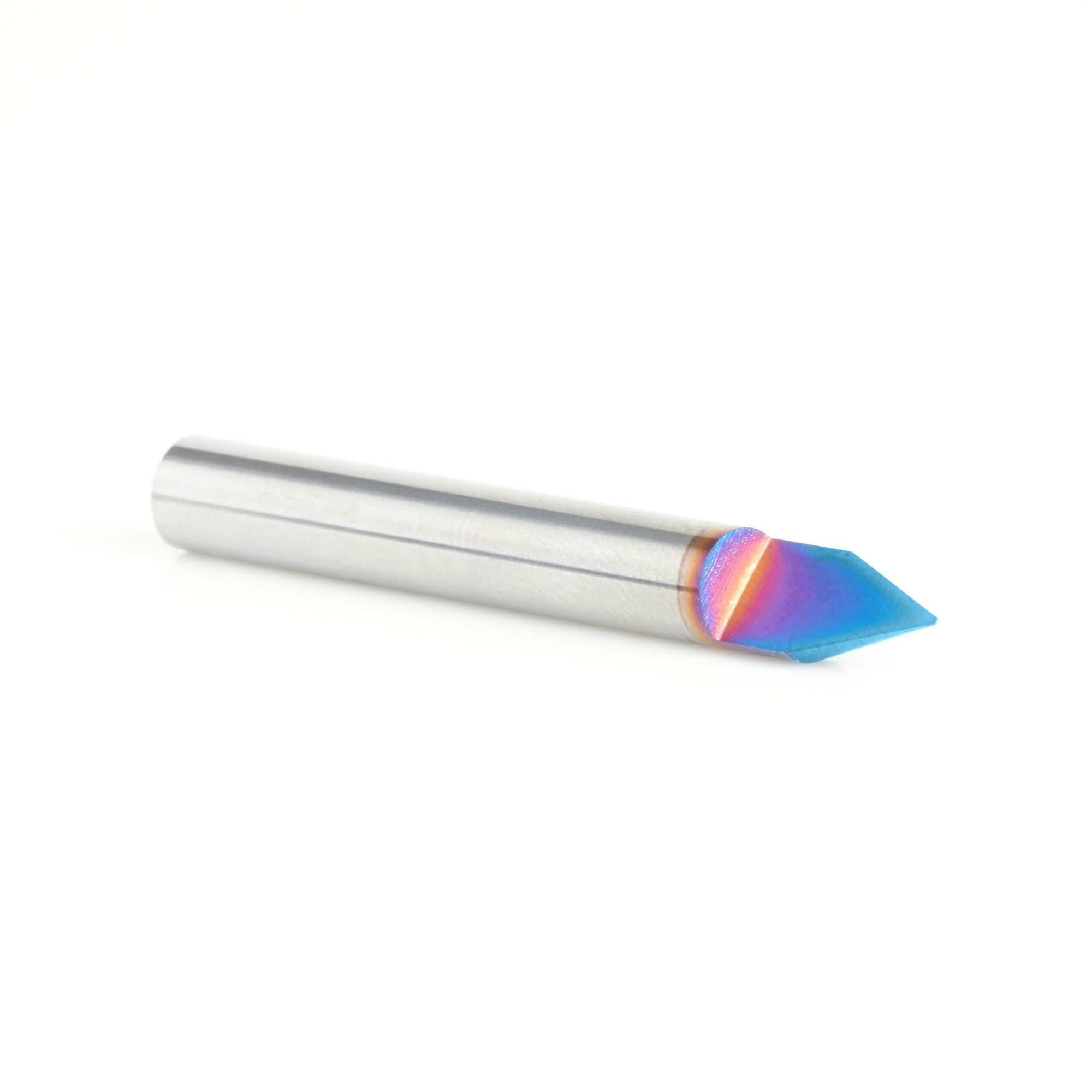

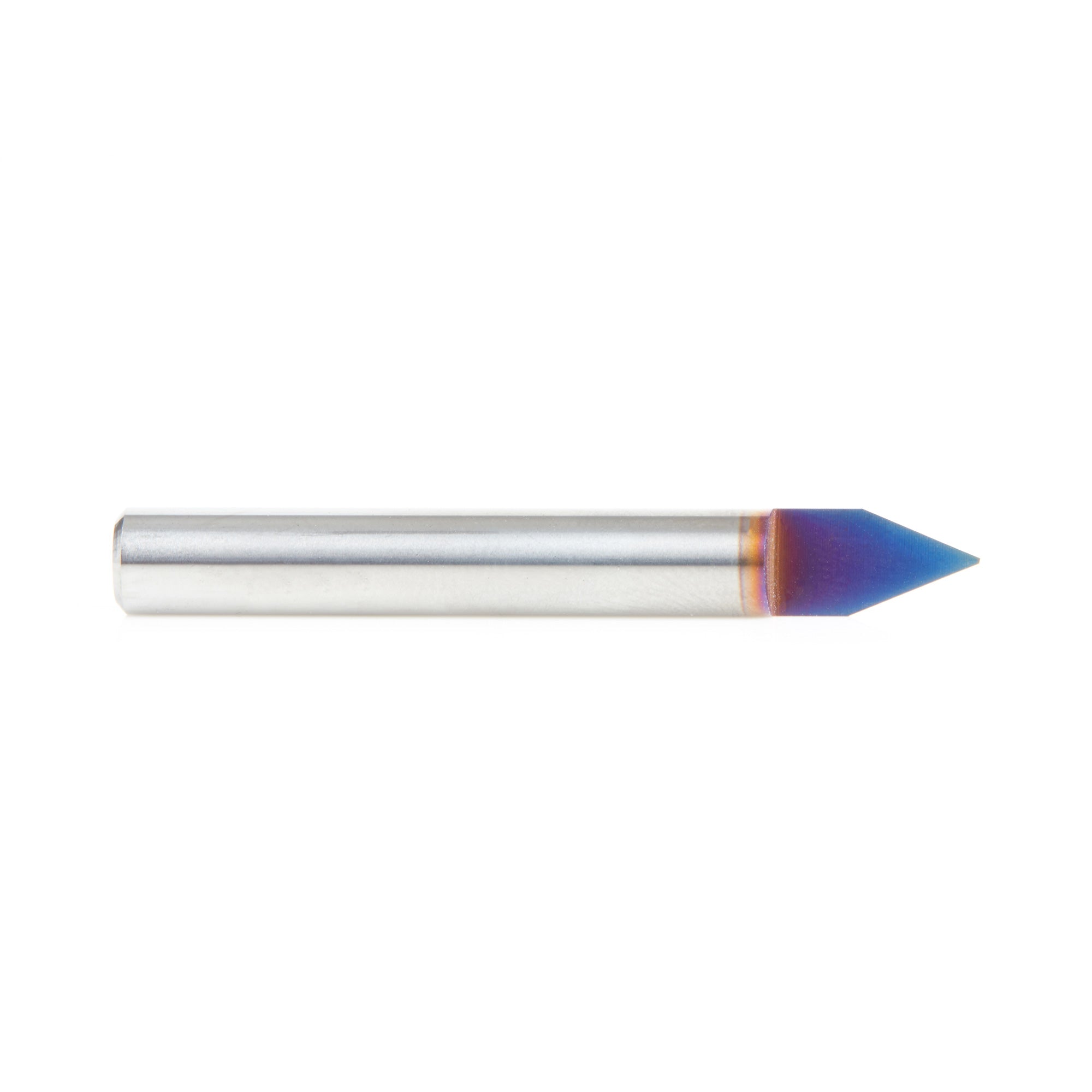

Amana 45622-K Spektra Solid Carbide Engraving Bit, 45° Angle, 1/4" Shank

Amana 45622-K Spektra Solid Carbide Engraving Bit, 45° Angle, 1/4" Shank

Product Code:
AM-45622-K

For extra-fine carving and lettering details. These tools are used for wood, plastic and solid surface materials. Maximum RPM 28,000.

Our Spektra bits feature a nACo nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.
nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based coloUr dissipates immediately upon use. nACo nanocomposite coating will not wear off.

Vectric and Fusion 360 compatible tool files for 45622-K available for download click here.

$63.00
$0.00 $63.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $15.75
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

For extra-fine carving and lettering details. These tools are used for wood, plastic and solid surface materials. Maximum RPM 28,000.Angle (a°)45°Cutting Height (B)0.272"Shank (d)1/4Overall Length (L)2Tip Width (t)0.025"

Additional information
5 specs...
Bit Cut Angle
45°
Bit Cut Depth
6.9 mm (0.272")
Bit Shank Size
6.35 mm (1/4")
Bit Tip Diameter
6.35 mm (1/4")
Overall Length
50.8 mm (2")
