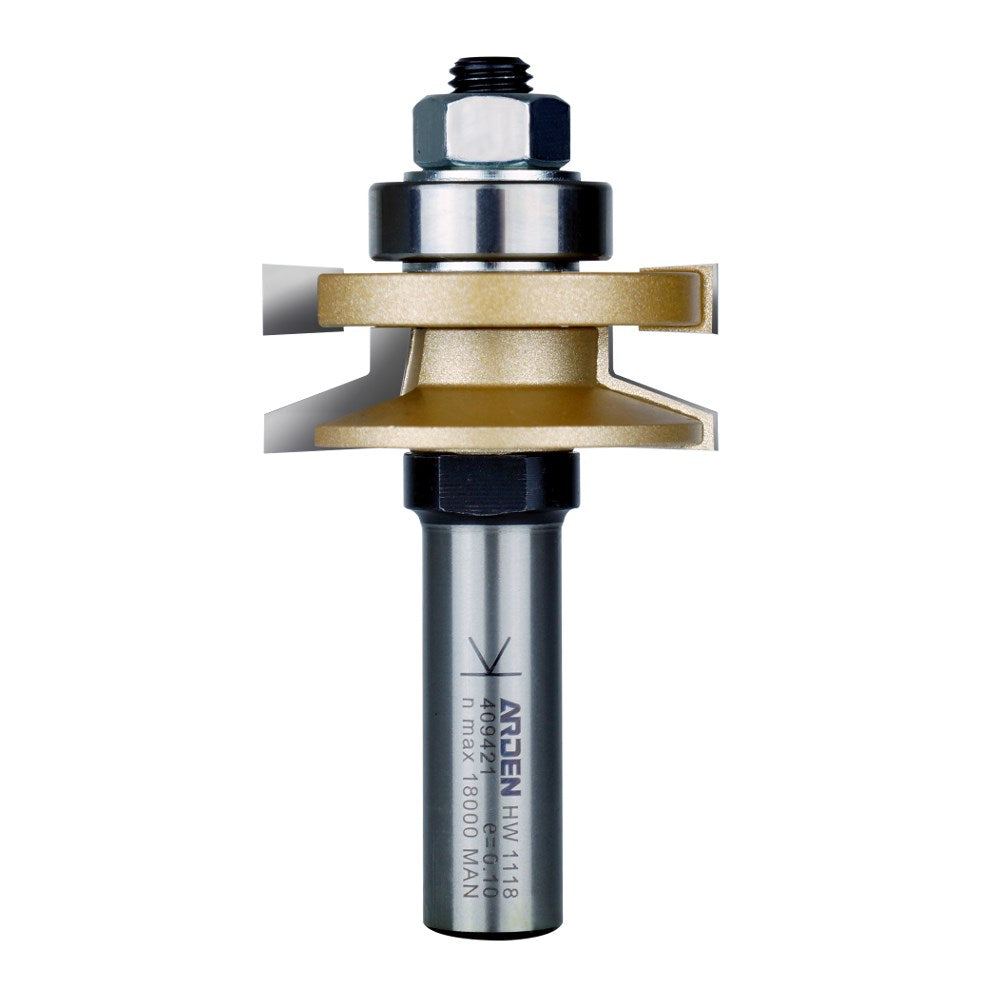

Arden Reversible Rail and Stile Bit - 41.2mm Diameter 1/2" Shank

Arden Reversible Rail and Stile Bit - 41.2mm Diameter 1/2" Shank

Product Code:
ARD-409421

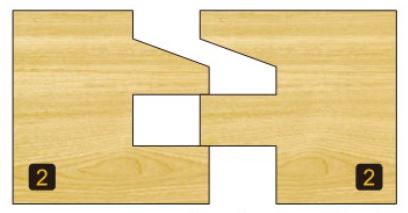

Rail and Stile joinery makes for a very strong joint due to the larger surface area for gluing, as well as easy alignment of components as they lock together. It also provides a decorative profile to your frame edge. This bit needs to be reconfigured between rail mode and stile mode to create the two components. Simply undo the nut and reverse the positions of the blades to change your cut for matching profiles. The nut secures the assembly each time. Used in a router table, the bearing is set flush with the fence.

$93.00
$0.00 $93.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $23.25
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

Rail and Stile joinery makes for a very strong joint due to the larger surface area for gluing, as well as easy alignment of components as they lock together. It also provides a decorative profile to your frame edge. This bit needs to be reconfigured between rail mode and stile mode to create the two components. Simply undo the nut and reverse the positions of the blades to change your cut for matching profiles. The nut secures the assembly each time. Used in a router table, the bearing is set flush with the fence.

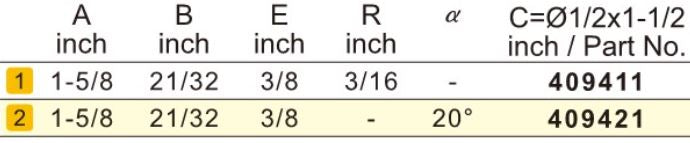

Additional information
6 specs...
Bearing Diameter
7/8" (22 mm)
Bearing ID
5/16" (8 mm )
Bit Cut Diameter
41.2 mm (1-5/8")
Bit Cut Length
23.8 mm (15/16")
Bit Profile Depth
9.5 mm (3/8")
Bit Shank Size
1/2"
