CMT Beading Bit - 8mm Radius 1/4" Shank

CMT Beading Bit - 8mm Radius 1/4" Shank

Product Code:
839-285-11

The CMT beading bit uses a smaller bearing than a round over bit to produce an extra inset bead along the lower edge of the cut, to create a detail otherwise not achieved with a standard round over bit.
To convert your round over bit to a beading bit, or vice versa, simply change the bearing.
Note: Be sure to keep the black bearing washer right side up to correspond with the bearing rotation when re-assembly can cause the screw to come loose.

$71.00
$0.00 $71.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $17.75
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

The CMT beading bit uses a smaller bearing than a round over bit to produce an extra inset bead along the lower edge of the cut, to create a detail otherwise not achieved with a standard round over bit.
To convert your round over bit to a beading bit, or vice versa, simply change the bearing.
Note: Be sure to keep the black bearing washer right side up to correspond with the bearing rotation when re-assembly can cause the screw to come loose.

Additional information
8 specs...
Bearing Diameter
3/8" (9.5 mm)
Bearing ID
3/16" (4.76 mm)
Bit Cut Diameter
28.5 mm (1-1/8")
Bit Cut Length
12.7 mm (1/2")

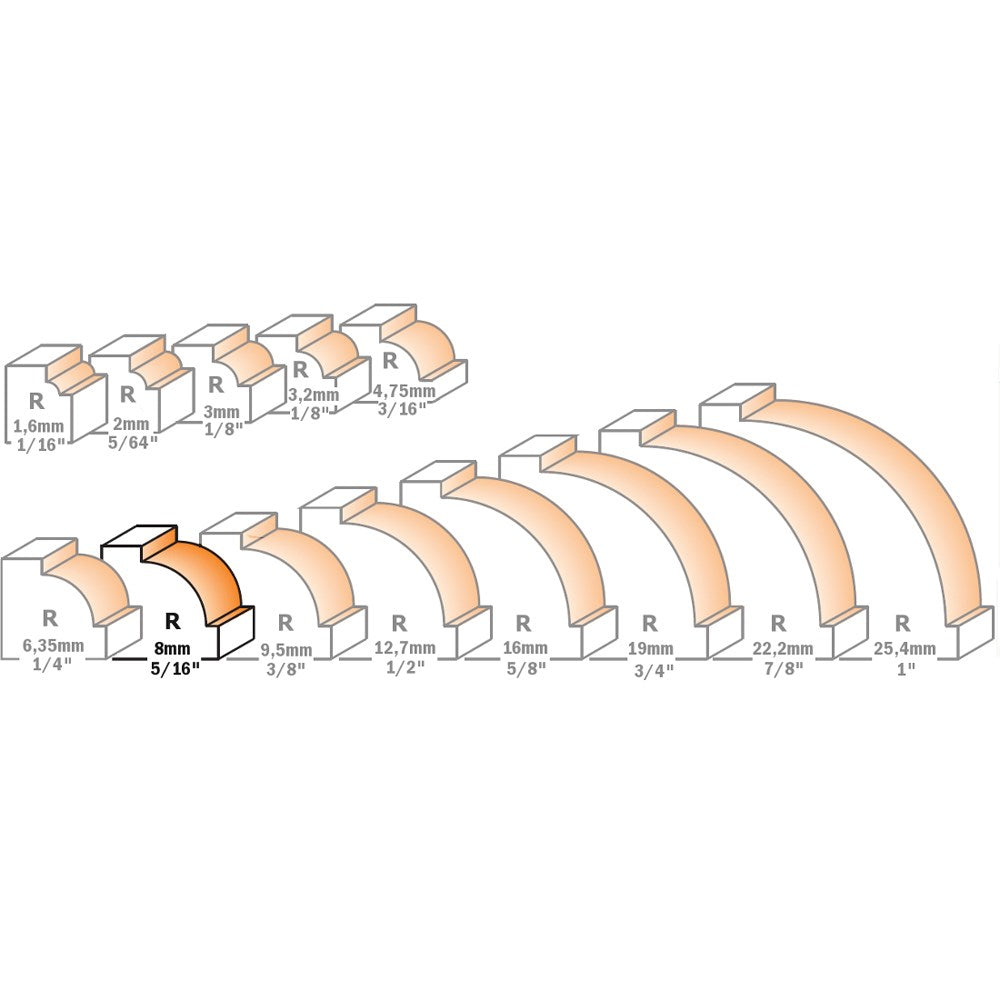

Bit Cut Radius
8 mm
Bit Shank Size
1/4"
Overall Length
52.5 mm
Replacement Bearing Code
791-002-00
