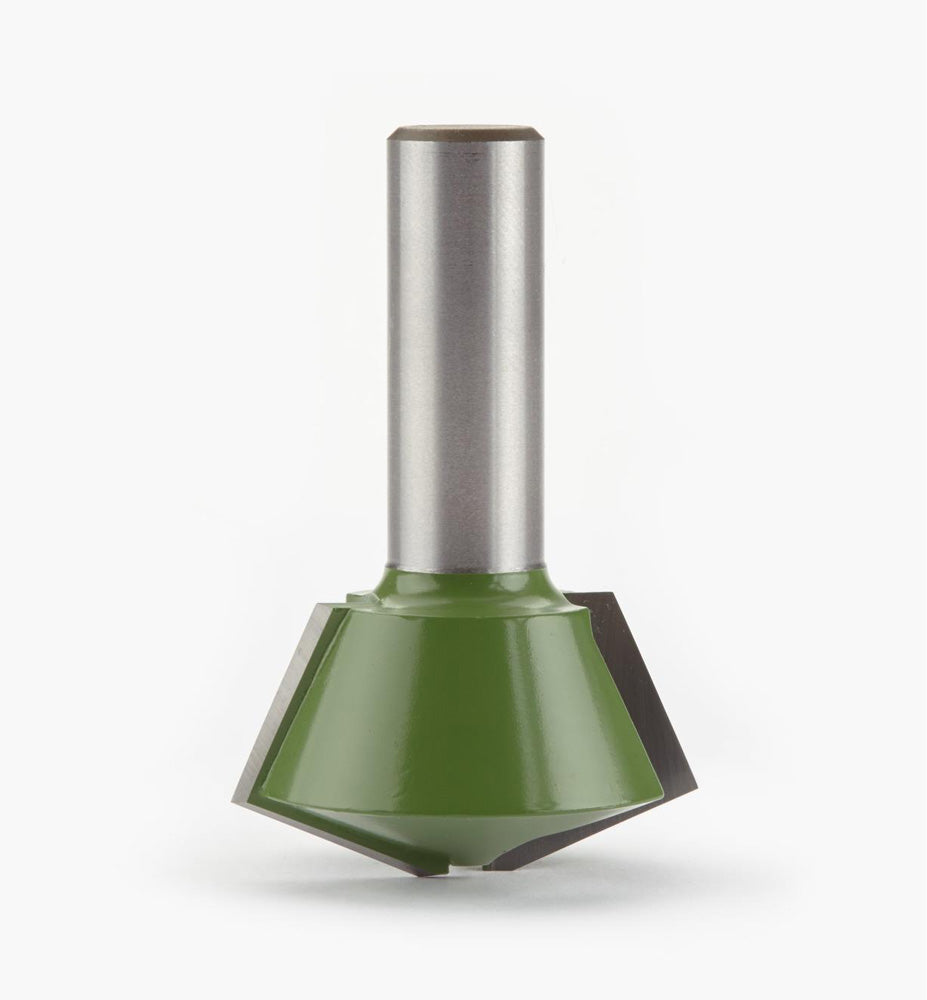

Lee Valley Bird's-Mouth Joinery Bits for 16 Sides

Lee Valley Bird's-Mouth Joinery Bits for 16 Sides

Product Code:
16J40-66

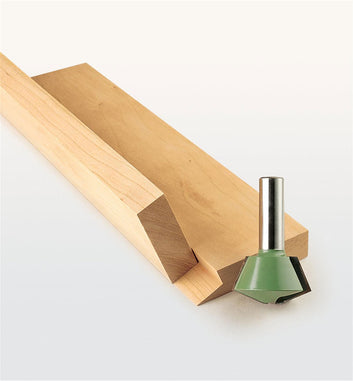

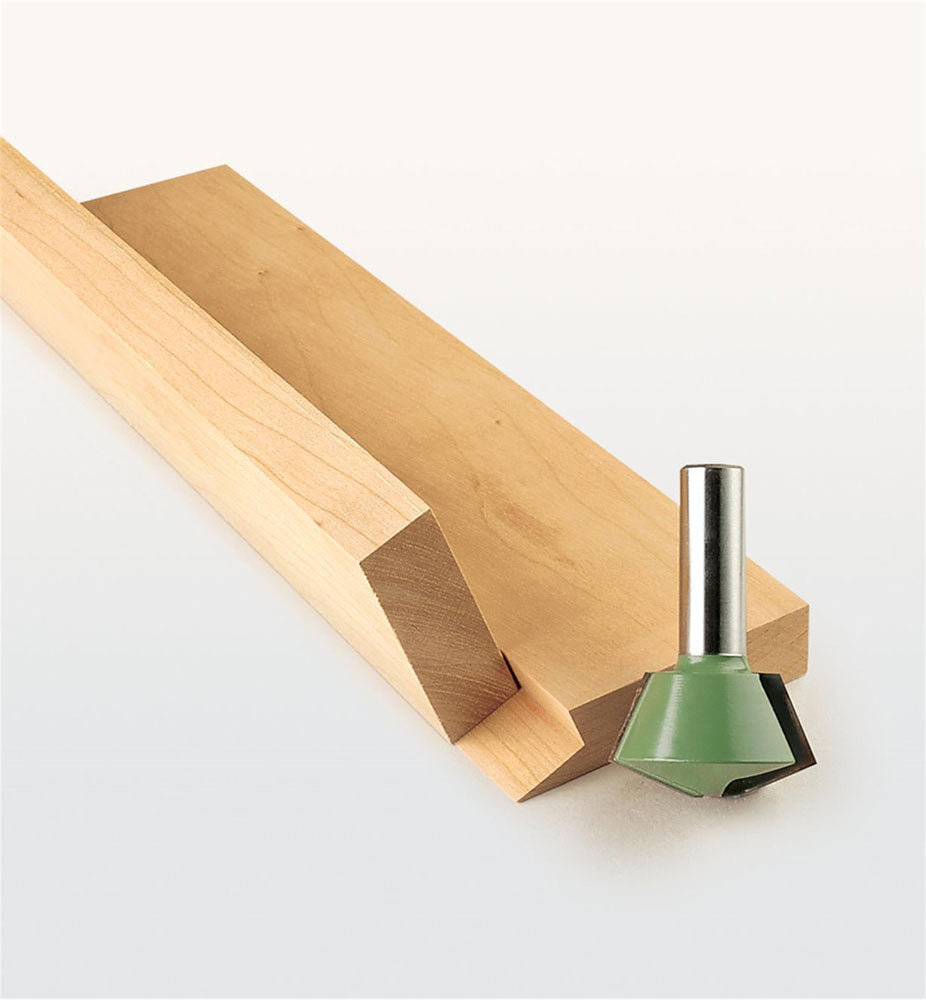

Historically used in the construction of masts and booms for wooden boats, the bird's-mouth joint is straightforward to make, stronger than a traditional miter and, with nesting joints, easier to glue up without shifting.
With this cutter, it is a simple matter to make 16 sided hollow columns, as well as straight or tapered multi-sided planters, bowls, etc., all of which can be left multi-faceted or planed / sanded round. Generally, more sections are required for larger-diameter assemblies to keep the wall thickness to a minimum, and reduce the amount of material to be removed when rounding.
Designed to produce flush joints with material up to 7/8" thick. Thicker material can be used, but will require some dressing after glue-up. Holder included with each bit.
For better safety, these bits should be used only in a router table equipped with a fence and not used free hand.

$64.95
$0.00 $64.95
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $16.24
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

Historically used in the construction of masts and booms for wooden boats, the bird's-mouth joint is straightforward to make, stronger than a traditional miter and, with nesting joints, easier to glue up without shifting.
With this cutter, it is a simple matter to make 16 sided hollow columns, as well as straight or tapered multi-sided planters, bowls, etc., all of which can be left multi-faceted or planed / sanded round. Generally, more sections are required for larger-diameter assemblies to keep the wall thickness to a minimum, and reduce the amount of material to be removed when rounding.
Designed to produce flush joints with material up to 7/8" thick. Thicker material can be used, but will require some dressing after glue-up. Holder included with each bit.
For better safety, these bits should be used only in a router table equipped with a fence and not used free hand.

Additional information
3 specs...
Bit Cut Depth
22.22 mm (7/8")
Bit Cut Diameter
38.1 mm (1-1/2")
Bit Shank Size
1/2"
