Veritas Chisel Plane

Veritas Chisel Plane

Product Code:
05P21-01

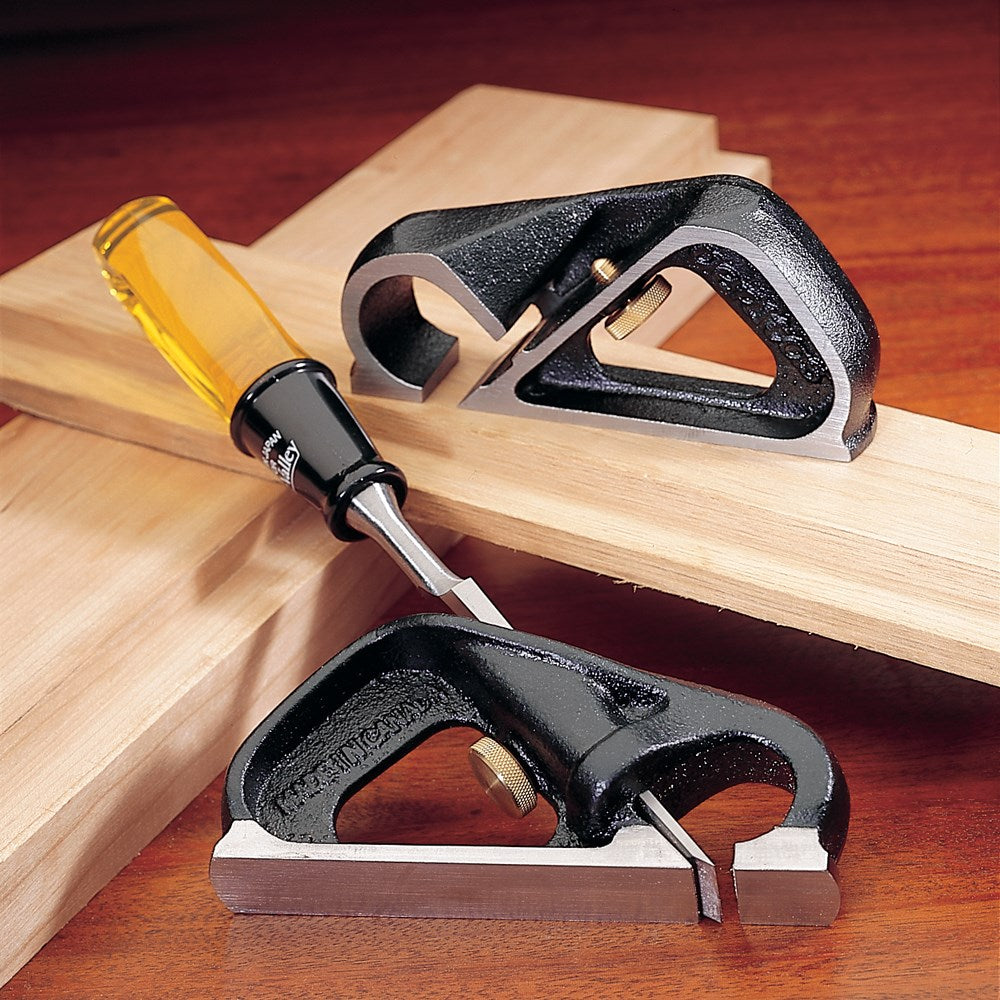

Rabbet planes used to be widely available, but are now being discontinued by manufacturers. We developed this specialized plane to convert a chisel into a rabbet plane.

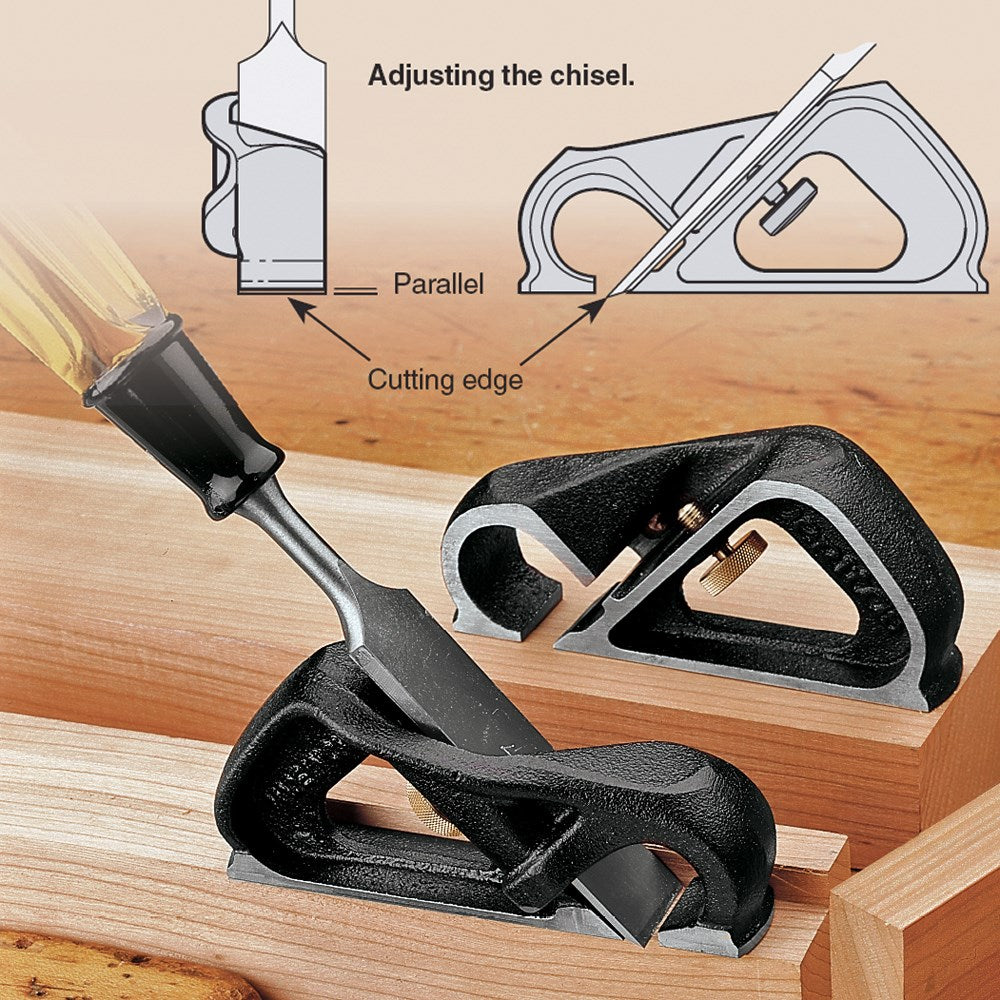

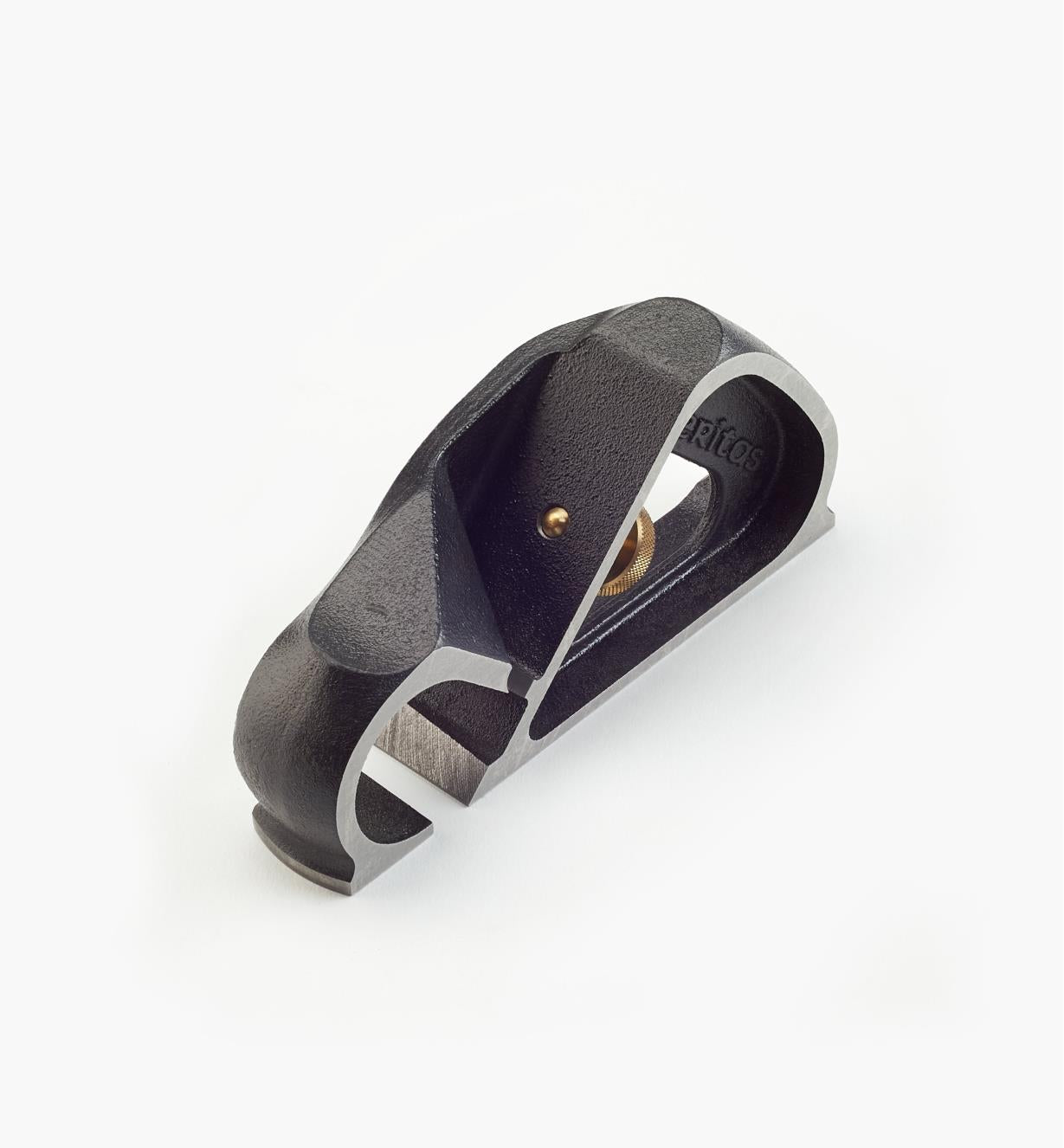

The body is made of ductile cast iron and is configured to hold a 1" bevel-edge chisel at a 45 angle, the same pitch as used on bench planes. It becomes a small plane that works equally well as a shoulder plane or rabbet plane and can be used to clean up machine-cut rabbets and tenons. It works like a butt mortice plane for cutting hinge gains. It will also cut 1" dadoes and grooves up to a depth of 3/8".
Precisely machined. Overall size is 1 3/8" wide by 5 1/2" long by 2 1/2" high. The clamping screw is solid brass.
While it excels as a job-site plane, it is equally handy in the shop.
Made in Canada.

$123.00
$0.00 $123.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $30.75
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

Rabbet planes used to be widely available, but are now being discontinued by manufacturers. We developed this specialized plane to convert a chisel into a rabbet plane.
The body is made of ductile cast iron and is configured to hold a 1" bevel-edge chisel at a 45° angle, the same pitch as used on bench planes. It becomes a small plane that works equally well as a shoulder plane or rabbet plane and can be used to clean up machine-cut rabbets and tenons. It works like a butt mortice plane for cutting hinge gains. It will also cut 1" dadoes and grooves up to a depth of 3/8".
Precisely machined. Overall size is 1 3/8" wide by 5 1/2" long by 2 1/2" high. The clamping screw is solid brass.
While it excels as a job-site plane, it is equally handy in the shop.
Made in Canada.
