CMT Box making bit 4.78mm (3/16") with 1/2" Arbor - 6.35MM CUTTING (I)

CMT Box making bit 4.78mm (3/16") with 1/2" Arbor - 6.35MM CUTTING (I)

Product Code:
CMT-BMB1

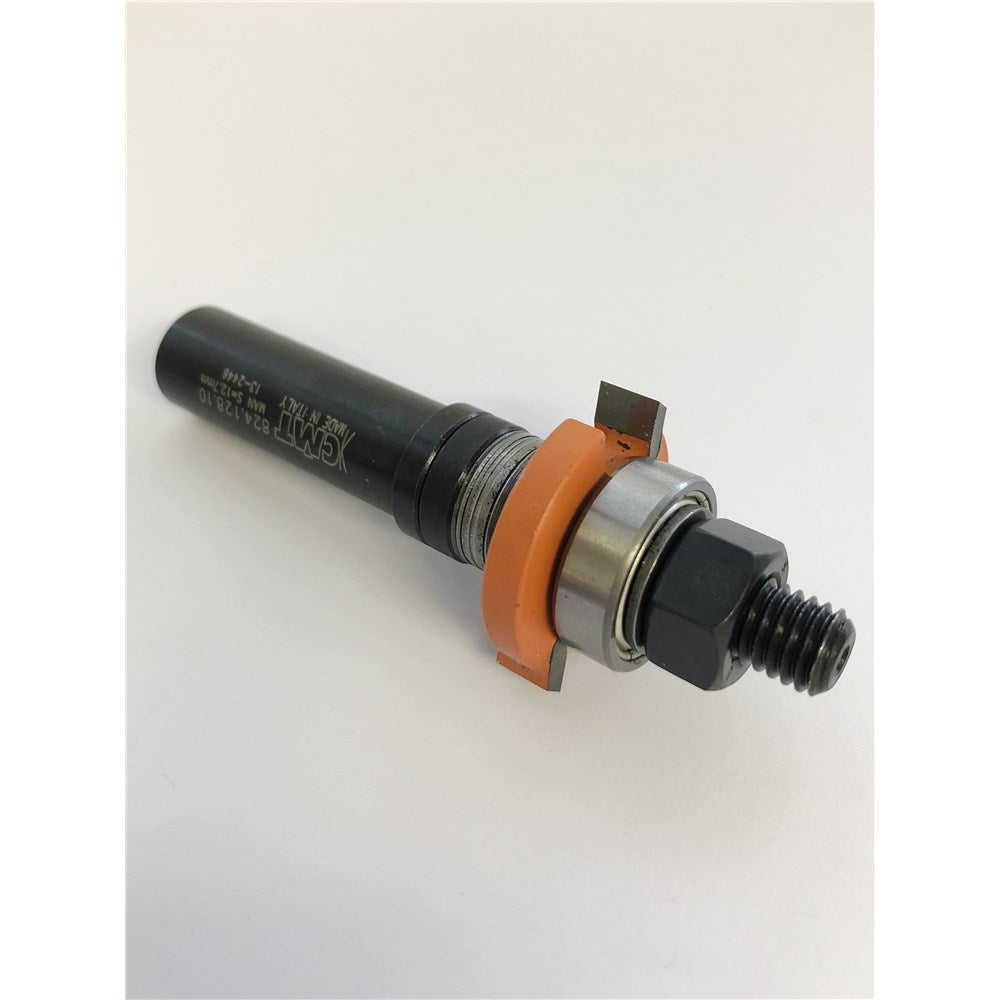

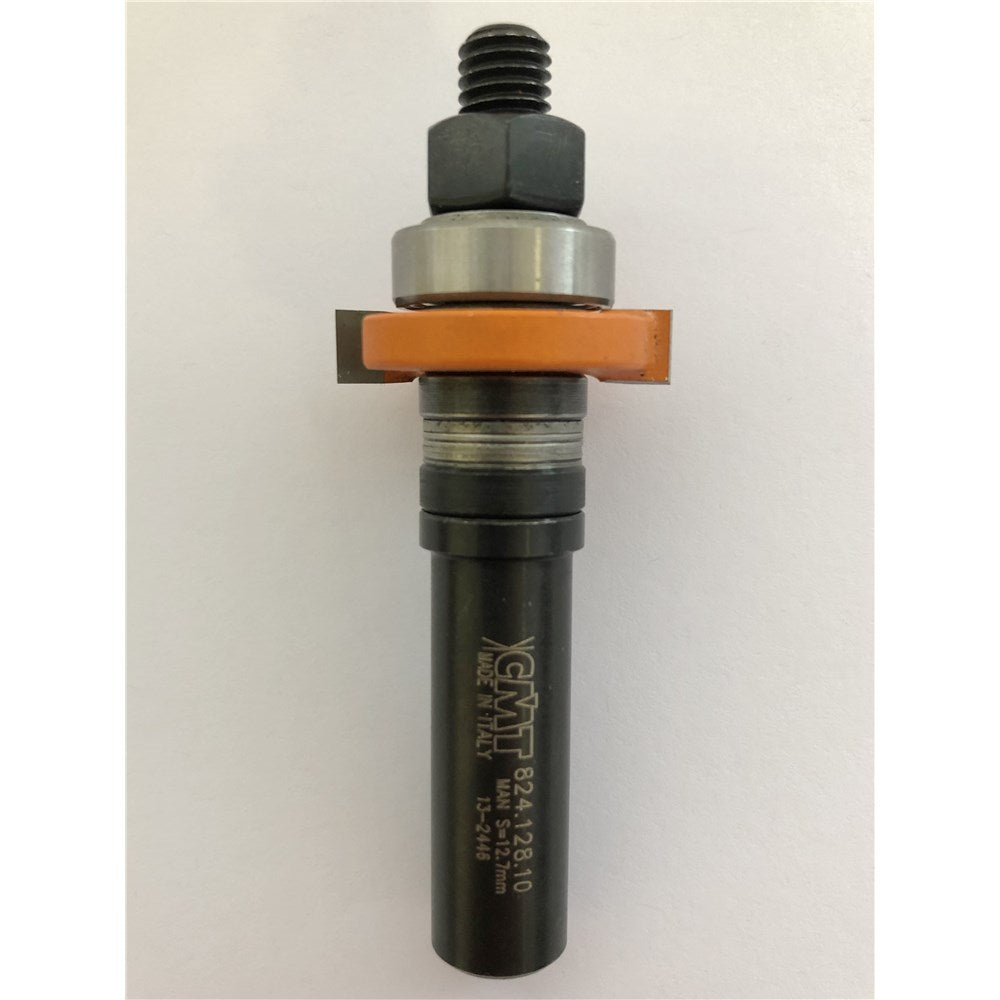

CMT BOX MAKING CUTTER, 1 1/8" DIA(28.5MM), 6.35MM CUTTING (I), BEARING 19MMOD X 8MMID

This CMT slot cutter is specifically created from CMT parts and put together to cut rebates for bases and lids when box making.

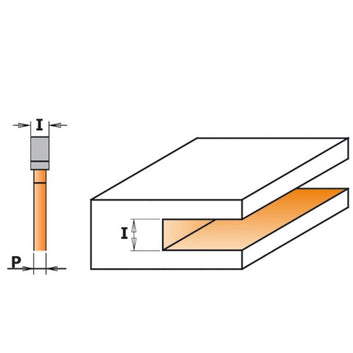

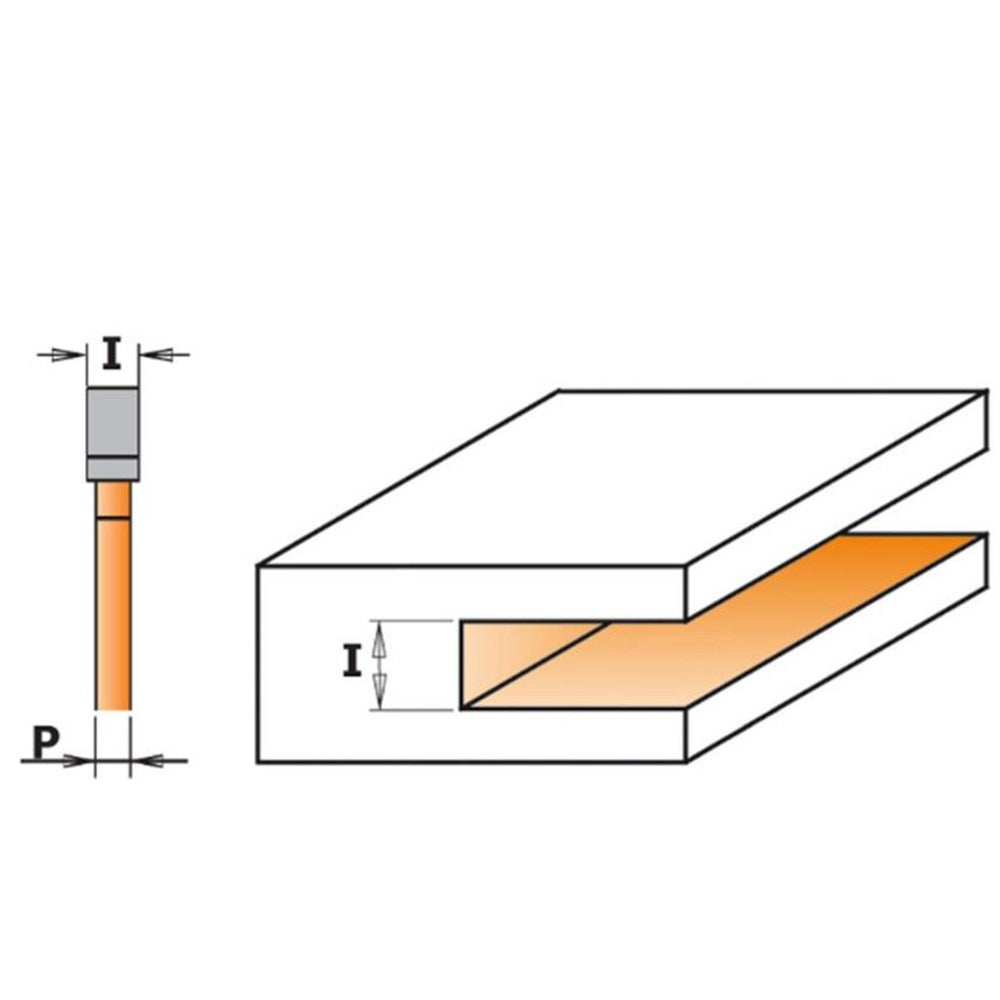

This bit cuts the trench on the inside faces so the base and lid can be neatly and easily fitted. The almost 5mm rebate gives plenty of strength for both the lid and base for small to medium sized boxes, and 6.35mm allows for that extra strength when needed when making things such as wall hung shelves.

$65.00
$0.00 $65.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $16.25
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details
Additional information
7 specs...
Bearing Diameter
3/4" (19.05 mm)
Bearing ID
5/16" (7.9 mm )
Bit Cut Depth
3/16" (4.78 mm)
Bit Cut Diameter
1-1/8" (28.5 mm)
Bit Cut Length
1/4" (6.35 mm)
Bit Shank Size
1/2"
Replacement Bearing Code
791-034-00
