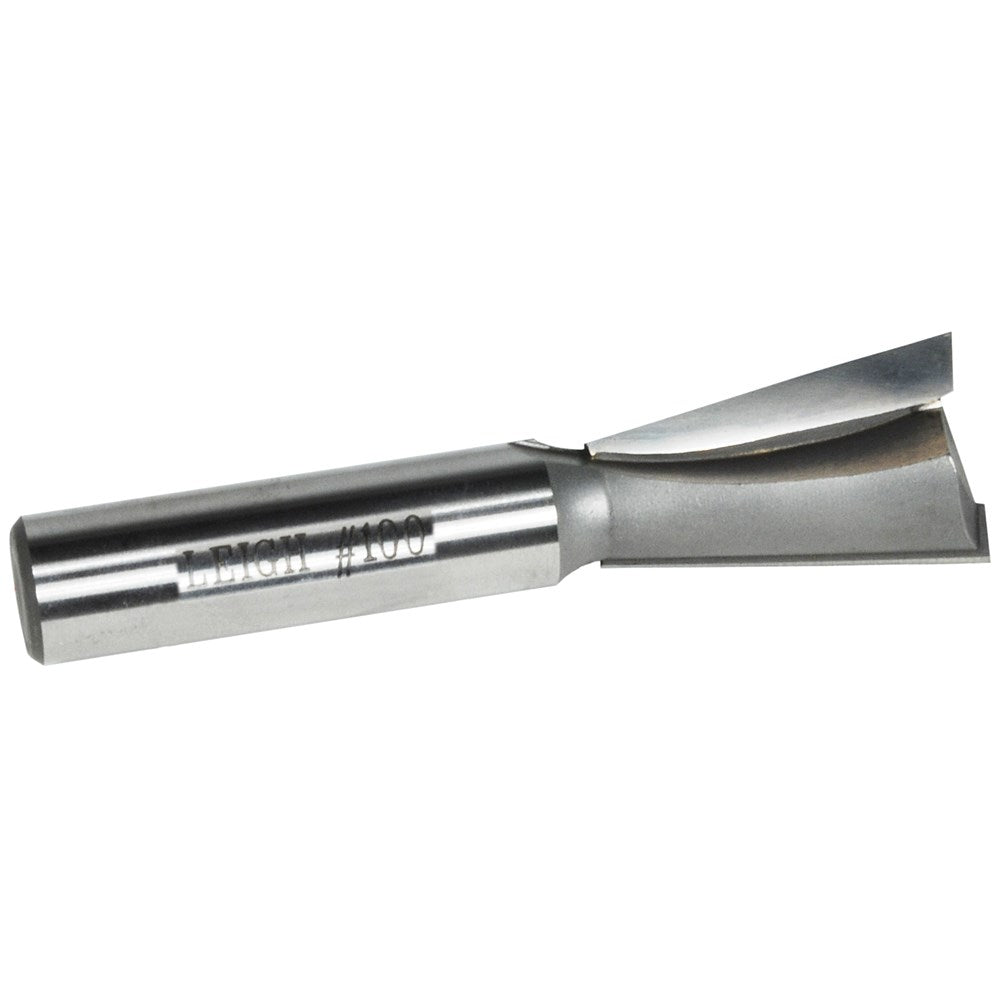

Leigh Through Dovetail Bit - 8° - 1/2" shank diameter

Leigh Through Dovetail Bit - 8° - 1/2" shank diameter

Product Code:
LGH-100

Leigh jigs come standard with a selection of router bits. These are designed for doing joints in commonly used timber, between 12mm and 20mm.
To do dovetails in material outside these thicknesses, an additional dovetail bit it needed, for materials up to 20mm. For materials from 20mm to 32mm, a combination of straight bit and dovetail bit are required.
Most of these bits have 8mm shank, which provide far greater strength than 1/4" shanked bits. There are exceptions to this, these are indicated, and require a large guide bush.
LGH-100 can route dovetails into material from 25.4mm to 31.75mm, to be used with LGH-150, this is also an optional extra bit. This has an OD of 20.5mm (13/16").

$38.00
$0.00 $38.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $9.50
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

Leigh jigs come standard with a selection of router bits. These are designed for doing joints in commonly used timber, between 12mm and 20mm.
To do dovetails in material outside these thicknesses, an additional dovetail bit it needed, for materials up to 20mm. For materials from 20mm to 32mm, a combination of straight bit and dovetail bit are required.
Most of these bits have 8mm shank, which provide far greater strength than 1/4" shanked bits. There are exceptions to this, these are indicated, and require a large guide bush.
LGH-100 can route dovetails into material from 25.4mm to 31.75mm, to be used with LGH-150, this is also an optional extra bit. This has an OD of 20.5mm (13/16").

Additional information
4 specs...
Bit Cut Depth
25.4 mm to 31.75 mm (1" - 1-1/4")
Bit Cut Diameter
20.5 mm (13/16")
Bit Shank Size
1/2"
Compatibility
Use Leigh Bit - LGH-150
