Veritas® Inlay Cutter Head for Router Plane

Veritas® Inlay Cutter Head for Router Plane

Product Code:
05P38-45

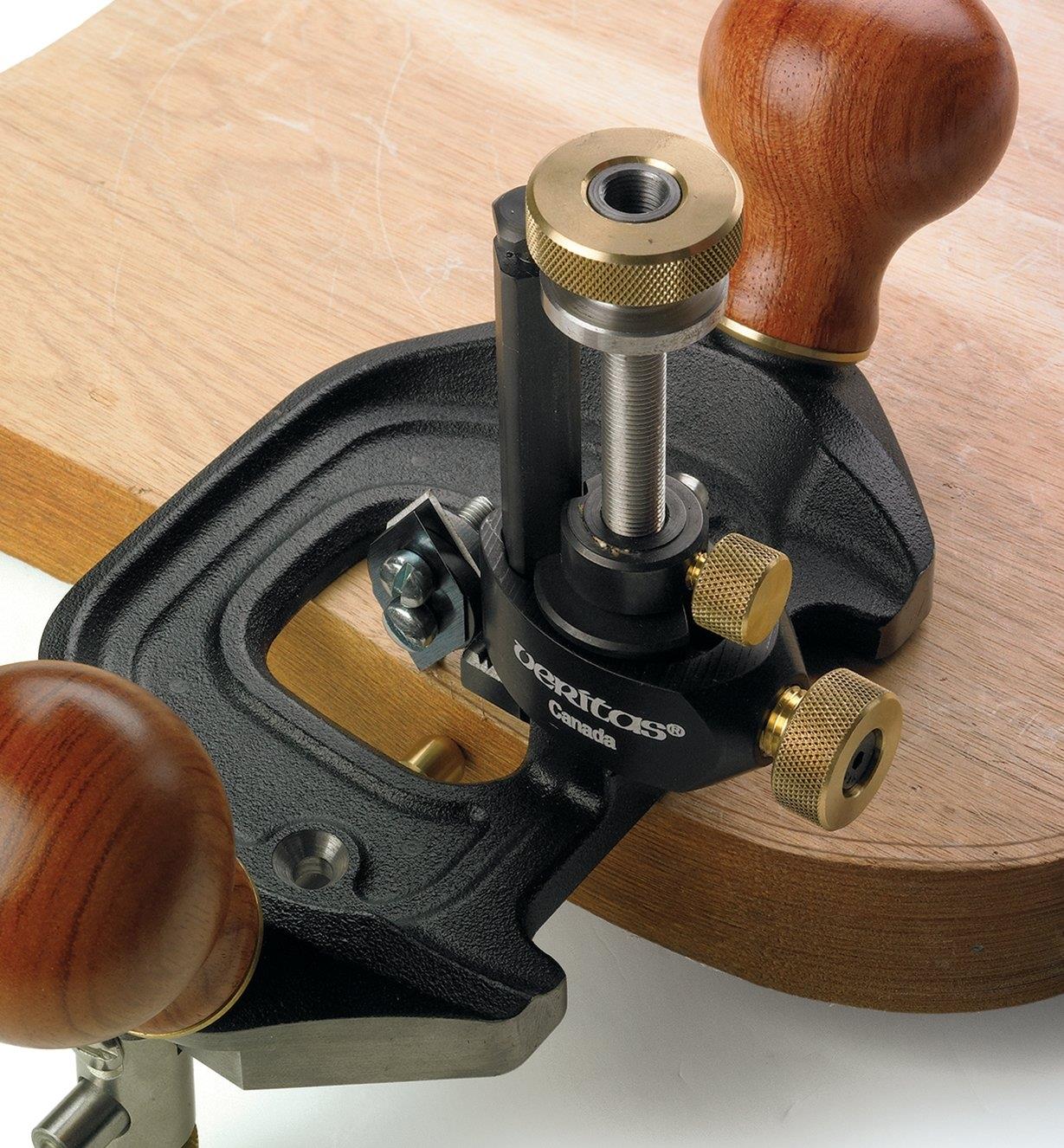

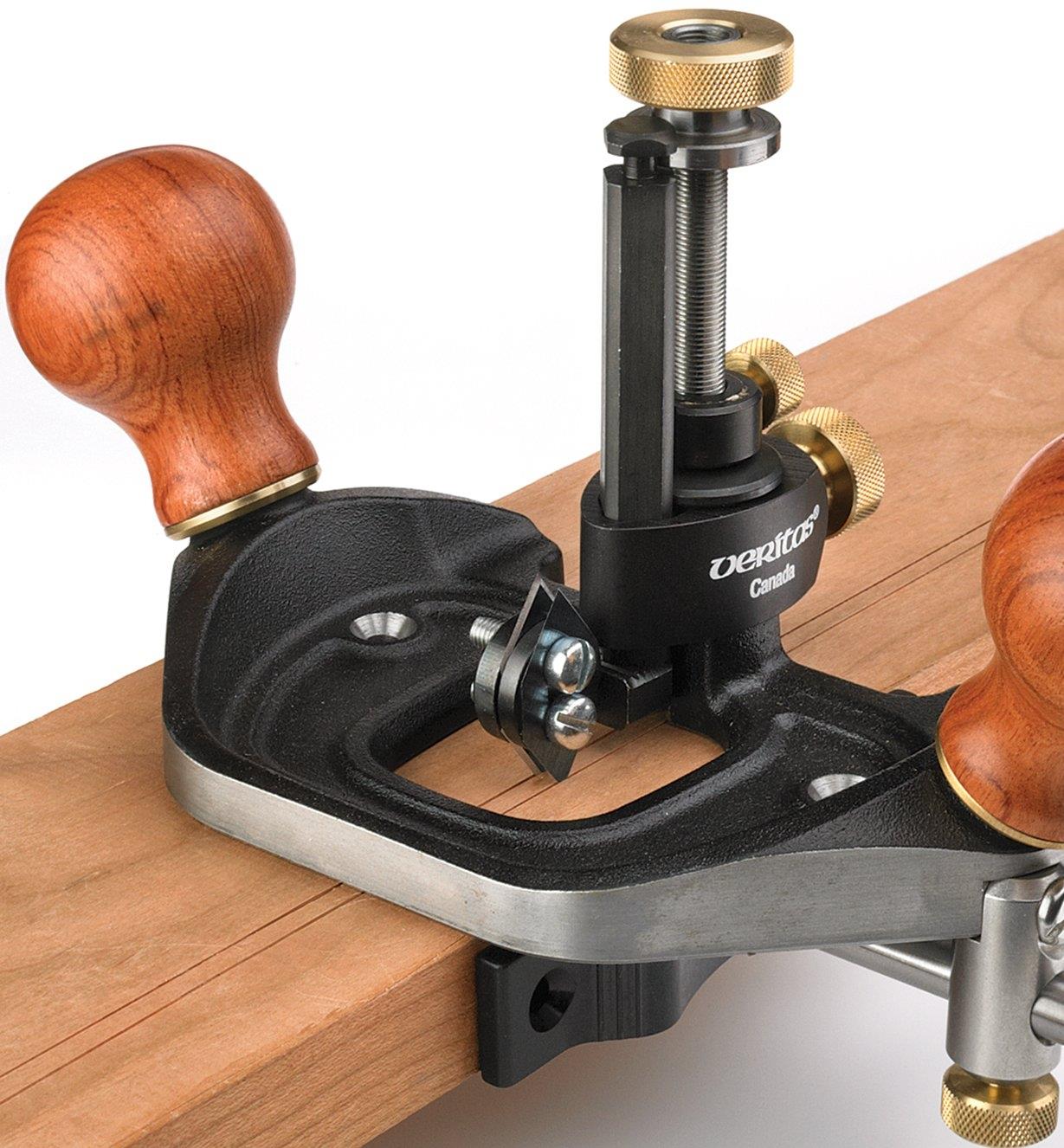

Designed to fit the Veritas router plane, it gives the user the ability to lets you score a shallow groove to accept inlaid purfling, banding or stringing, taking advantage of the planes fence and depth-adjustment mechanism to precisely control groove position and depth.
The cutter head holds a pair of included single bevel slicing blades that score crisply defined groove outlines across, with or diagonal to the grain. By using a chisel or switching to a standard router plane blade matching or smaller than the width of the desired groove, you can quickly hog out the waste between the scored lines.

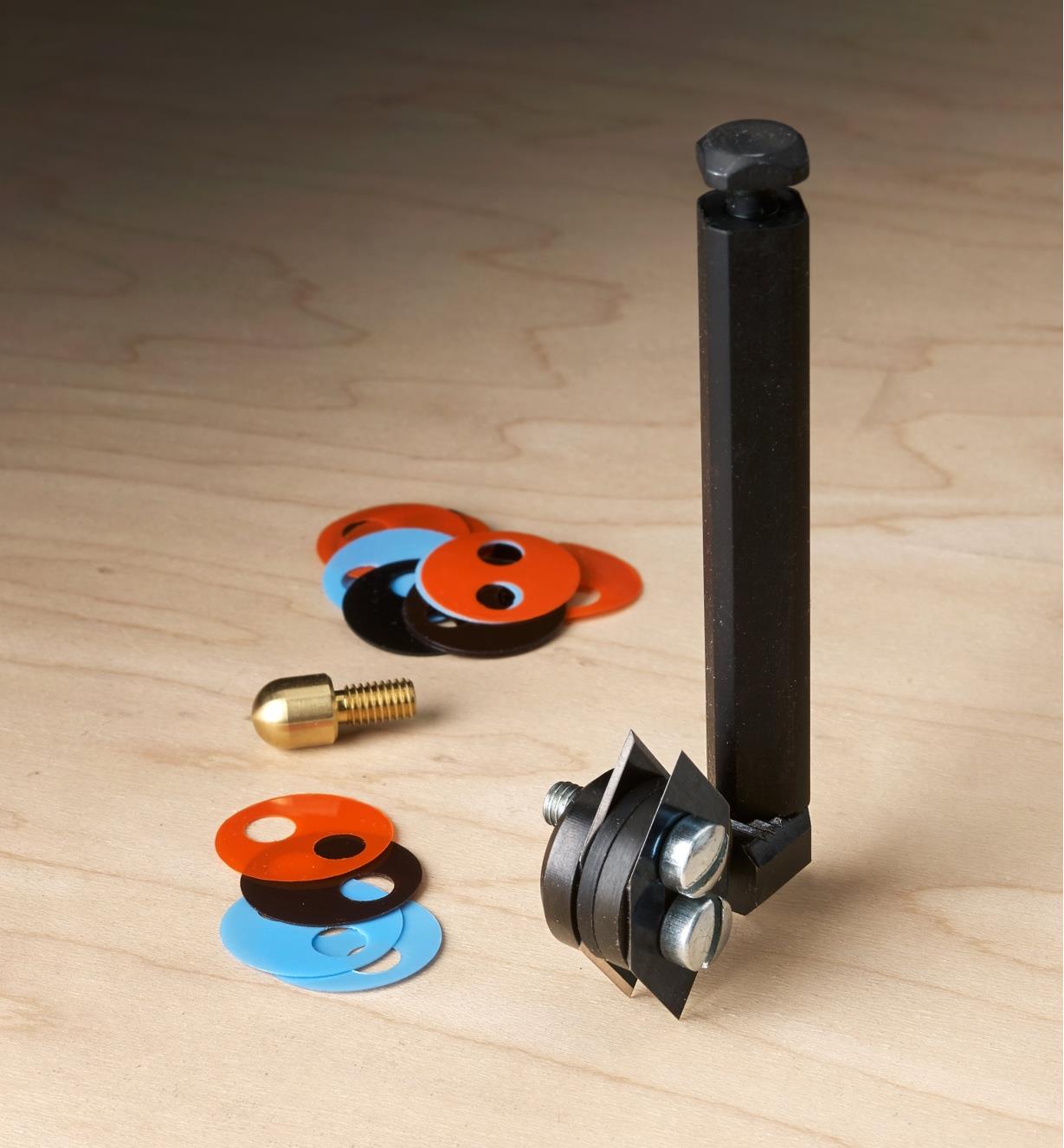

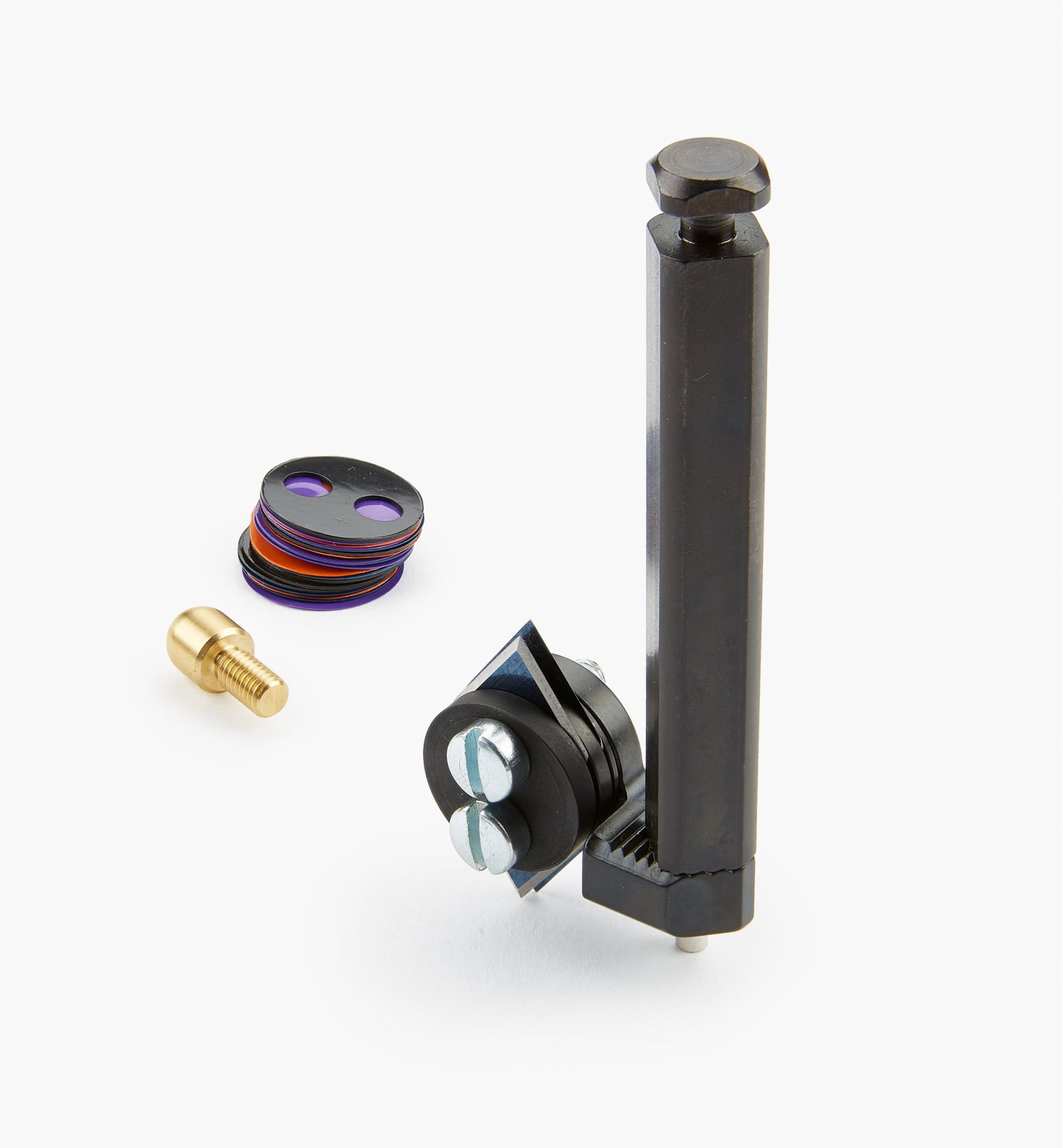

An included set of shims and spacers lets you set blade spacing to define groove widths from 1/16" to 15/32" (1.5mm to 11.9mm). The set includes five each of four sizes of plastic shims (0.002", 0.005", 0.01", 0.02") and one each of 0.04", 0.08" and 0.12" steel spacers.
Replacement blades available (sold individually). Made in Canada.

$129.00
$0.00 $129.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $32.25
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

Designed to fit the Veritas router plane, it gives the user the ability to lets you score a shallow groove to accept inlaid purfling, banding or stringing, taking advantage of the plane’s fence and depth-adjustment mechanism to precisely control groove position and depth.
The cutter head holds a pair of included single bevel slicing blades that score crisply defined groove outlines across, with or diagonal to the grain. By using a chisel or switching to a standard router plane blade matching or smaller than the width of the desired groove, you can quickly hog out the waste between the scored lines.
An included set of shims and spacers lets you set blade spacing to define groove widths from 1/16" to 15/32" (1.5mm to 11.9mm). The set includes five each of four sizes of plastic shims (0.002", 0.005", 0.01", 0.02") and one each of 0.04", 0.08" and 0.12" steel spacers.
Replacement blades available (sold individually). Made in Canada.
