Kreg Micro-Pocket™ Drill Guide Kit 530

Use your 500-Series Pocket-Hole Jig to create compact pocket holesThis unique Micro-Pocket Drill Guide Kit creates a 25% smaller pocket hole (15/16" long) that works great for smaller projects, thinner stock, and tighter repairs.
Micro-Pocket holes work great in virtually every application where youd use standard pocket holes, and are especially good for 1/2" (12mm) thick material and narrow stock, down to 1" (25mm) wide. Because the bit removes less material, drill strokes are faster and easier.
Just insert the Micro-Pocket Drill Guide block into your Pocket-Hole Jig 520PRO, then use the Micro-Pocket drill bit to create the compact pocket holes.
For use with 500-Series Pocket-Hole Jigs. Compatible with Kreg pan-head pocket-hole screws.
Compatibility:

Kreg Pocket-Hole Jig 520PRO

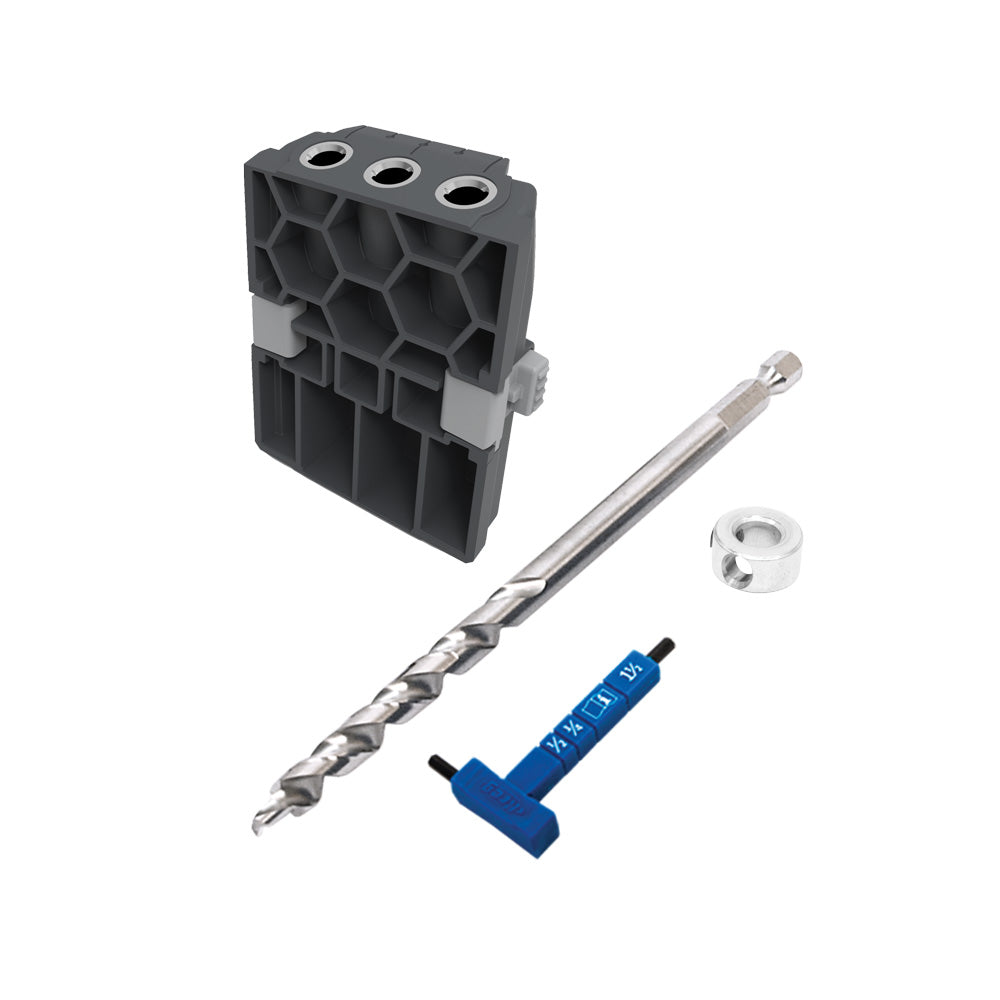

Kreg Micro-Pocket Drill Bit with Stop Collar Hex Wrench

Important notes on working with Kreg Micro-Pocket Drill Guide:
Due to material variations (in particular metric vs imperial sheet goods) it is advisable to double-check all jig settings, stop collar position and screw length selection PRIOR to drilling into your workpiece. Use scrap pieces of the same material and perform test joins to verify a satisfactory Kreg Pocket-Hole join. Manual adjustments can then be made to ensure the drill point does not break through the bottom of the pocket-hole, and that the tip of the screw does not break out through your workpiece. This check is an important step when joining to or thinner material, where the margin for error is very small. Remember that you have three adjustments that can be made to get the perfect Kreg Pocket-Hole joint:
1. Drill bit stop collar position
2. Jig position on the workpiece (which may require thin packing material behind workpiece)
3. Screw length
