Leigh 24" Finger Joint Template - suits D4R & all D Series Jigs

Leigh 24" Finger Joint Template - suits D4R & all D Series Jigs

Product Code:
LGH-F3

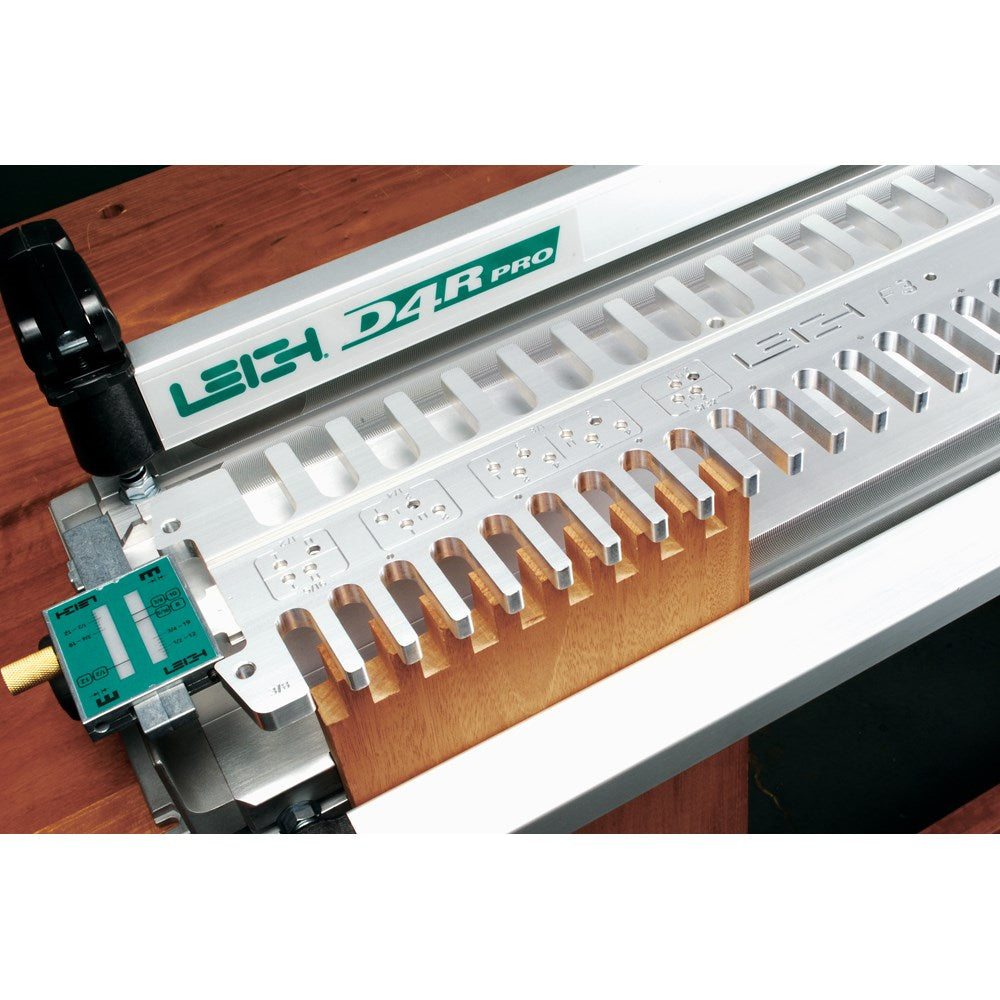

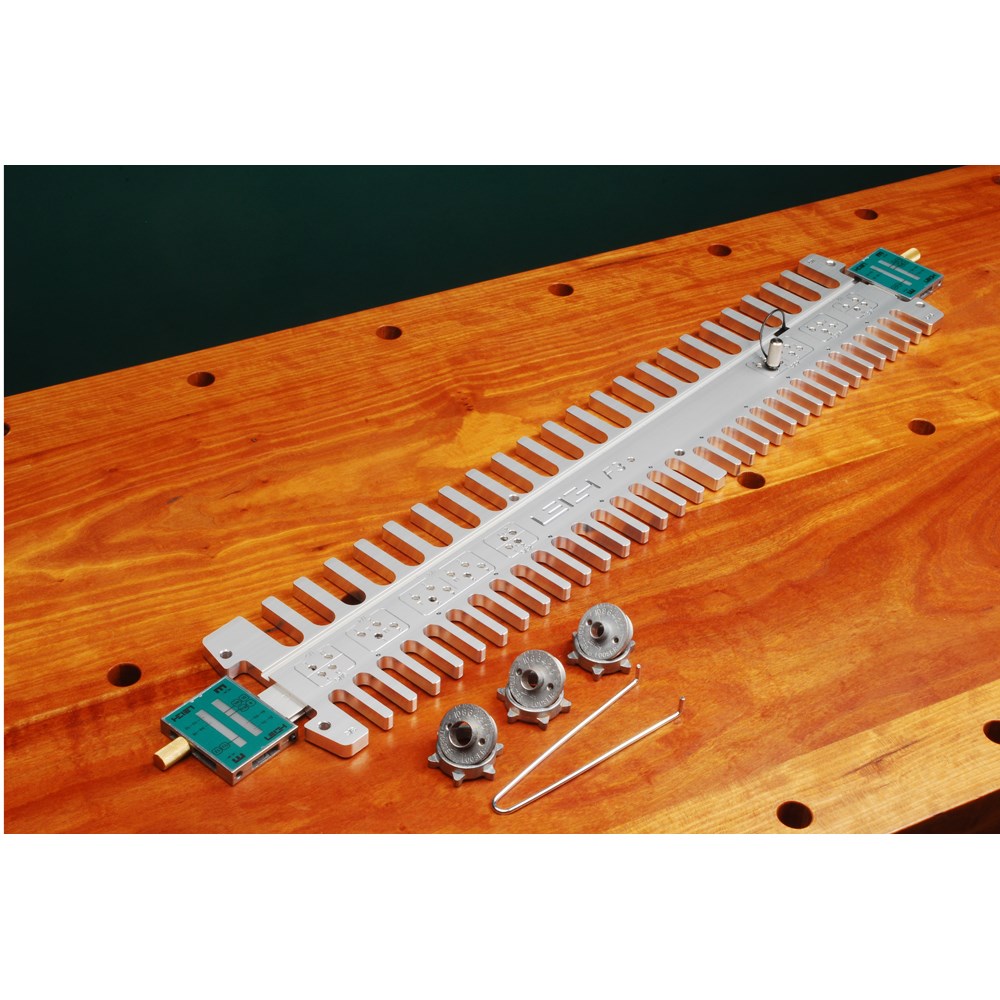

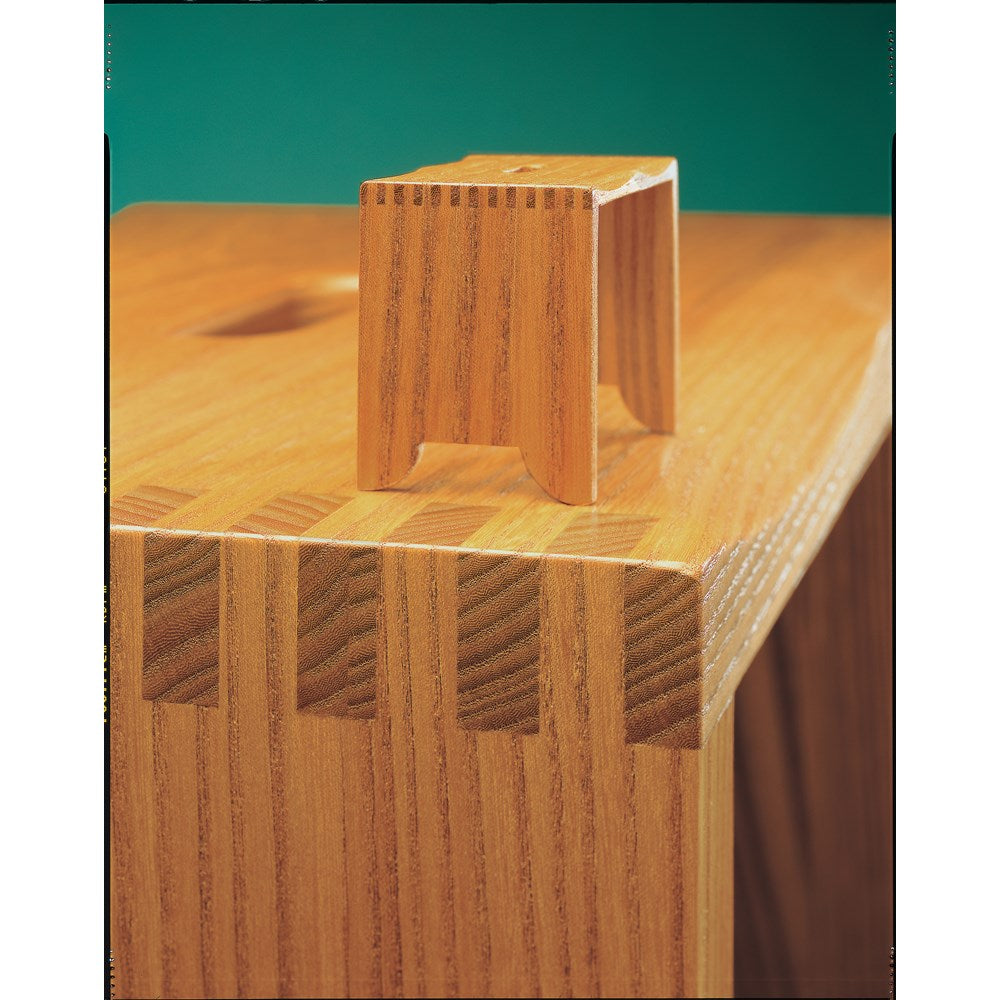

Finger joints; also called box joints; add visually striking symmetrical design to corner assemblies. Unlike dovetails; finger joints do not interlock mechanically but their enormous glue surface area makes them as strong as dovetails throughout the life of today's modern adhesives. Leigh's versatile 24inch F3 Finger Joint Template is the most comprehensive and accurate jig of its kind. The F3 produces 11 sizes of square finger joints from 3/32inch (2.38mm) to 1/2inch (12.7mm) and the F3 can also produce three sizes of square half-blind finger joints.The F3 Template has three comb sizes: 5/16inch (7.9mm); 3/8inch (9.5mm) and 1/2inch (12.7mm). Each comb can produce joints in the comb size and smaller or larger joints. For example; the 5/16inch (7.9mm) comb produces 5/32inch (4mm); 5/16inch (7.9mm) and 5/8inch (15.9mm) joints. Similarly; the 3/8inch (9.5mm) comb produces 3/32inch (2.38mm); 3/16inch (4.8mm); 3/8inch (9.5mm) and 3/4inch (19mm) joints. 1/8inch (3.2mm); 1/4inch (6.35mm); 1/2inch (12.7mm) and 1inch

$409.00
$0.00 $409.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $102.25
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

Finger joints; also called box joints; add visually striking symmetrical design to corner assemblies. Unlike dovetails; finger joints do not interlock mechanically but their enormous glue surface area makes them as strong as dovetails throughout the life of today's modern adhesives. Leigh's versatile 24inch F3 Finger Joint Template is the most comprehensive and accurate jig of its kind. The F3 produces 11 sizes of square finger joints from 3/32inch (2.38mm) to 1/2inch (12.7mm) and the F3 can also produce three sizes of square half-blind finger joints.The F3 Template has three comb sizes: 5/16inch (7.9mm); 3/8inch (9.5mm) and 1/2inch (12.7mm). Each comb can produce joints in the comb size and smaller or larger joints. For example; the 5/16inch (7.9mm) comb produces 5/32inch (4mm); 5/16inch (7.9mm) and 5/8inch (15.9mm) joints. Similarly; the 3/8inch (9.5mm) comb produces 3/32inch (2.38mm); 3/16inch (4.8mm); 3/8inch (9.5mm) and 3/4inch (19mm) joints. 1/8inch (3.2mm); 1/4inch (6.35mm); 1/2inch (12.7mm) and 1inch
