Veritas 17-1/2" Long Planing Stop

Veritas 17-1/2" Long Planing Stop

Product Code:
05G23-05

These low-profile work stops present a broad bearing surface for your workpiece. Particularly useful with thin or narrow stock, each ~32mm (1-1/4") wide anodized aluminum rail projects just ~5.5mm (0.22") above the bench top, allowing materials as thin as 6.35mm (1/4") to be worked or planed without obstruction. It also provides a reliable registration surface for materials too narrow to span two adjacent bench dogs.

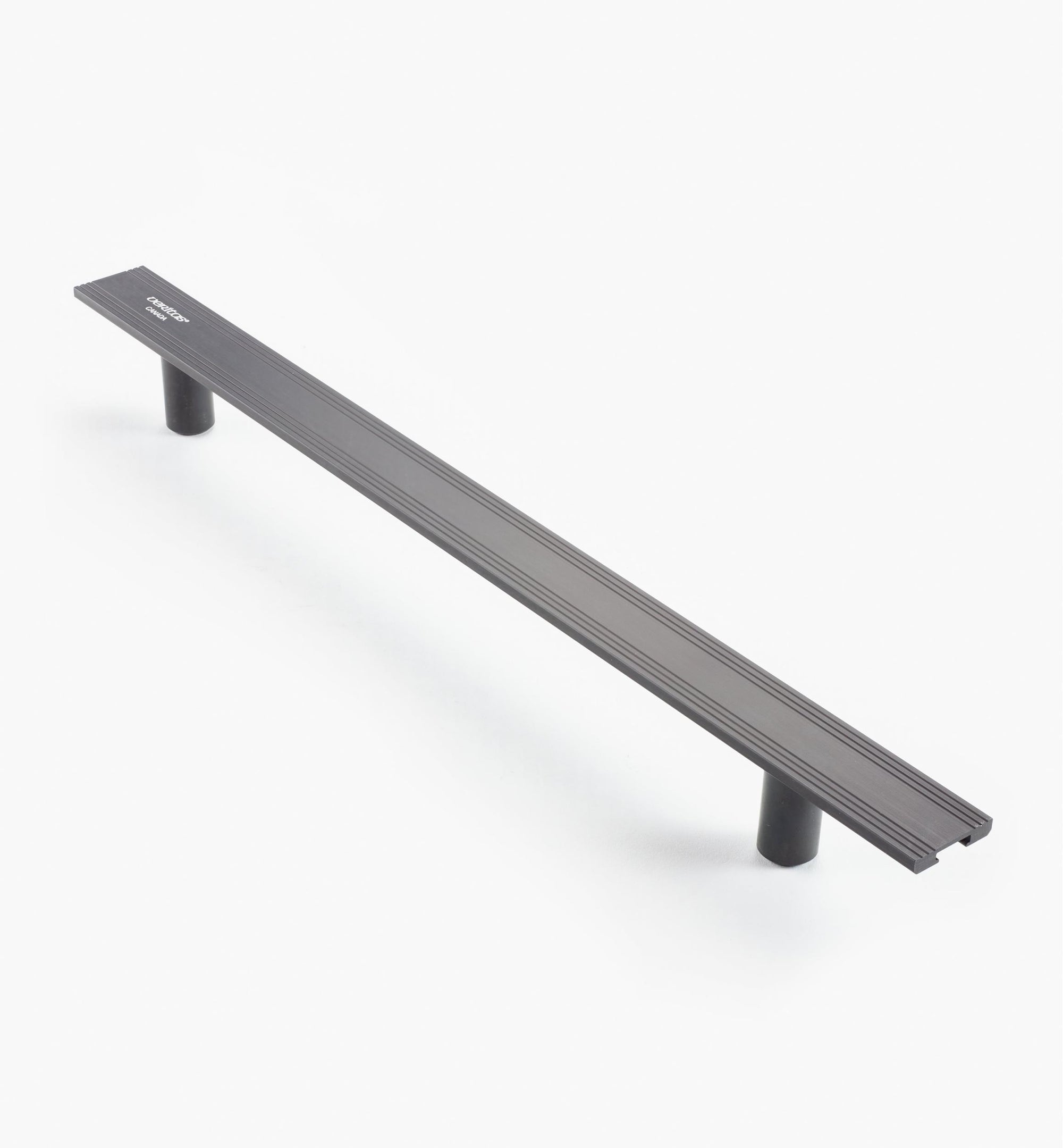

The two steel posts slide along a T-track on the underside of the rail and fit 19mm (3/4") diameter dog holes. Different sizes are available - this listing is for a single 444mm (17-1/2") Planing Stop of which, the posts can be spaced a maximum of 425mm (16-3/4") apart.

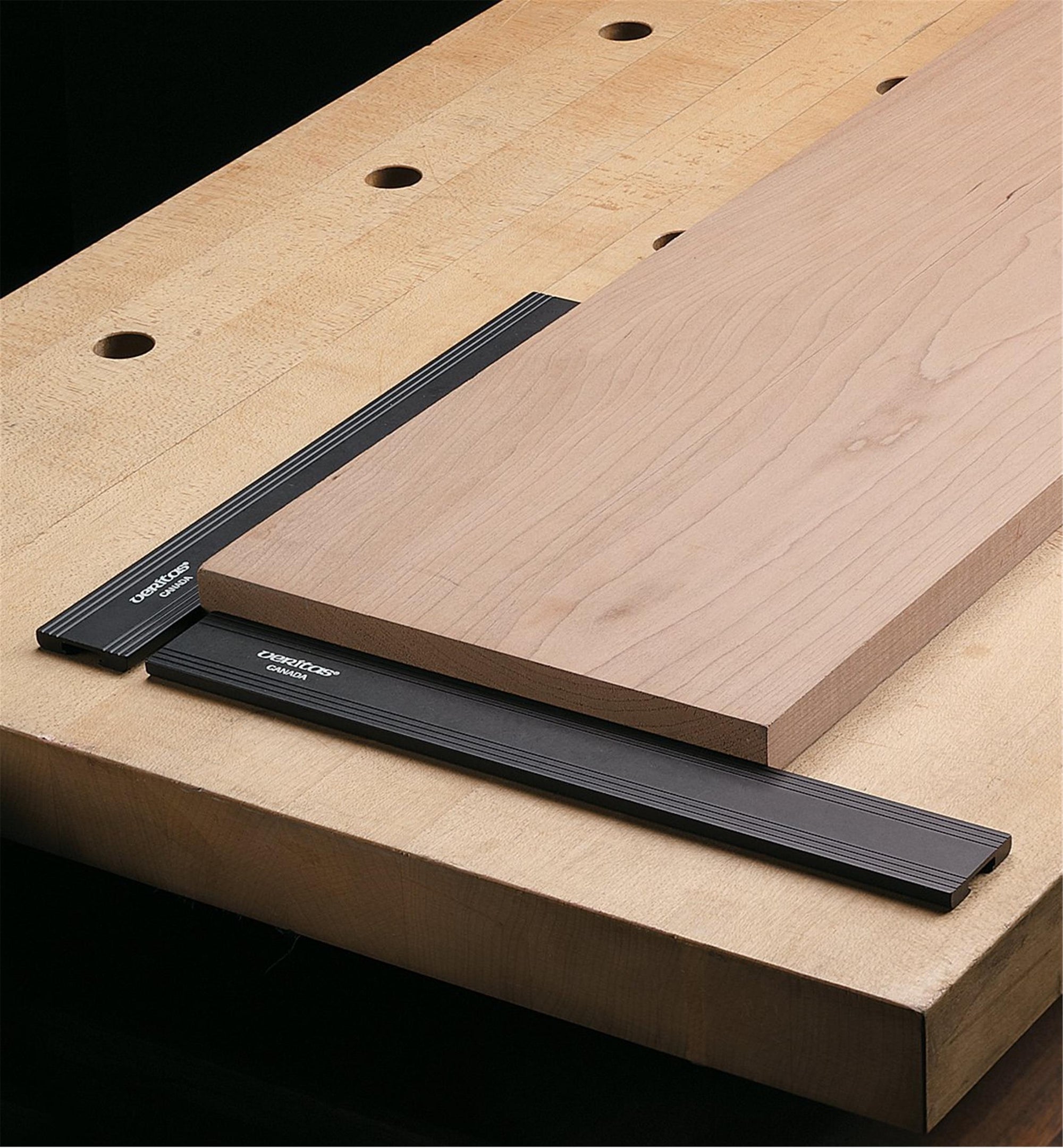

For tasks that involve the application of horizontal force in one direction, such as planing, a single stop can be used with no additional clamping. Stops can also be placed perpendicular to one another to capture two edges of the workpiece to prevent rotation, as illustrated. A simple way to secure work without the constraints of typical clamping methods.
Made in Canada.

$71.00
$0.00 $71.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $17.75
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

These low-profile work stops present a broad bearing surface for your workpiece. Particularly useful with thin or narrow stock, each ~32mm (1-1/4") wide anodized aluminum rail projects just ~5.5mm (0.22") above the bench top, allowing materials as thin as 6.35mm (1/4") to be worked or planed without obstruction. It also provides a reliable registration surface for materials too narrow to span two adjacent bench dogs.
The two steel posts slide along a T-track on the underside of the rail and fit 19mm (3/4") diameter dog holes. Different sizes are available - this listing is for a single 444mm (17-1/2") Planing Stop of which, the posts can be spaced a maximum of 425mm (16-3/4") apart.
For tasks that involve the application of horizontal force in one direction, such as planing, a single stop can be used with no additional clamping. Stops can also be placed perpendicular to one another to capture two edges of the workpiece to prevent rotation, as illustrated. A simple way to secure work without the constraints of typical clamping methods.
Made in Canada.

Additional information
1 spec...
Length
444 mm (17-1/2")
