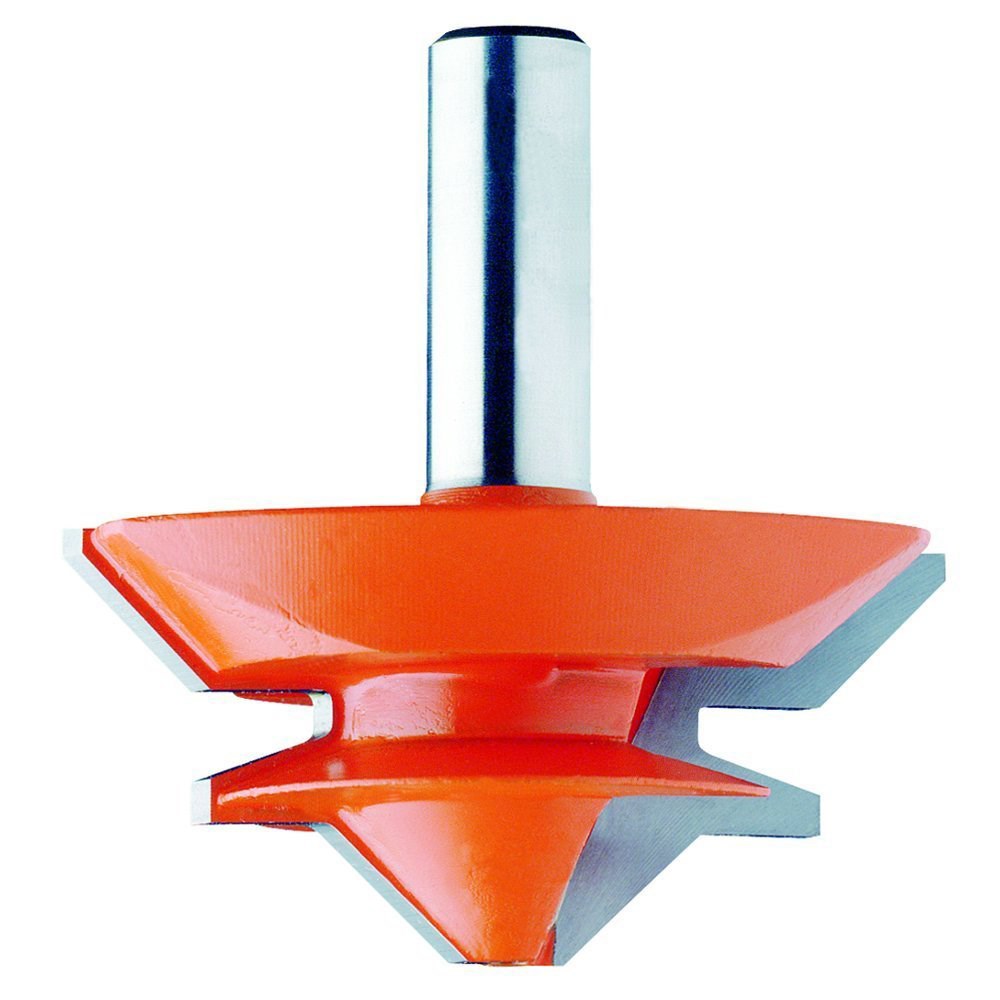

CMT Mini Lock Mitre 50mm d 1/2"S

CMT Mini Lock Mitre 50mm d 1/2"S

Product Code:
855-504-11

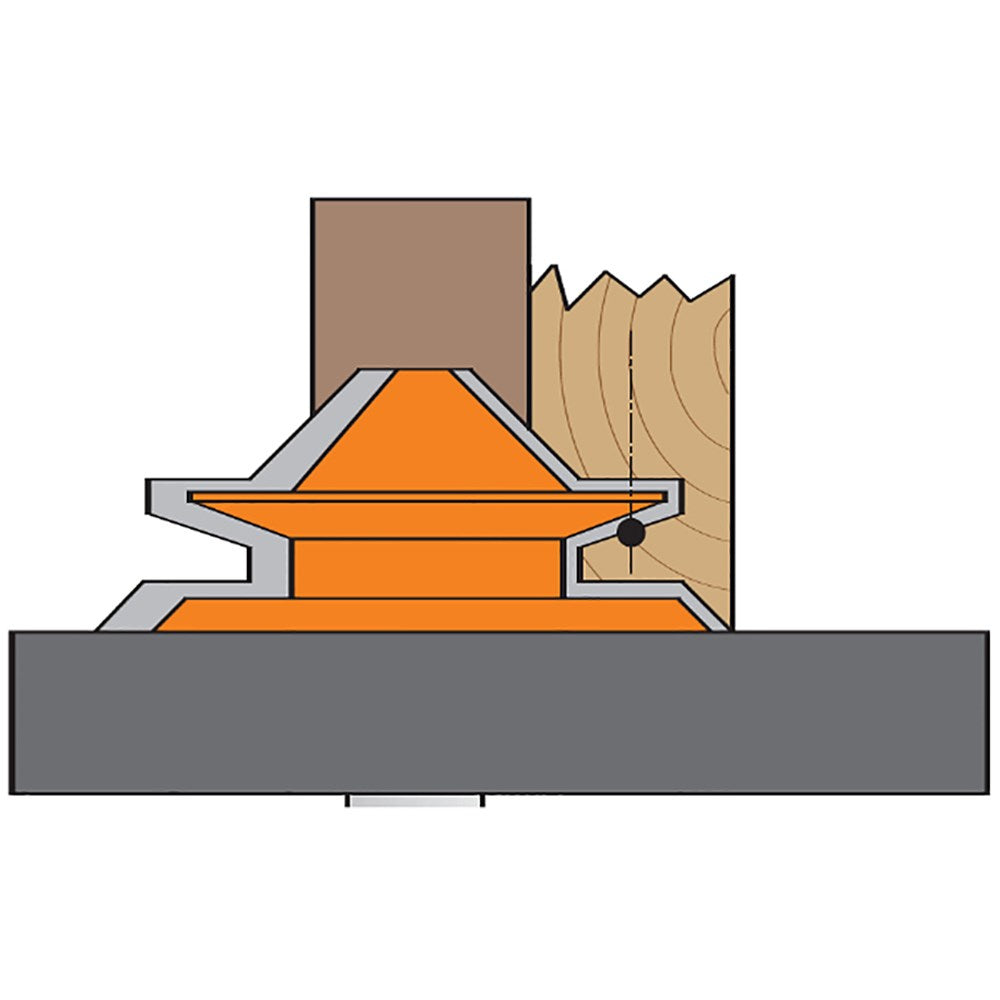

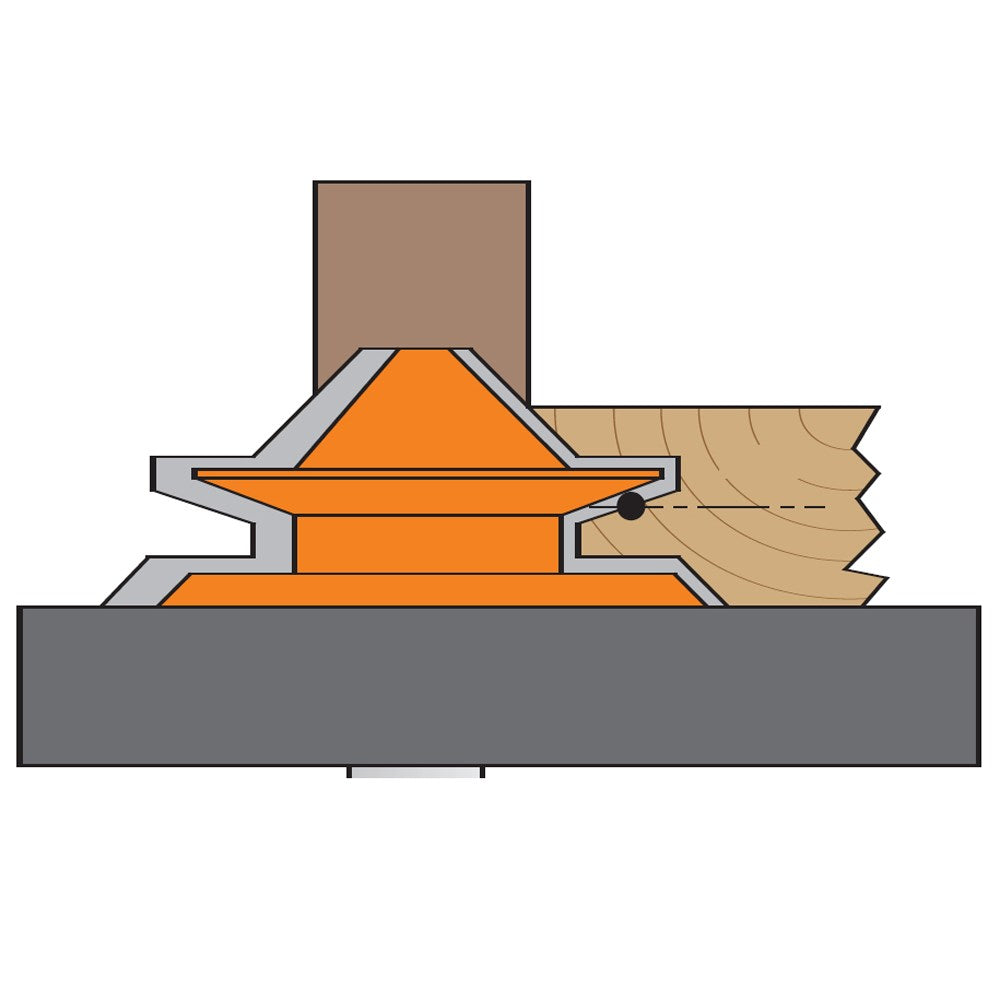

The lock mitre bit is a great bit for creating panels or 90 corners, as it creates more glue surfaces. A perfect mitre joint can be achieved, with the extra mechanical strength of the joint, and extra glue surfaces. It requires both pieces to be the same thickness, and the use of feather boards is recommended. Routing 90 corners requires the inside face to be against the table or fence, with the centre of the bit protruding 1/2 way up from the table and from the fence, as seen in the images. Routing panels requires one panel to be routed face up, and the next to be routed with the face down, to create the matching joint. This bit will join material from 9.5mm to 18mm.

$119.00
$0.00 $119.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $29.75
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

Mitre joints or panels made easily.The added benefit of a mechanical joint, offering extra glue surfaces. The 1/2" shanks provides the required strength for a bit of this size and diameter.

Additional information
5 specs...
Bit Cut Angle
45°
Bit Cut Depth
19 mm
Bit Cut Diameter
50.8 mm (2")
Bit Cut Length
22.22 mm (7/8")
Bit Shank Size
1/2"
