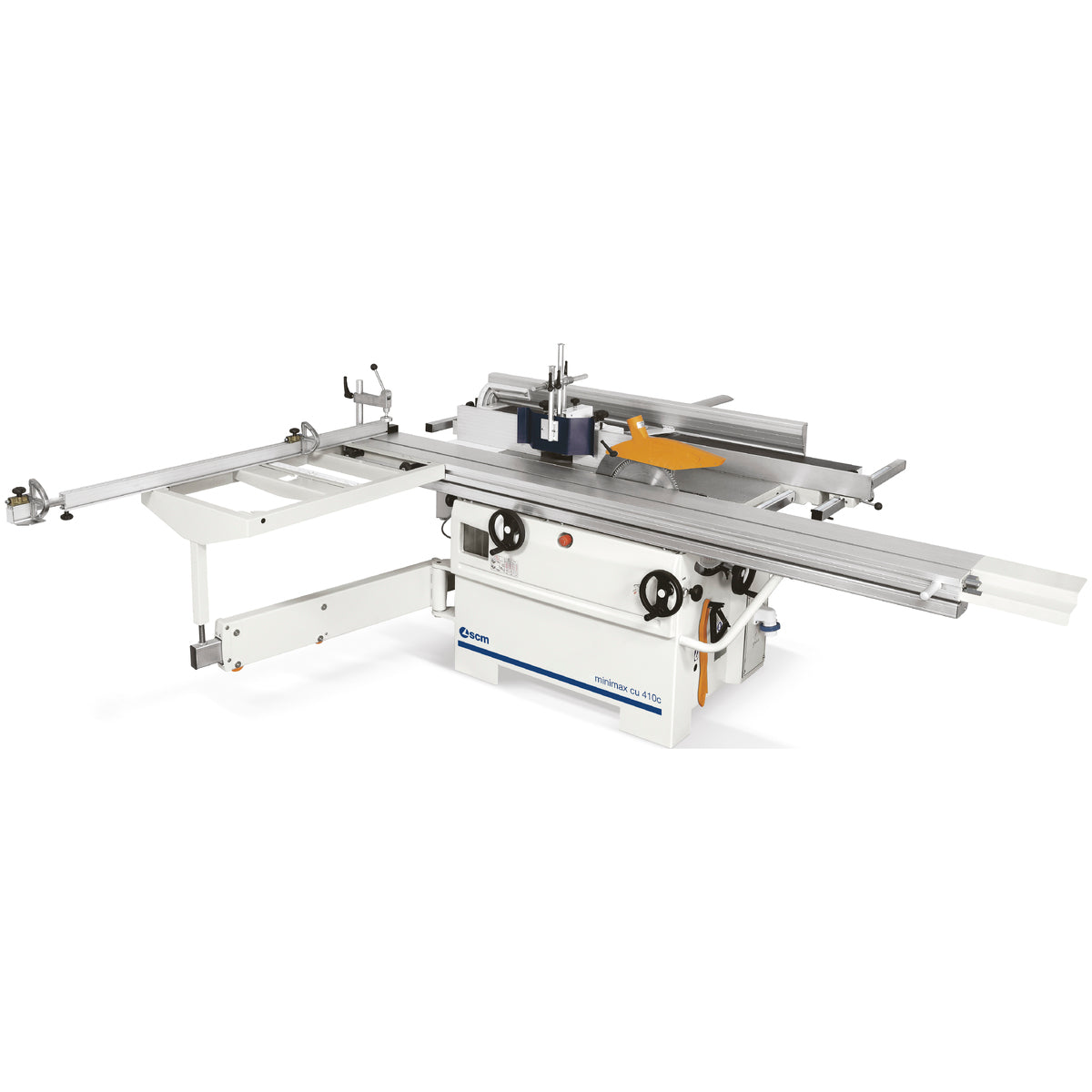

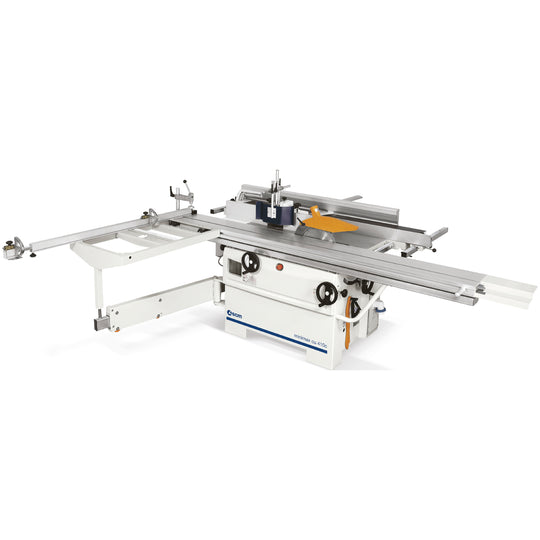

SCM Minimax CU410C26X Combination Machine - Three Phase

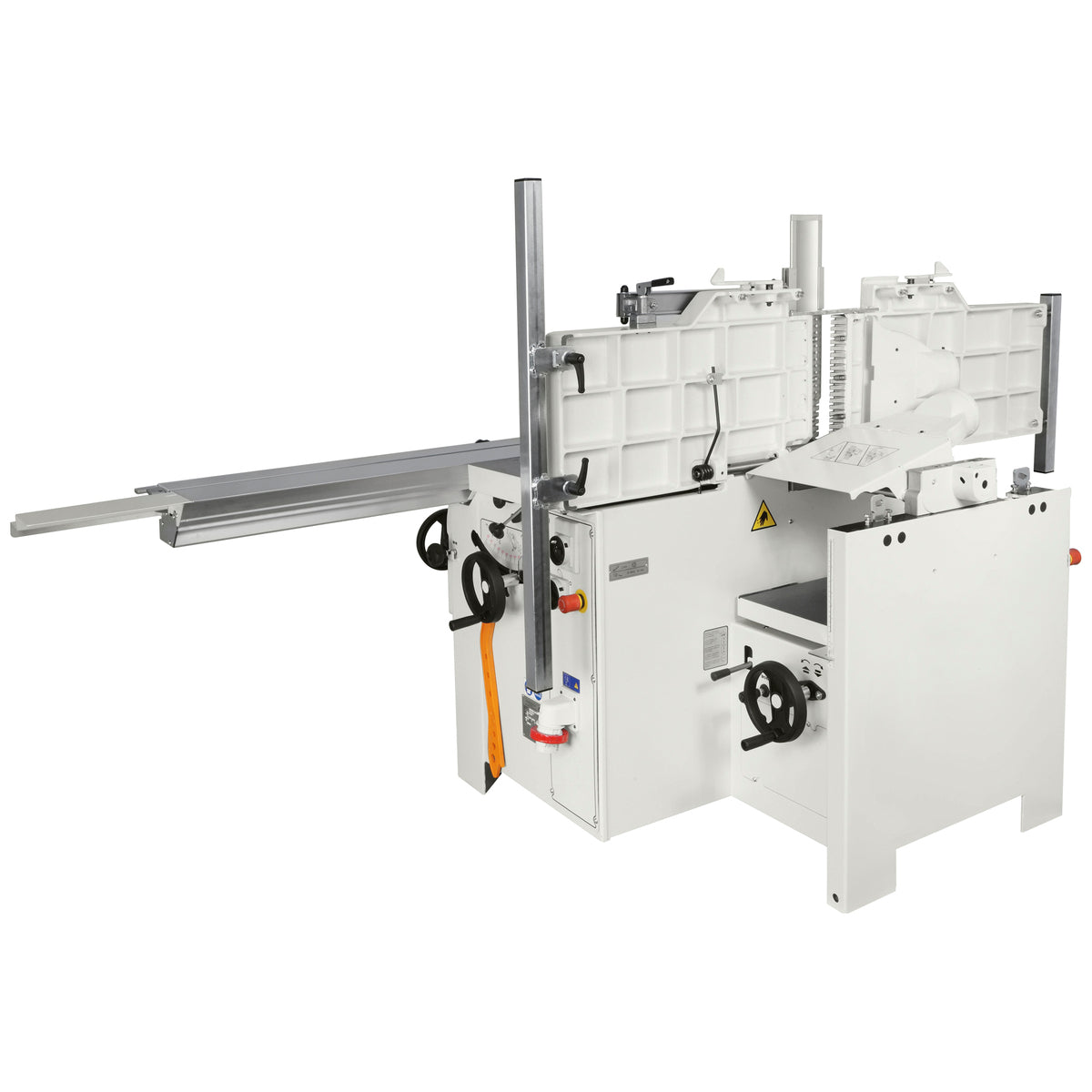

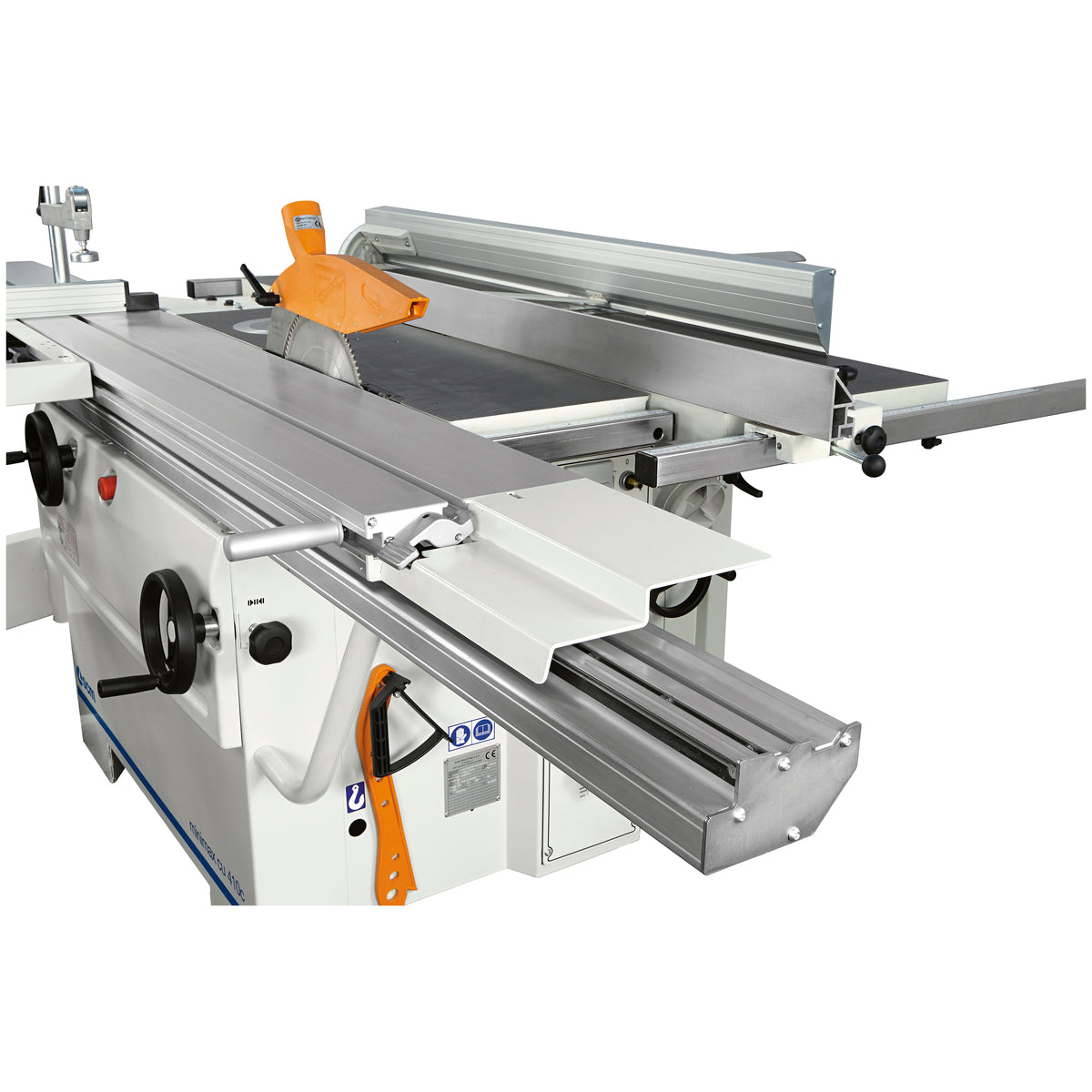

Introducing the latest addition to the Classic series of combination machines, the minimax cu 410c. With all the exceptional features of the CU300 Classic series, this machine takes it a step further with an upgraded surfacer/thicknesser boasting a 410mm width capacity. As a genuine European combination machine, it offers an array of impressive components including a 2600mm sliding table saw with a scorer, a spindle moulder with three speeds, a 410mm wide surfacer accompanied by an oversized working fence, and a 410mm thicknesser. Performance without limits: Incredible cutting of both very thick solid wood and panels, even those veneered, thanks to the new saw unit with a blade that has a maximum diameter of 315 mm that grants a 100 mm cutting height with the scoring blade installed. Professional and very sturdy: The unit has a cast iron structure. It is closed off by a cast iron cup to protect mechanical components inside the machine from sawdust, shavings and dirt. Precise and safe machining with the spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers. Optimal planing: The planer unit in the standard version has a 72 mm diameter cutter block with 3 knives. For an impeccable result, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed. In contrast, the sandblasted steel outfeed roller maintains the perfect post-machining finish. Exceptional accessibility: Thicknessing is more comfortable: during the changeover from surfacing to thicknessing the surfacing tables open towards the inside of the machine, with a 90 angle, and simultaneously. Work pieces with a maximum height of 230 mm can be machined to the thicknesser. The new design of the dust conveyor, protecting the cutter block, is specifically intended to further increase system safety and efficiency.
