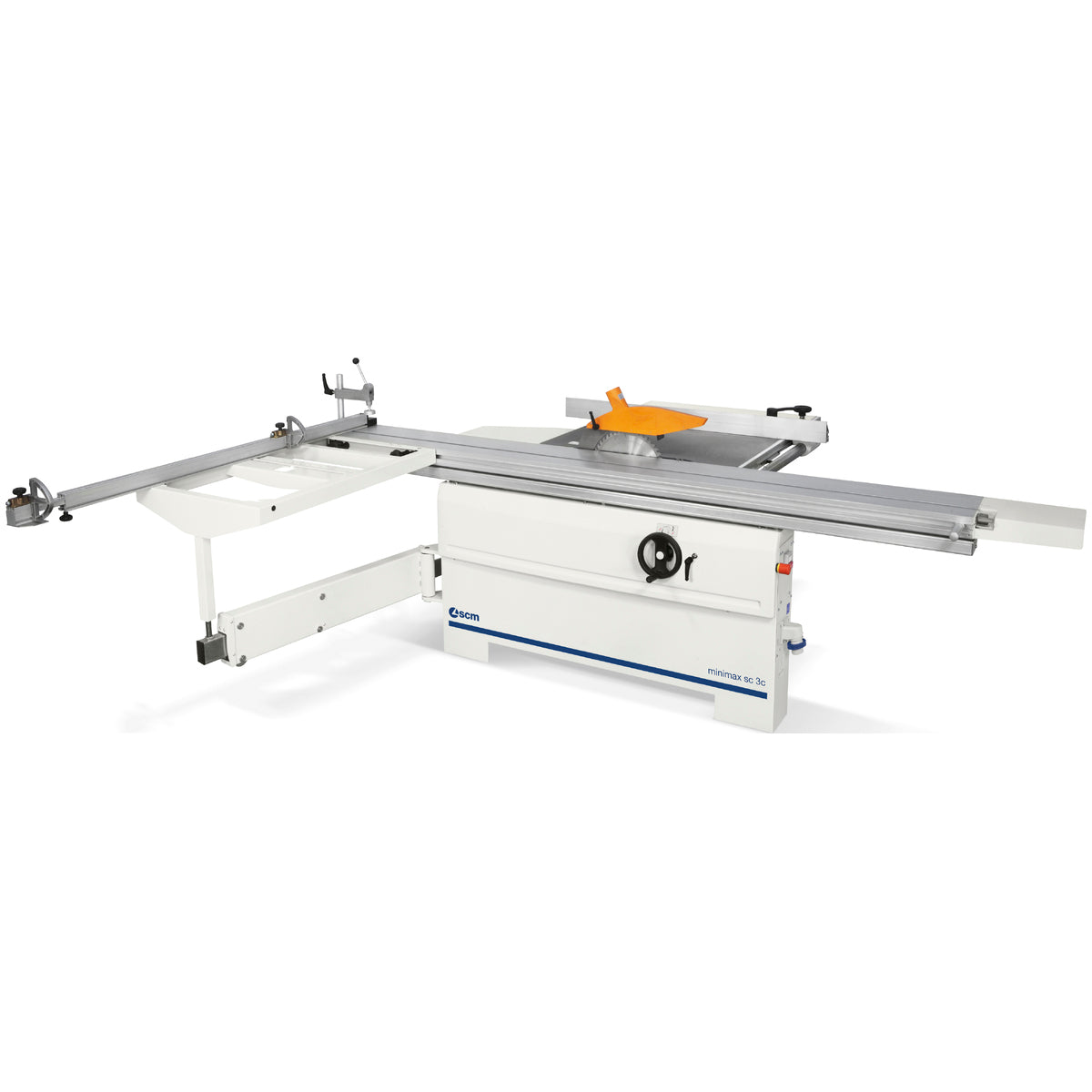

SCM Minimax SC3C1 Panel Saw - Three phase

SCM Minimax SC3C1 Panel Saw - Three phase

Product Code:
SCM-SC3C

The minimax sc 3 classic, the most compact sliding table saw for handling full-sized sheets. With a 2660mm sliding table stroke, it easily rips down 2400mm lengths, maximizing panel yield. Ideal for faced boards, it features a large crosscut fence, flip-over stops, and an oversized outrigger support table. With an aluminum sliding table, 300mm blade capacity, and scoring saw, it delivers precise performance. The 900mm ripping capacity and scratch-free operation make it a reliable choice.

Performance without limitsIncredible cutting of both very thick solid wood and panels, even those veneered, thanks to the new saw unit with a blade that has a maximum diameter of 315 mm that grants a 100 mm cutting height with the scoring blade installed.

Precision, guaranteedEasier and more precise cutting is possible due to a perfectly stable support that is guaranteed, even for large work pieces, the wide sliding table and the large squaring frame fence provided as standard. Top quality precision, smooth and silent action, self-cleaning dustproof system, long lasting accuracy, no adjustment required.

The tableThe table is made of extruded anodized aluminium with a closed honeycomb structure. The sliding table runs on an exclusive slideway system consisting of calibrated and hardened F550 SX steel guides.

$11,709.00
$0.00 $11,709.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $2,927.25
Special Order item. A Carbatec representative will contact you to confirm delivery lead times.
All woodworking machines require effective dust extraction to ensure quality work and longevity of the machine itself. Failure to connect your machine to a suitable dust collector may affect your warranty.
Please note: Bulky items are not eligible for free shipping. Delivery costs for these products will vary depending on the size of the item and the delivery location. Shipping will be calculated and confirmed during the checkout process.
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

• High effective saw unit exhaust hood: the emission level is 90% lower with respect to the maximum level allowed by the European safety regulations!
• Sliding carriage ensures top quality precision, smooth and silent action, self-cleaning dustproof system, long lasting accuracy, no adjustments required. The sliding carriage is equipped with an additional table for the support of large dimensioned panels.

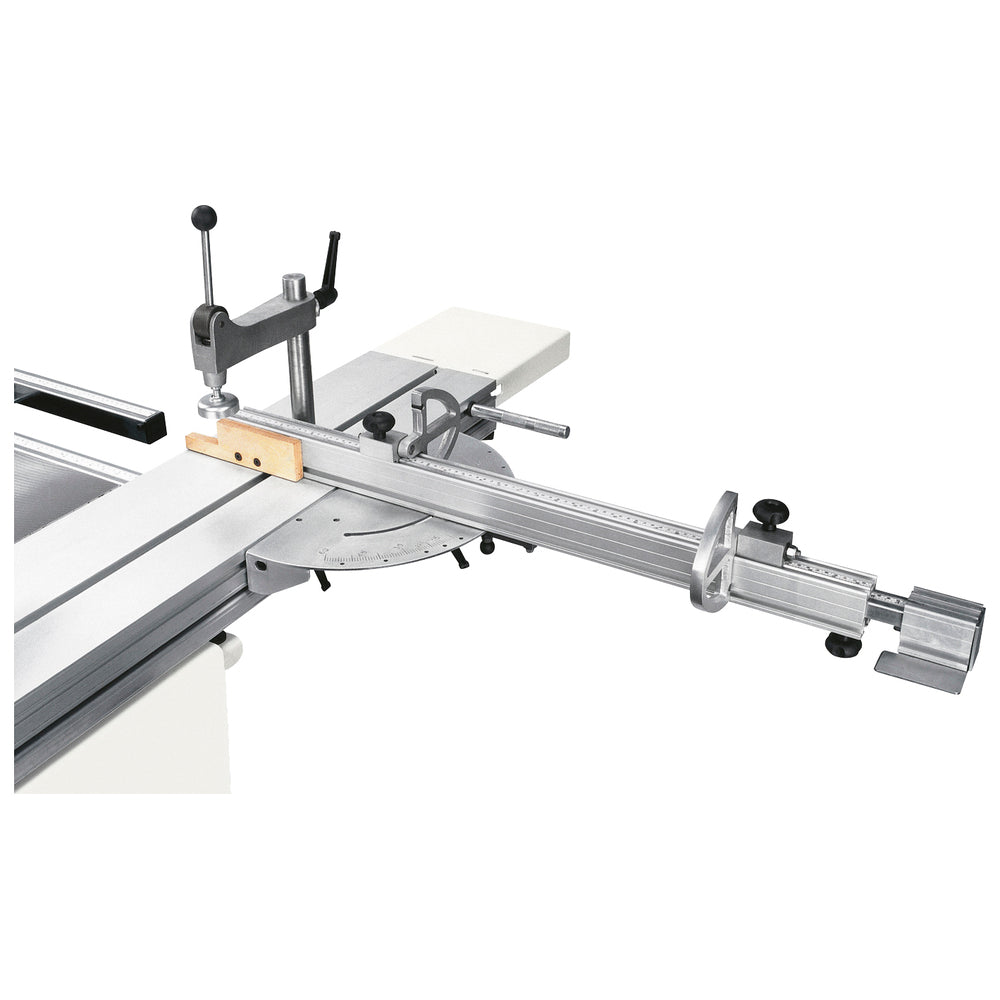

• The telescopic squaring rule is equipped with 2 flip-over stops which allow to have precise references that can be used for both profiles.
• The angular cutting device with flip-over stops allows to rapidly perform mitre cuts without moving the squaring fence and it is very useful for small work pieces

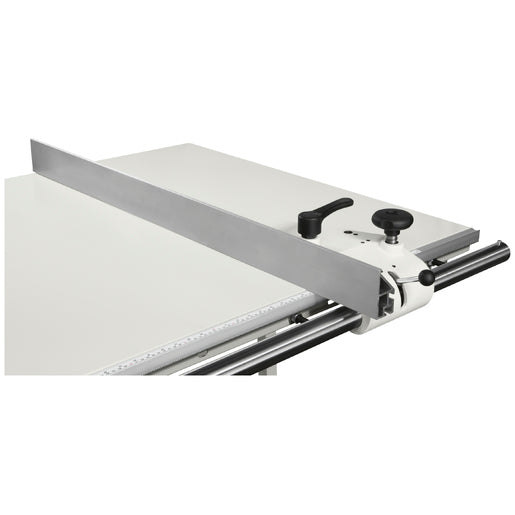

• Absolute precision and rapid positioning of the parallel fence which slides on a ground steel round bar
• Extruded aluminum fences with support and rapid locking guarantee maximum practicality.
