Veritas Panel Clamp Set

Veritas Panel Clamp Set

Product Code:
05G16-01

Bowed panels can be a thing of the past. This Veritas product is the most effective panel clamp available. It is easy to use; tightens by hand; and is stackable for production work. Best of all; you can make double clamp bars of any length to suit your own needs.

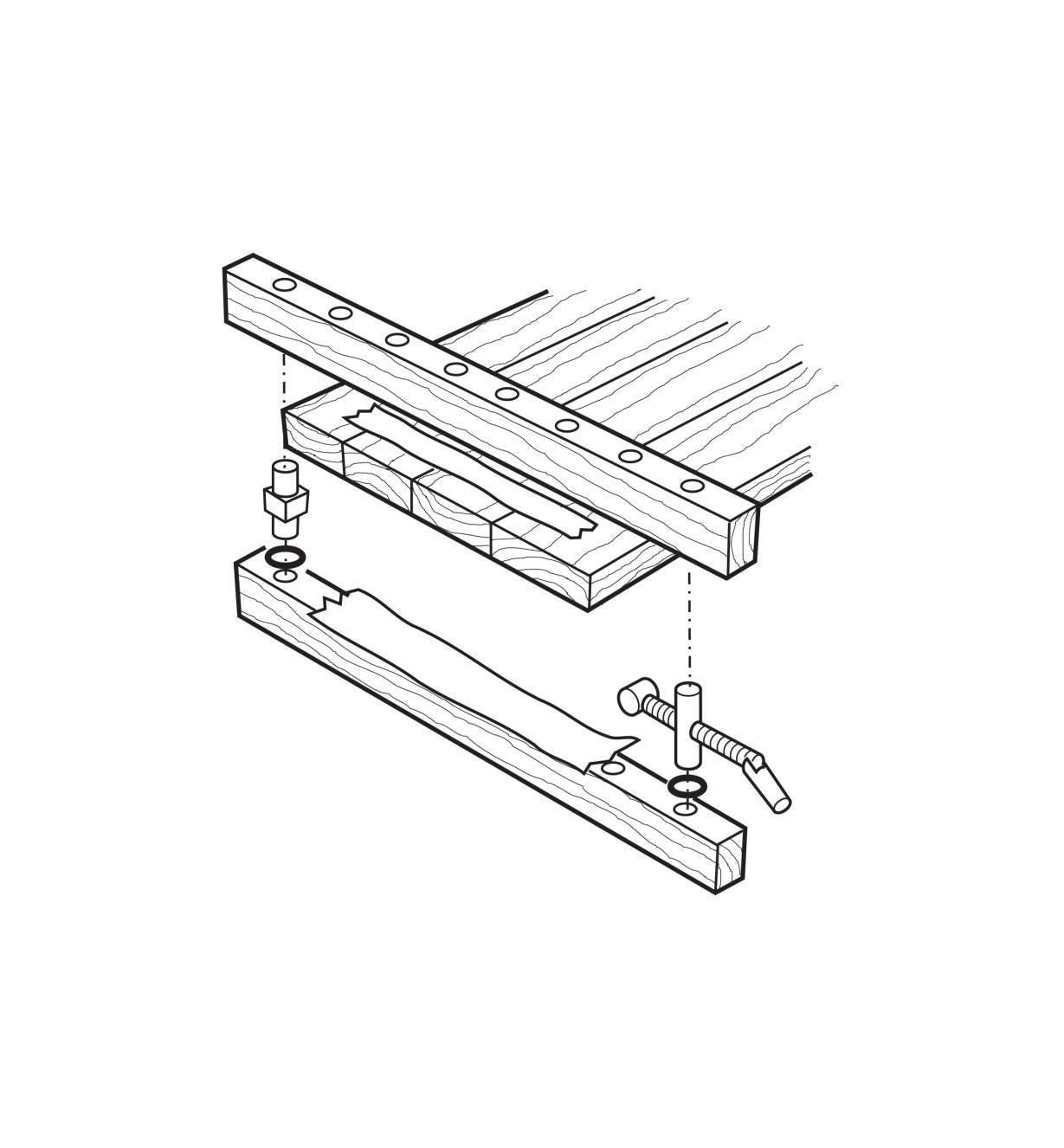

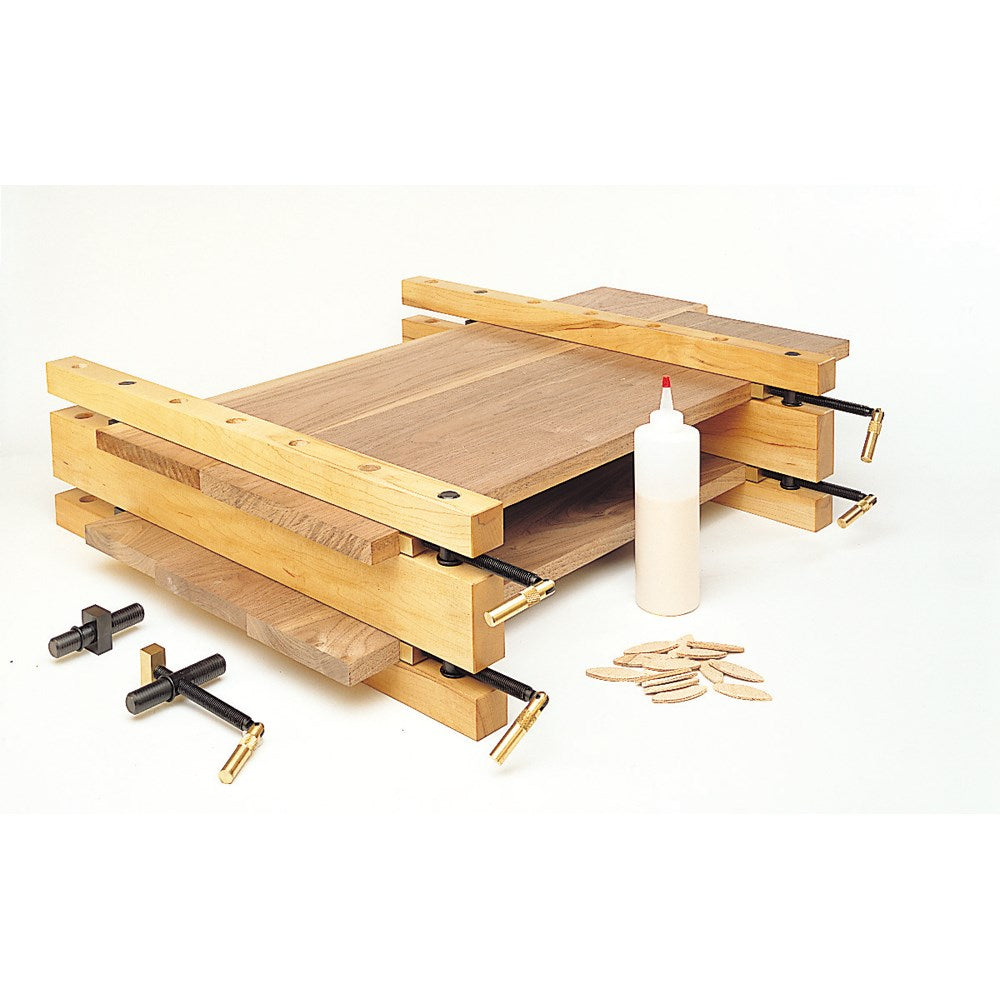

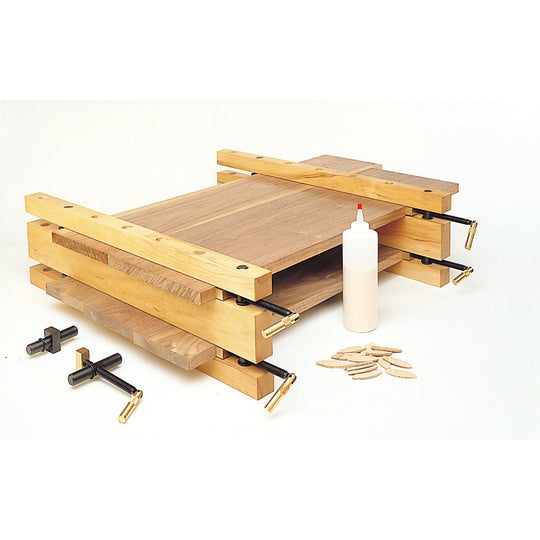

The specially serrated posts grip the bars; keeping a panel flat under any pressure load without allowing the bars to lift. Bars can be made by drilling 3/4inch diameter holes in straight stock. 2 x 2s are fine; but 2 x 4s let you stack panels; since there is room for the top of one post and the bottom of another in the same hole.Adjustable O-rings on the posts let you clamp anything from 5/8inch (16mm) to 2inch (50mm) thick without any shimming; the clamp pads can be set dead center on the stock. The secret to the system is the balanced tension exerted on the bars. The greater the pressure; the more rigid the bars become. The screw has 5inch (125mm) of travel.

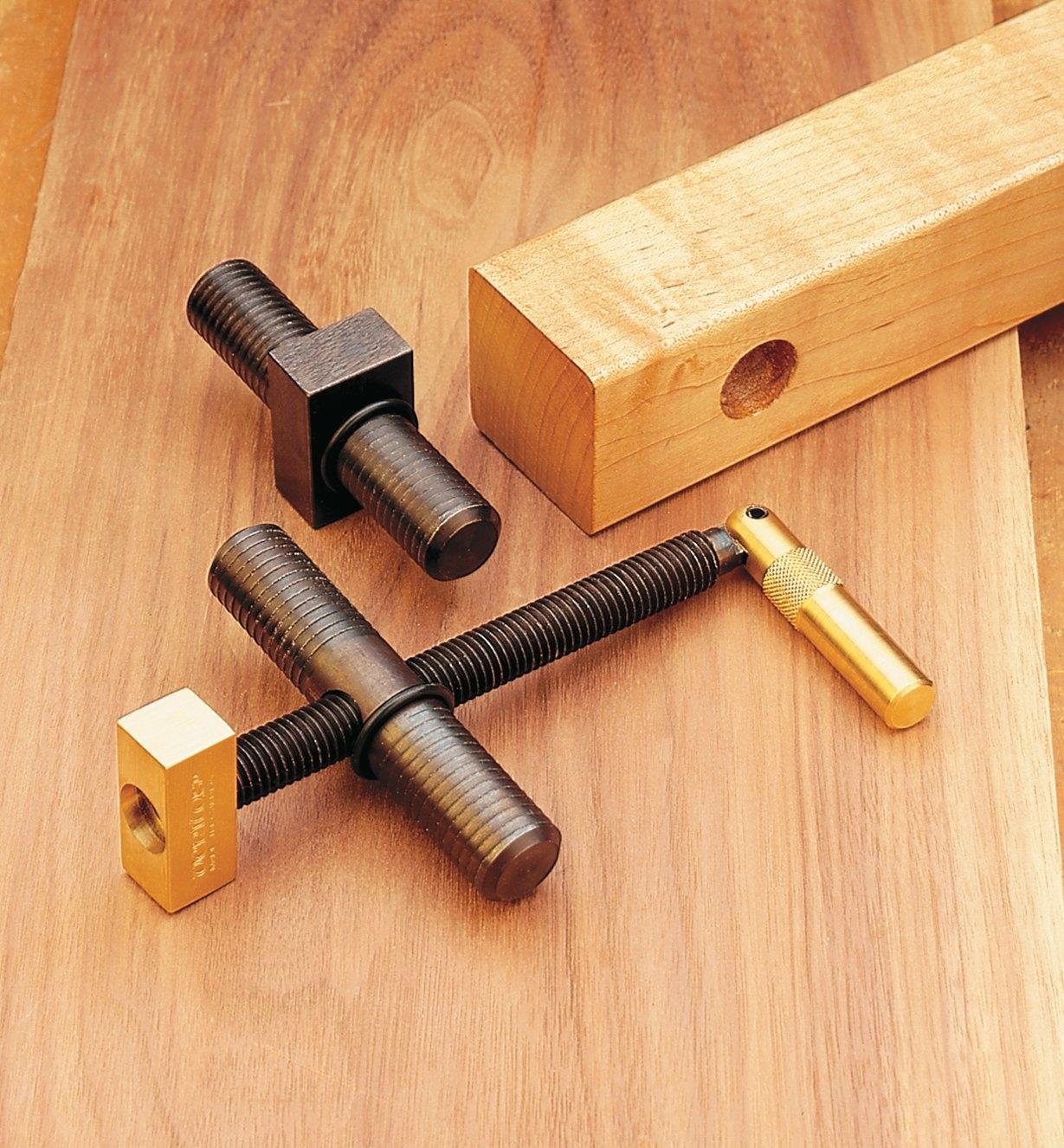

The panel clamp set; with one head and one tail; does not include the wood.
Made in Canada.

$118.00
$0.00 $118.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $29.50
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

Bowed panels can be a thing of the past. This Veritas product is the most effective panel clamp available. It is easy to use; tightens by hand; and is stackable for production work. Best of all; you can make double clamp bars of any length to suit your own needs.
The specially serrated posts grip the bars; keeping a panel flat under any pressure load without allowing the bars to lift. Bars can be made by drilling 3/4inch diameter holes in straight stock. 2 x 2s are fine; but 2 x 4s let you stack panels; since there is room for the top of one post and the bottom of another in the same hole.Adjustable O-rings on the posts let you clamp anything from 5/8inch (16mm) to 2inch (50mm) thick without any shimming; the clamp pads can be set dead center on the stock. The secret to the system is the balanced tension exerted on the bars. The greater the pressure; the more rigid the bars become. The screw has 5inch (125mm) of travel.
The panel clamp set; with one head and one tail; does not include the wood.
Made in Canada.
