Veritas 9-3/4" Planing Stop

Veritas 9-3/4" Planing Stop

Product Code:
05G23-01

This work stop acts much like a bench dog, but with a lower profile and a much wider bearing surface.Particularly useful with thin or narrow workpieces; the ~32mm (1-1/4") wide anodized aluminium rail projects just 5.5mm (0.22") above the benchtop; allowing materials as thin as 6.35 (1/4") to be worked or planed without obstruction. It also provides a reliable registration surface for materials too narrow to span two adjacent bench dogs.

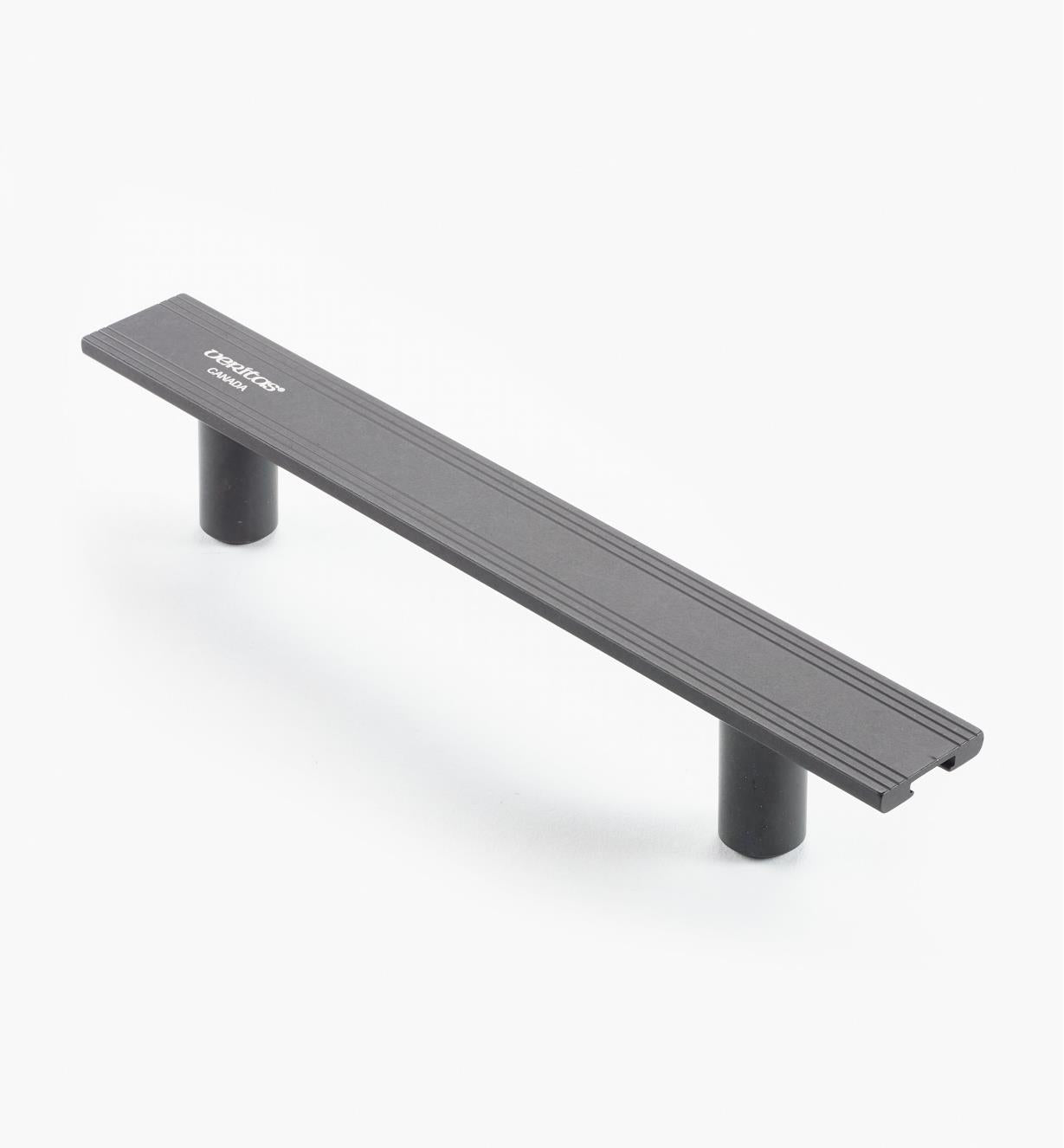

This listing is for a single ~247mm (9-3/4") long planing stop. The two steel posts; sized to fit 19mm (3/4") dog holes; slide along a T-track on the underside of the rail and can be spaced up to 228mm (9") apart (center to center). We also offer a 444mm (17-1/2") Planing Stop, available seperately.

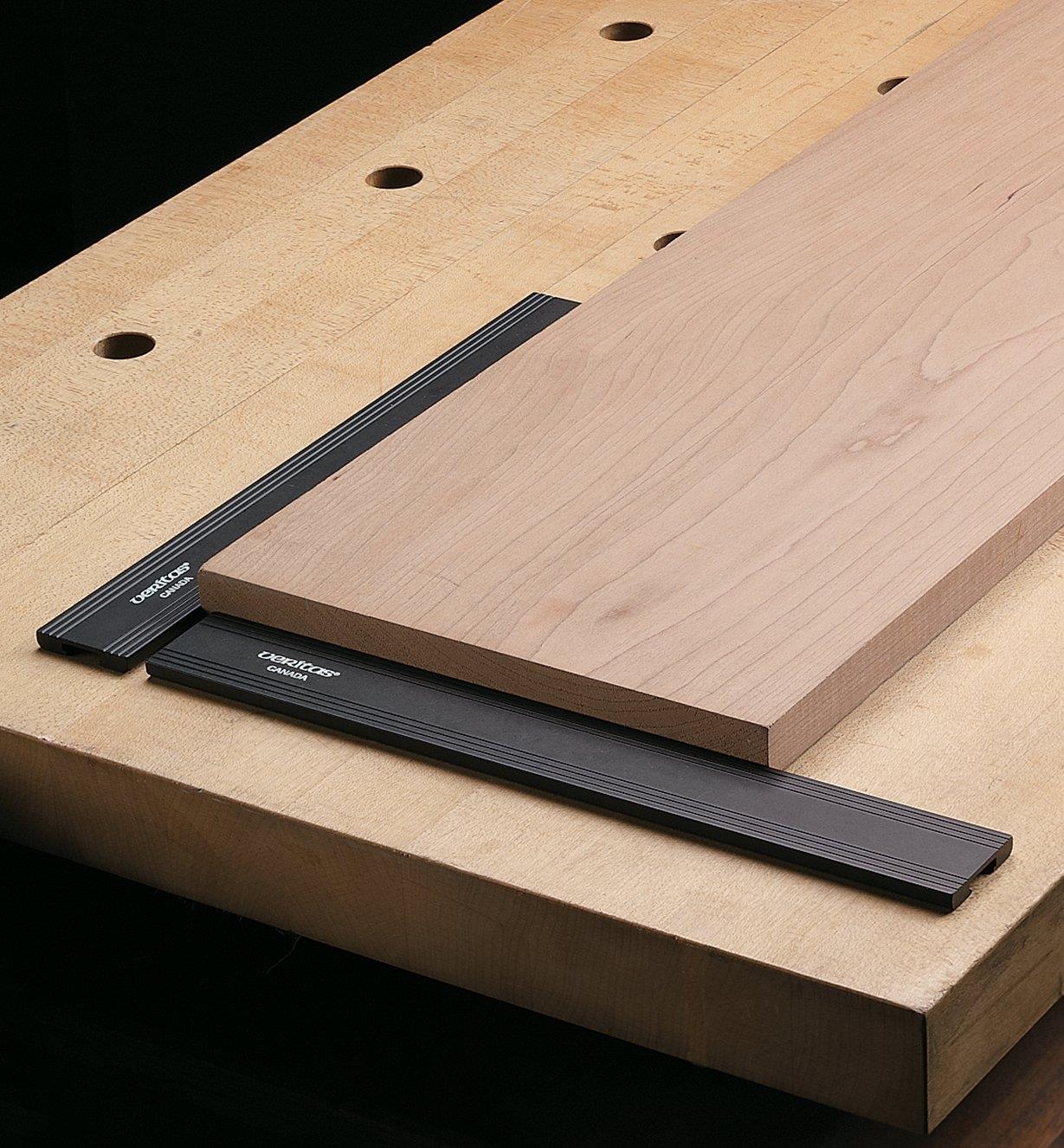

For tasks that involve the application of horizontal force in one direction; such as planing; a single stop can be used with no additional clamping. Stops can also be placed perpendicular to one another to capture two edges of the workpiece to prevent rotation; useful when working with a larger workpiece or for cross-grain planing. A simple way to secure work without the constraints of typical clamping methods.
Made in Canada.

$59.00
$0.00 $59.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $14.75
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

This work stop acts much like a bench dog, but with a lower profile and a much wider bearing surface.Particularly useful with thin or narrow workpieces; the ~32mm (1-1/4") wide anodized aluminium rail projects just 5.5mm (0.22") above the benchtop; allowing materials as thin as 6.35 (1/4") to be worked or planed without obstruction. It also provides a reliable registration surface for materials too narrow to span two adjacent bench dogs.
This listing is for a single ~247mm (9-3/4") long planing stop. The two steel posts; sized to fit 19mm (3/4") dog holes; slide along a T-track on the underside of the rail and can be spaced up to 228mm (9") apart (center to center). We also offer a 444mm (17-1/2") Planing Stop, available seperately.
For tasks that involve the application of horizontal force in one direction; such as planing; a single stop can be used with no additional clamping. Stops can also be placed perpendicular to one another to capture two edges of the workpiece to prevent rotation; useful when working with a larger workpiece or for cross-grain planing. A simple way to secure work without the constraints of typical clamping methods.
Made in Canada.
