Rockler I-Semble Light-Duty Blind Shelf Supports

Rockler I-Semble Light-Duty Blind Shelf Supports

Product Code:
RK-58646

Get that truly modern look with your own floating shelves. Made from sturdy steel, they have a load rating of 22kg per pair, across a recommended minimum span or 457mm (18"), and up to 860mm (34"). For longer spans, simply add more brackets.
Height adjustment slots let you level the shelf if your initial holes are slightly offRequired drill bits: 31/64" (12.3mm)
Whats Included:

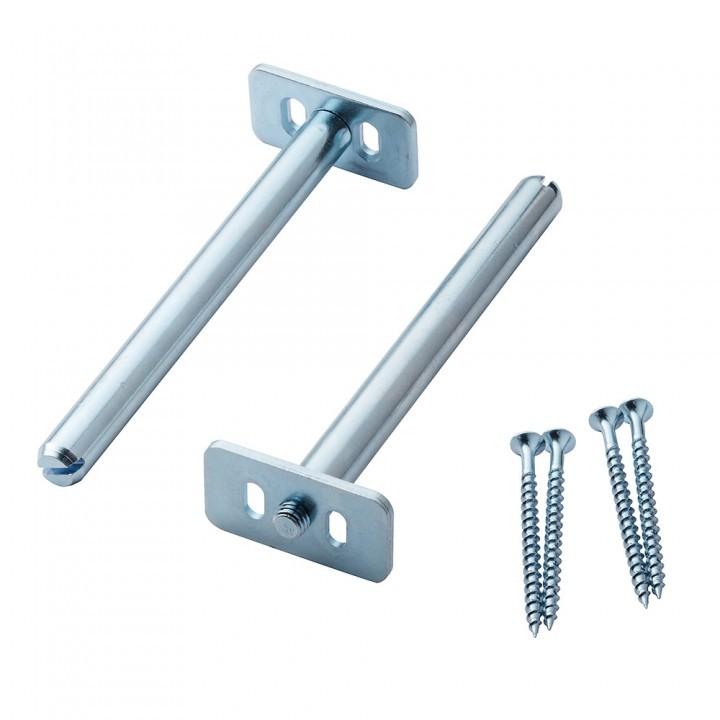

2 x I-Semble Light-Duty Blind Shelf Supports
All hardware is provided, including mounting screws - you provide the wall space and the shelf

Technical Data:

Support Arm Projection: 127mm
Support Arm Diameter: 1/2'' (12mm) nominal
Wall Bracket Dimensions: 24mm H x 44mm L x 3mm T
Minimum Shelf Thickness: 28.5mm (to entirely conceal the hardware)
Maximum Shelf Thickness: 31.75mm (shelf may be thicker, but thicker shelves will reduce weight capacity)
Minimum Shelf Length: 457mm (to span two studs)
Minimum Shelf Projection: 140mm (supports may be cut for shallower shelves)
Maximum Shelf Length: 860mm (for two supports; additional supports can be added for longer shelves)
Maximum Shelf Projection: 203mm
Weight Capacity: 22kg per pair of supports

$38.00
$0.00 $38.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $9.50
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

Get that truly modern look with your own floating shelves. Made from sturdy steel, they have a load rating of 22kg per pair, across a recommended minimum span or 457mm (18"), and up to 860mm (34"). For longer spans, simply add more brackets.
Height adjustment slots let you level the shelf if your initial holes are slightly offRequired drill bits: 31/64" (12.3mm)
What’s Included:

2 x I-Semble Light-Duty Blind Shelf Supports
All hardware is provided, including mounting screws - you provide the wall space and the shelf

Technical Data:

Support Arm Projection: 127mm
Support Arm Diameter: 1/2'' (12mm) nominal
Wall Bracket Dimensions: 24mm H x 44mm L x 3mm T
Minimum Shelf Thickness: 28.5mm (to entirely conceal the hardware)
Maximum Shelf Thickness: 31.75mm (shelf may be thicker, but thicker shelves will reduce weight capacity)
Minimum Shelf Length: 457mm (to span two studs)
Minimum Shelf Projection: 140mm (supports may be cut for shallower shelves)
Maximum Shelf Length: 860mm (for two supports; additional supports can be added for longer shelves)
Maximum Shelf Projection: 203mm
Weight Capacity: 22kg per pair of supports
