Veritas Skew Grinding Jig to suit Veritas Grinder Tool Rest

Veritas Skew Grinding Jig to suit Veritas Grinder Tool Rest

Product Code:
05N13-01

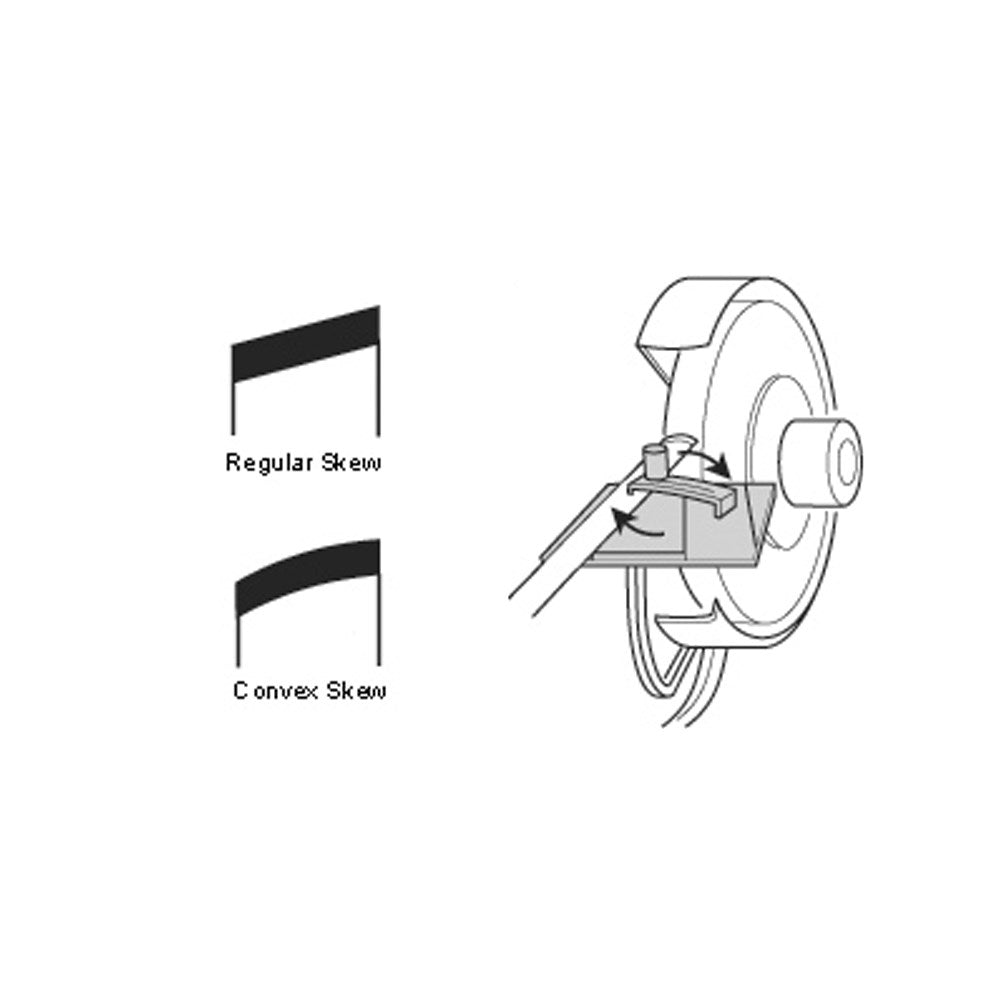

Skews are among the trickiest tools to use in turning without causing digs.
To prevent digs, this jig allows you to grind a slight radius rather than a straight 20 skew. It can be used on just about any grinder; all you need to do is drill a 1/4" hole in the tool rest (if required) to hold the base pin.
The radius of the grind is determined by the amount the skew projects from the jig. After grinding one side, you flip the skew to the other side of the jig and repeat.
The skew is clamped in position, which leaves both hands free to regulate grinding pressure and travel across the wheel.
The pin is steel; otherwise, the jig is brass and anodized aluminum.
Made in Canada.

$68.00
$0.00 $68.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $17.00
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

Skews are among the trickiest tools to use in turning without causing digs.
To prevent digs, this jig allows you to grind a slight radius rather than a straight 20° skew. It can be used on just about any grinder; all you need to do is drill a 1/4" hole in the tool rest (if required) to hold the base pin.
The radius of the grind is determined by the amount the skew projects from the jig. After grinding one side, you flip the skew to the other side of the jig and repeat.
The skew is clamped in position, which leaves both hands free to regulate grinding pressure and travel across the wheel.
The pin is steel; otherwise, the jig is brass and anodized aluminum.
Made in Canada.
