Veritas Skew Registration Jig for Mk.II Honing Guide

Veritas Skew Registration Jig for Mk.II Honing Guide

Product Code:
05M09-03

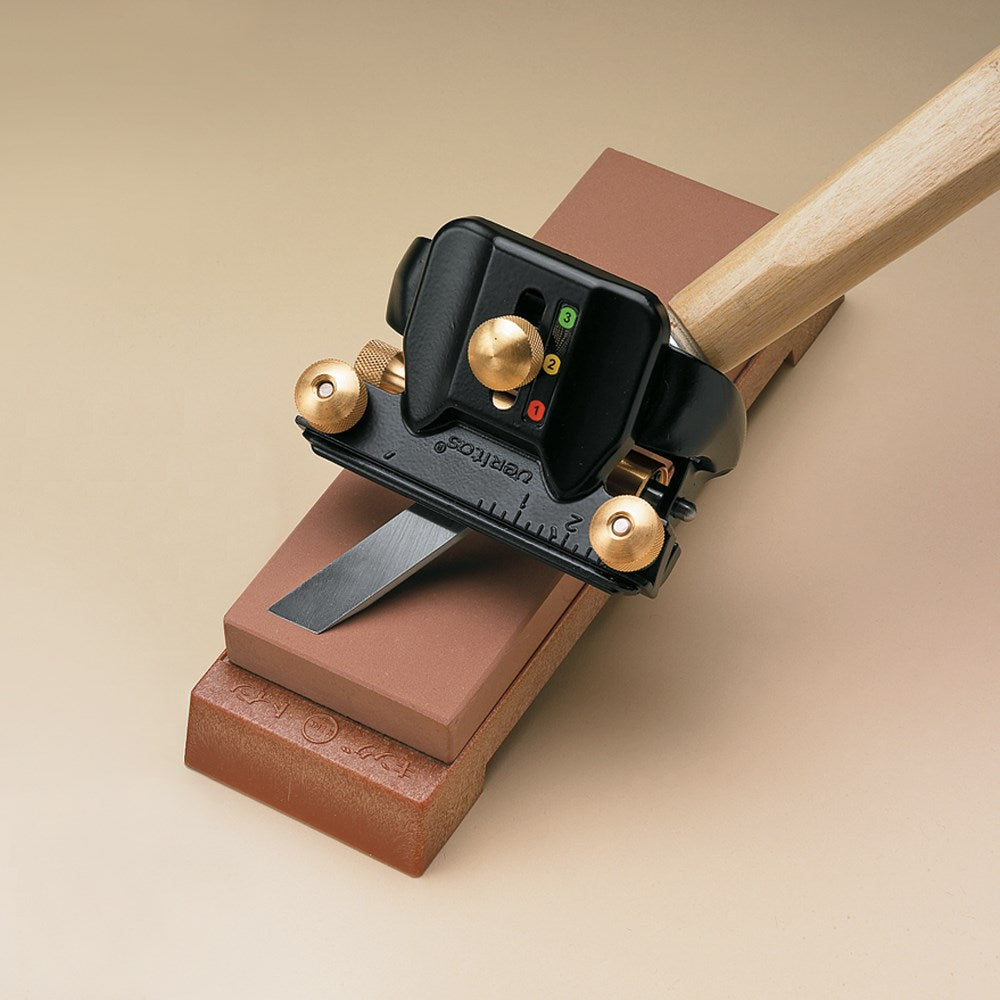

The optional skew registration jig locks into the Veritas Mk.II honing guide to make quick work of setting both skew and bevel angles (left- or right-hand) of chisel and plane blades.
The jig's machined aluminum base provides skew angle markings that are laser etched for accuracy and legibility. The skew angle graduations cover the range of 10 to 45 in 5 increments, and there are additional marks (18, 22, 28) to cover the angles of popular skew plane blades.The base has four distinct tracks providing four bevel angle settings: 20, 25, 30 and 35. (A micro-bevel can be created with the honing guides eccentric roller axle mount.) The unique sliding fence with blade stop allows you to match an existing skew angle visually even if it is non-standard. For use with the standard head only the narrow-blade clamping heads parallel jaws are not designed for sharpening skews.Made in Canada.

$77.00
$0.00 $77.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $19.25
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

The optional skew registration jig locks into the Veritas Mk.II honing guide to make quick work of setting both skew and bevel angles (left- or right-hand) of chisel and plane blades.

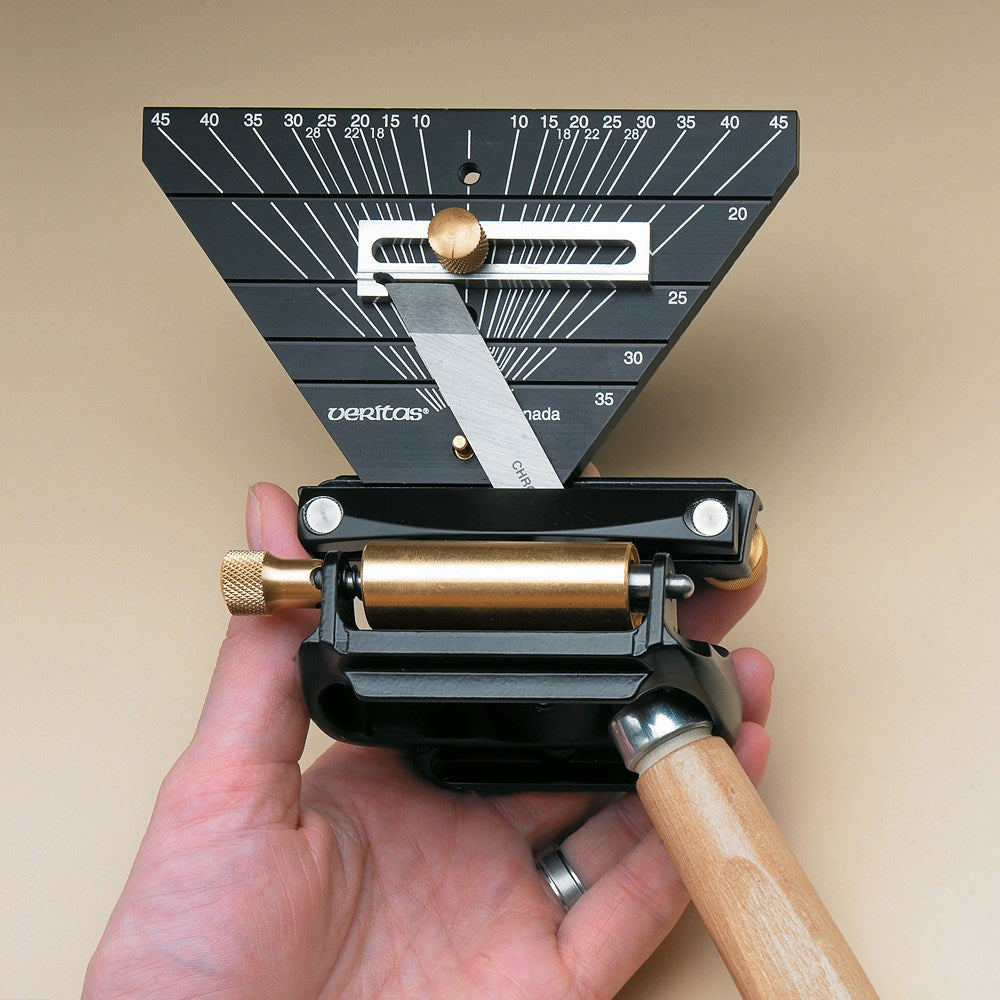

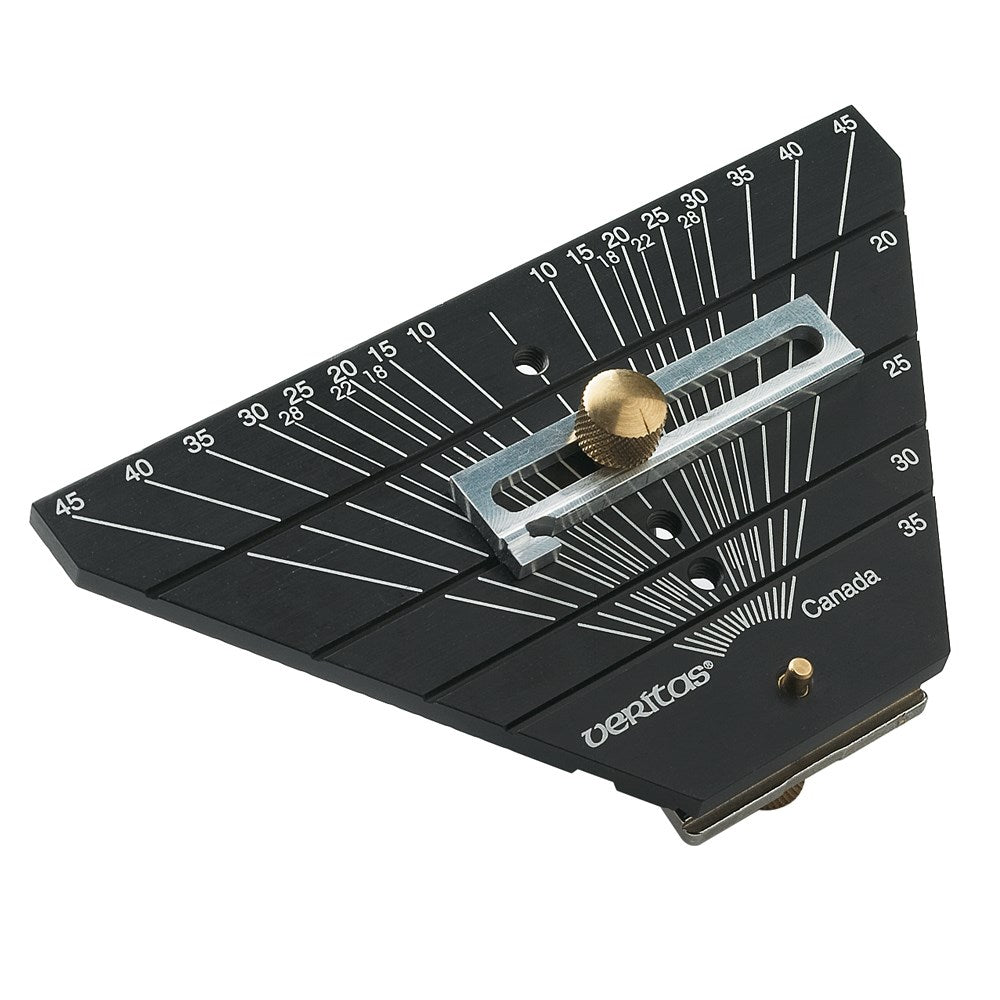

The jig's machined aluminum base provides skew angle markings that are laser etched for accuracy and legibility. The skew angle graduations cover the range of 10° to 45° in 5° increments, and there are additional marks (18°, 22°, 28°) to cover the angles of popular skew plane blades.The base has four distinct tracks providing four bevel angle settings: 20°, 25°, 30° and 35°. (A micro-bevel can be created with the honing guide’s eccentric roller axle mount.) The unique sliding fence with blade stop allows you to match an existing skew angle visually – even if it is non-standard. For use with the standard head only – the narrow-blade clamping head’s parallel jaws are not designed for sharpening skews.Made in Canada.
