CMT Three Wing Slot Cutter Set
CMT Three Wing Slot Cutter Set
Product Code:
800-506-11
Regular price
$186.00
Regular price
$0.00
Sale price
$186.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of
$46.50
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111support@carbatec.com.au
Product Details

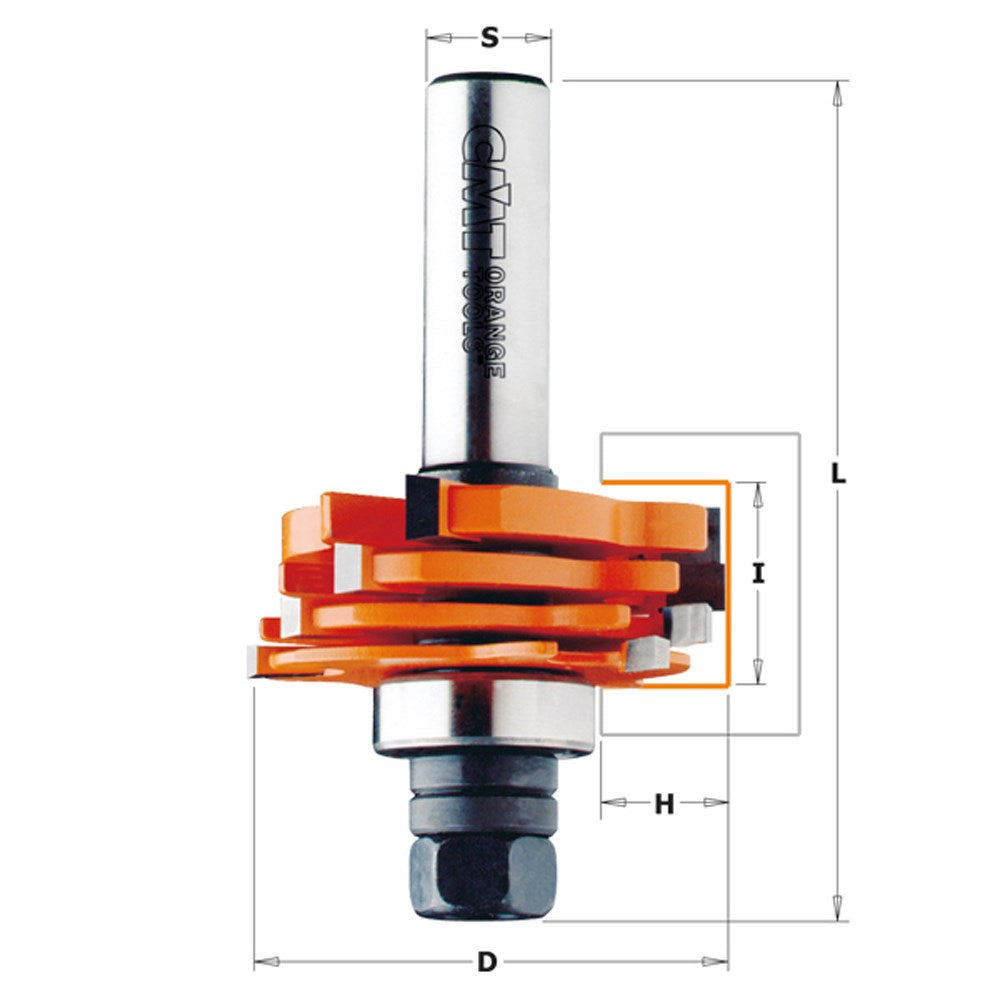

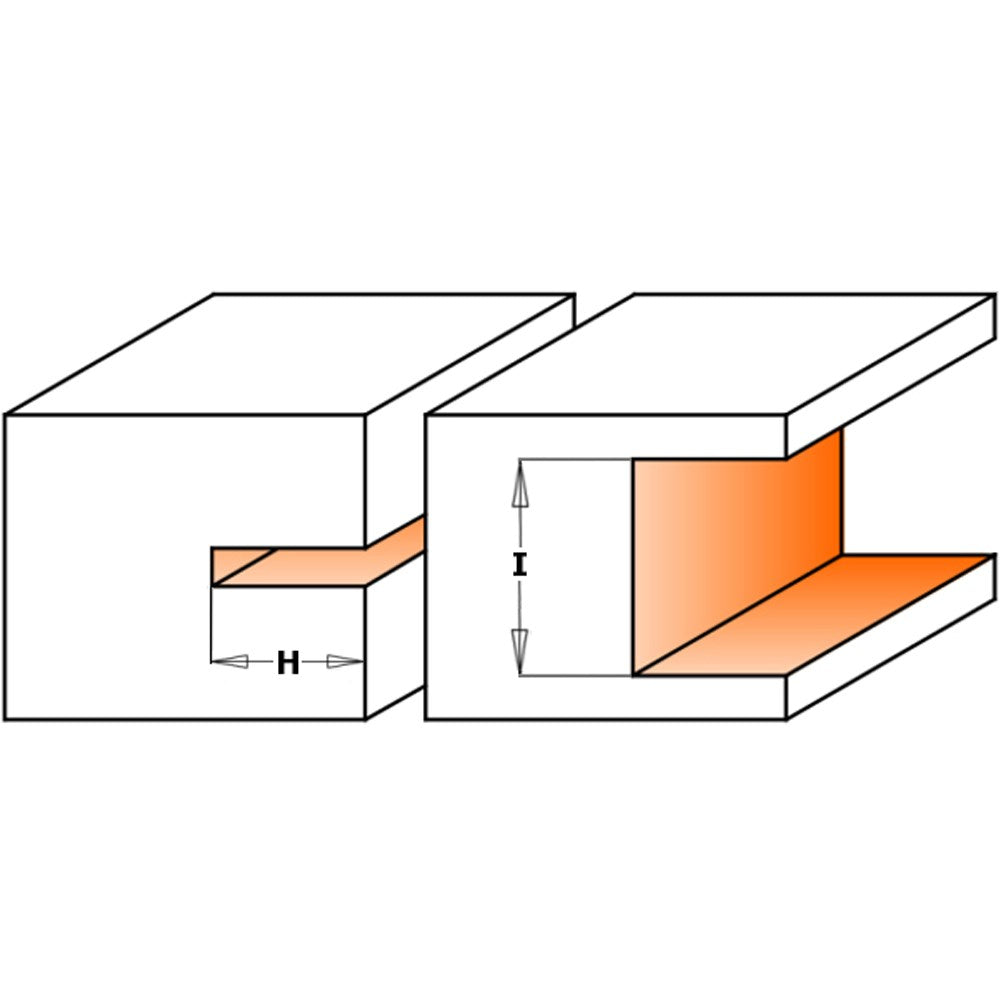

With a 1/2" shank, and bearing giving a 12.8mm depth of cut, the height of cut be spaced between 3.2mm to 18mm using any of the included 17 shims.

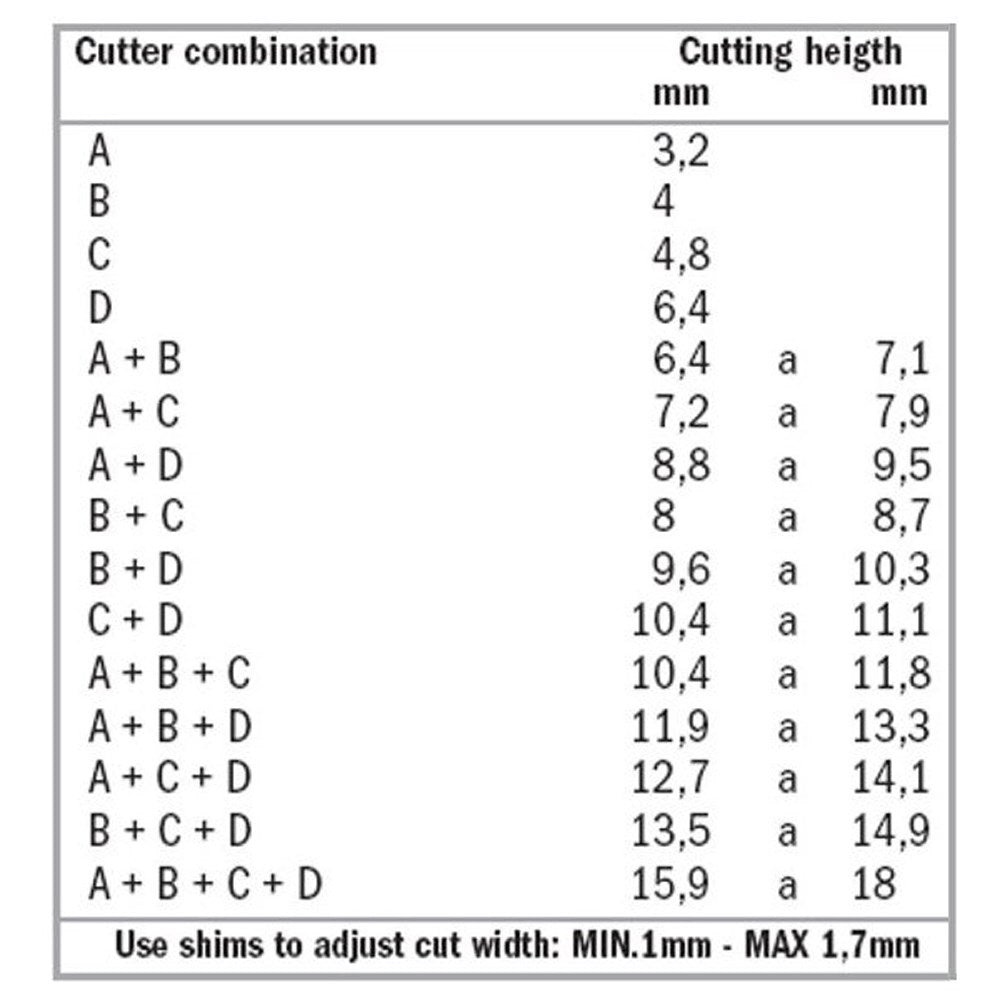

See the attached chart for details on spacing and correct cutter combinations.

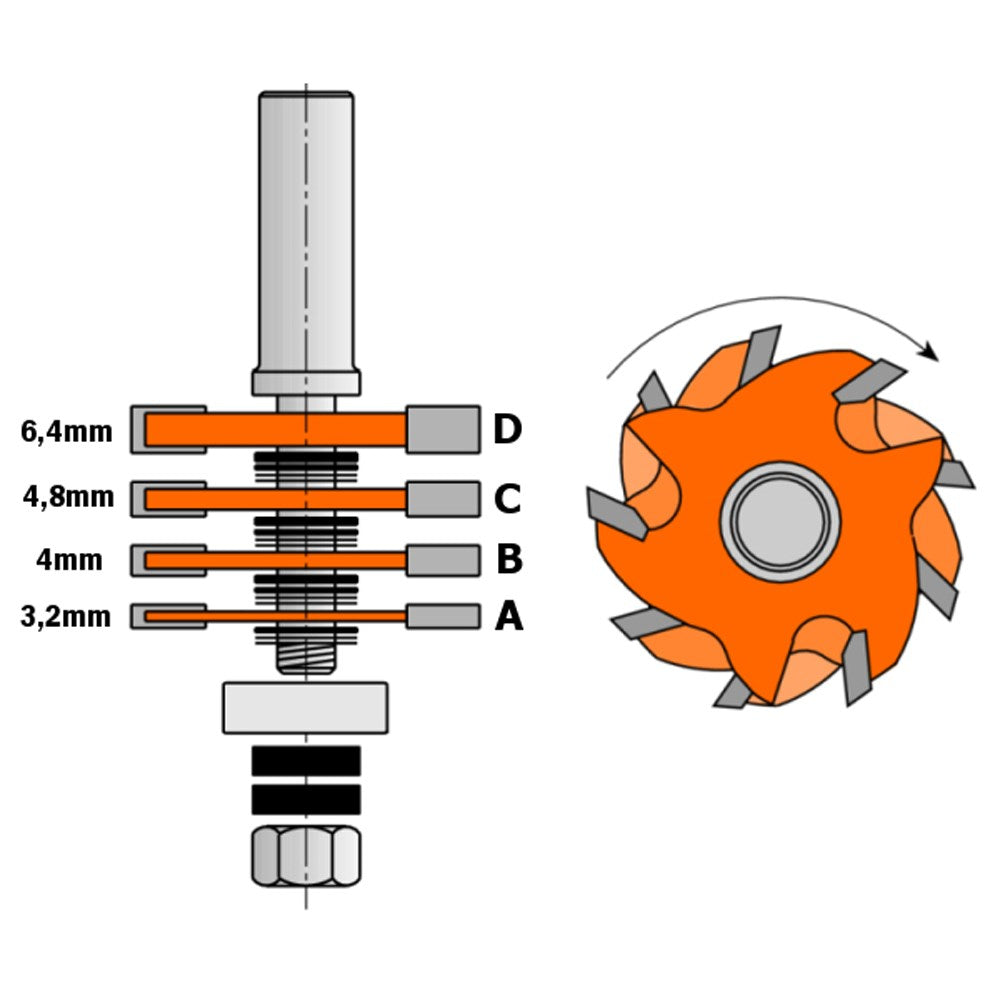

Sets include:
4 carbide tipped cutters 3.18mm (1/8"), 4mm (5/32"), 4.76mm (3/16"), 6.35mm (1/4").
A 12.7mm (1/2") arbor.
A 22mm (7/8") ball bearing for a cutting depth up to 12.7mm (1/2").
17 shims in different sizes.
Safety tips: Never use the slot cutter set without shims between the cutters. The distance between the cutters can vary from 1mm (1/32") to 1.7mm (1/16"). A shim must also be positioned between the ball bearing and the cutters.
Additional information
5 specs...
Bearing Diameter
7/8" (22 mm)
Bit Cut Diameter
47.6 mm (1-7/8")
Bit Cut Length
18 mm
Bit Shank Size
1/2"
Replacement Bearing Code
791-005-00
