Veritas Straight Grinding Jig to suit Veritas Grinder Tool Rest

Veritas Straight Grinding Jig to suit Veritas Grinder Tool Rest

Product Code:
05M06-01

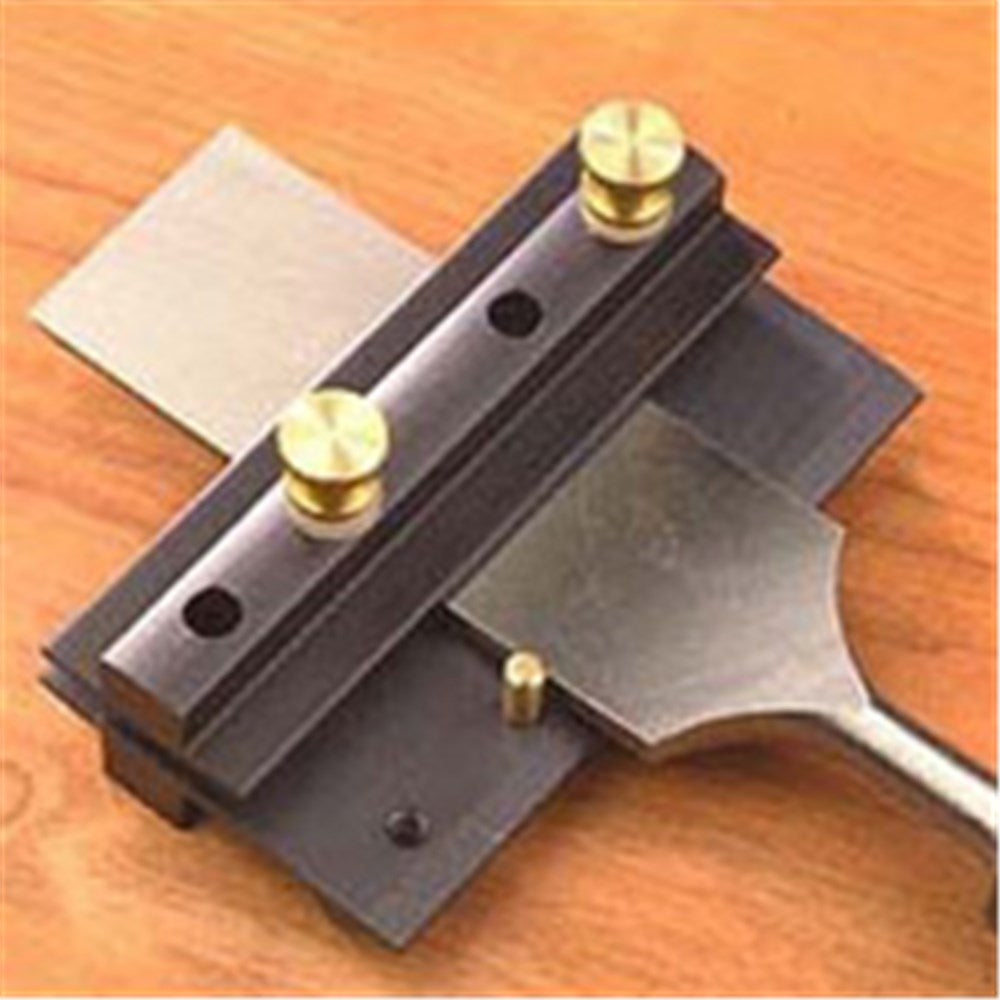

The grinding jig works with any power or hand grinder that has a tool rest.

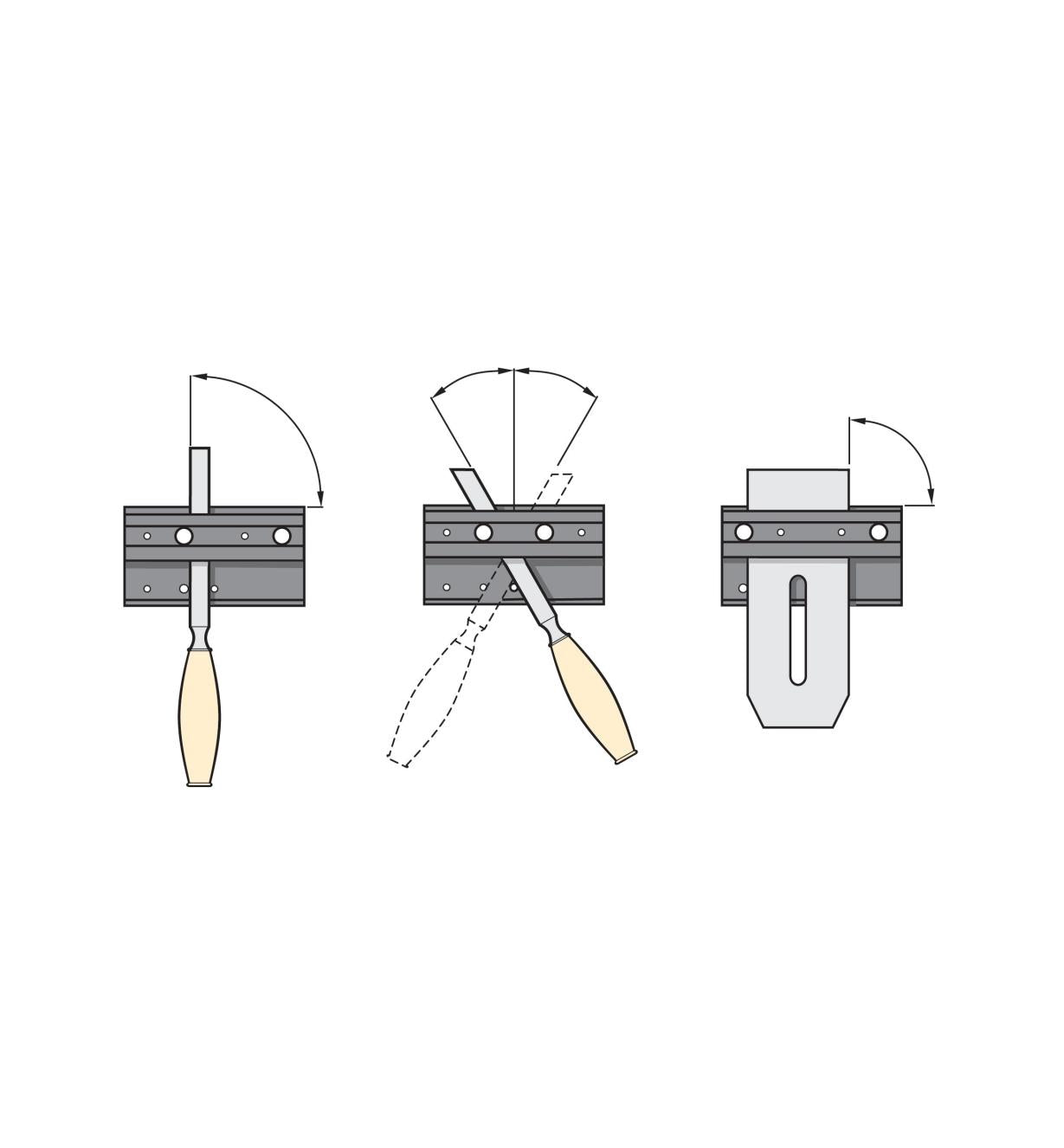

Put a tool in the jig, slide it against the alignment pin and one clamping thumbscrew to square it, adjust the blade projection for bevel angle, and tighten in place. The tool is now held squarely in the jig at the chosen bevel angle. Slide the jig back and forth across the tool rest and stone face to sharpen the tool.
The brass clamping bolts have nylon washers to prevent galling; other parts are made from hard aluminum, further hardened by anodizing to prevent wear. High-friction pads ensure solid clamping without inadvertent misalignment.
The jig fits in the slot of the Veritas grinder tool rest; the riding ledges adapt it to other tool rests.Made in Canada.

$57.00
$0.00 $57.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $14.25
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

The grinding jig works with any power or hand grinder that has a tool rest.
Put a tool in the jig, slide it against the alignment pin and one clamping thumbscrew to square it, adjust the blade projection for bevel angle, and tighten in place. The tool is now held squarely in the jig at the chosen bevel angle. Slide the jig back and forth across the tool rest and stone face to sharpen the tool.
The brass clamping bolts have nylon washers to prevent galling; other parts are made from hard aluminum, further hardened by anodizing to prevent wear. High-friction pads ensure solid clamping without inadvertent misalignment.
The jig fits in the slot of the Veritas grinder tool rest; the riding ledges adapt it to other tool rests.Made in Canada.
