Veritas Surface Clamp

Veritas Surface Clamp

Product Code:
05G19-01

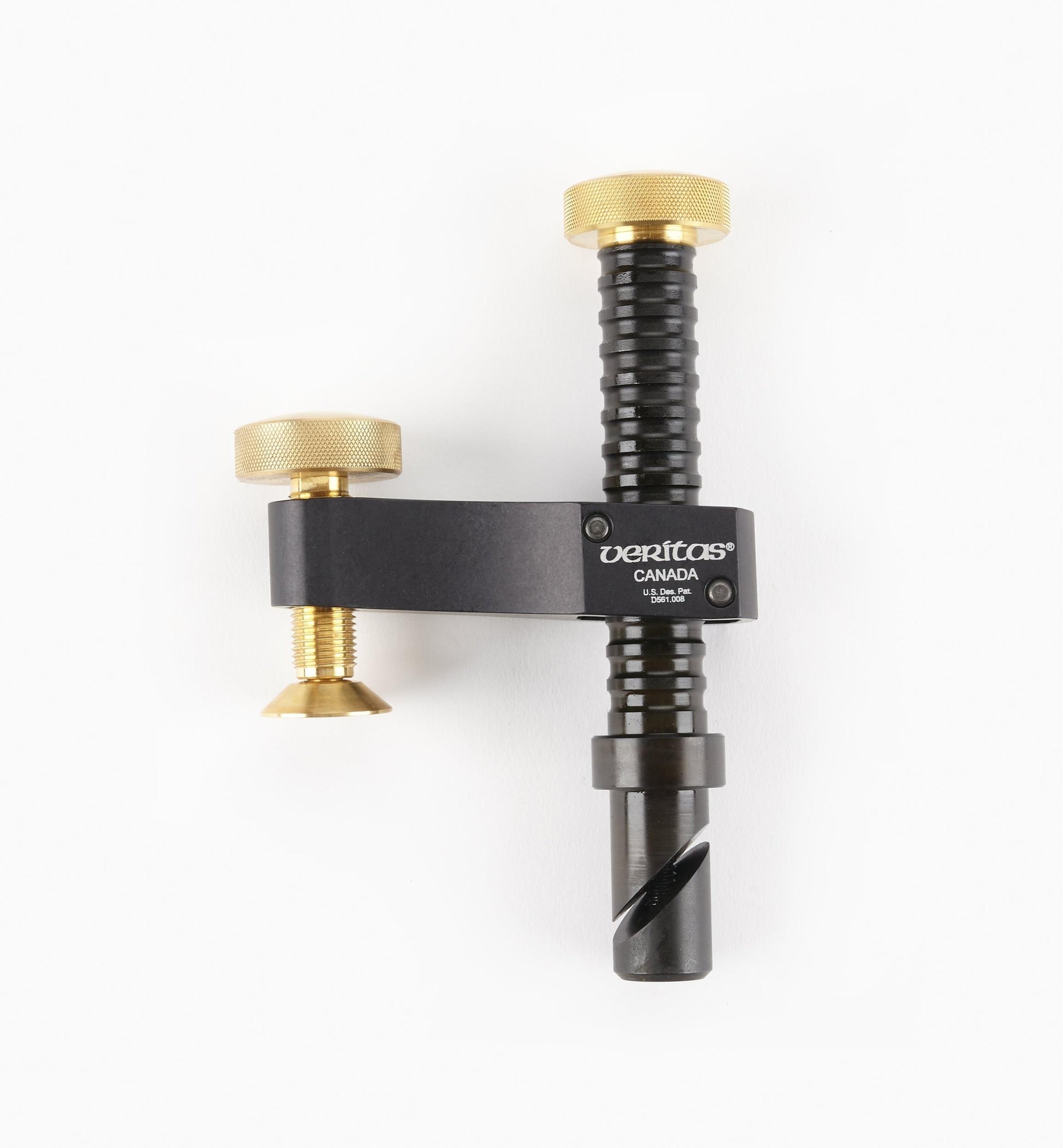

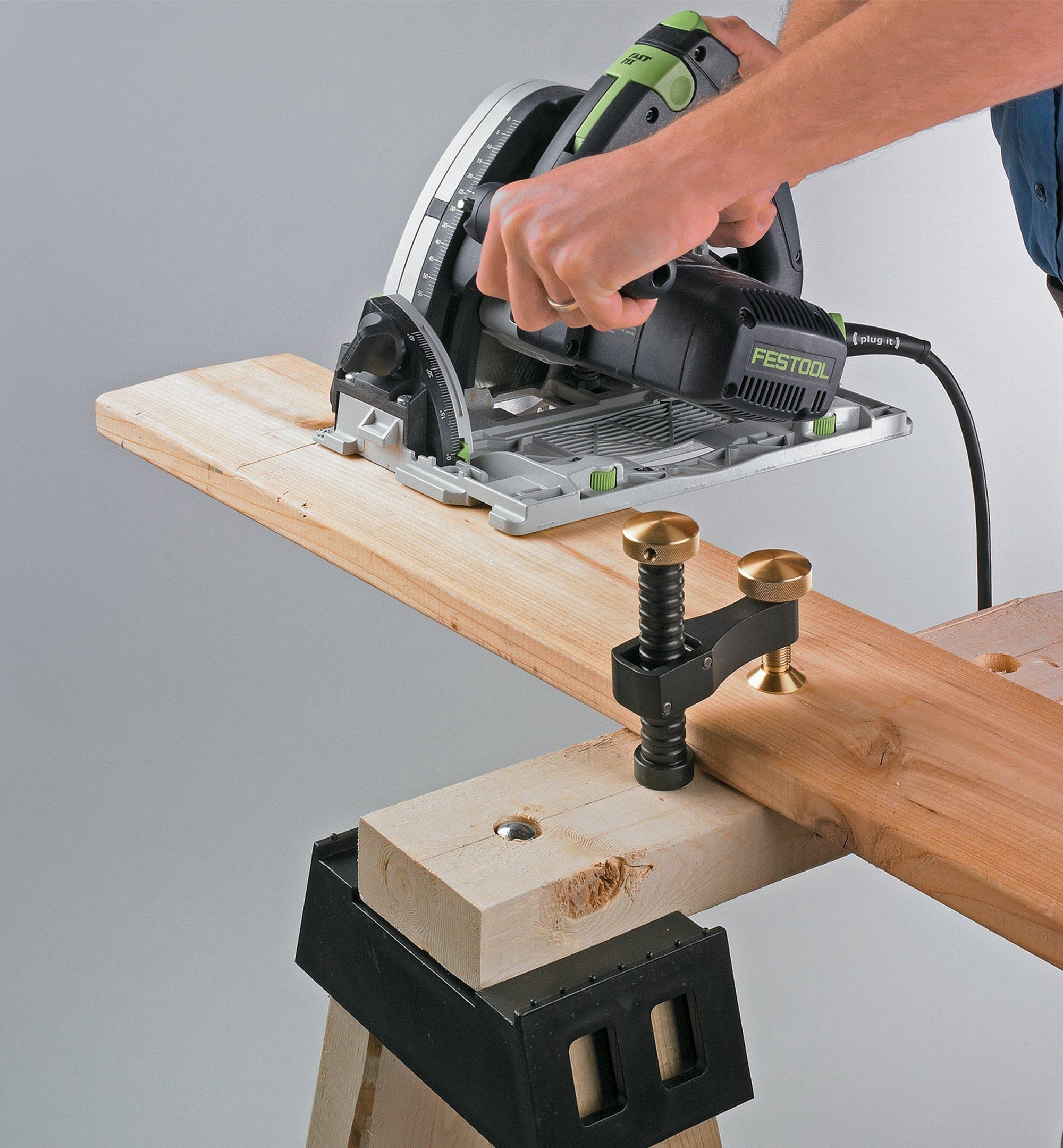

This fast-acting surface clamp can be used anywhere you can drill a 3/4" (19mm) diameter hole. The post has a wedging mechanism that anchors it firmly (horizontally or vertically) in material as thin as 5/8" (15.9mm) - depending on the strength of the material. This makes it ideal for use in jigs and fixtures, e.g., sliding tables for saws.
The clamp arm (which slides easily on the post when tilted, but locks at 90) has a 2 1/8" (53.9mm) throat depth and can grip anything from veneer to material up to 3 3/4" thick (95.2mm) (3 1/8" when the post collar is used as a depth limiter).

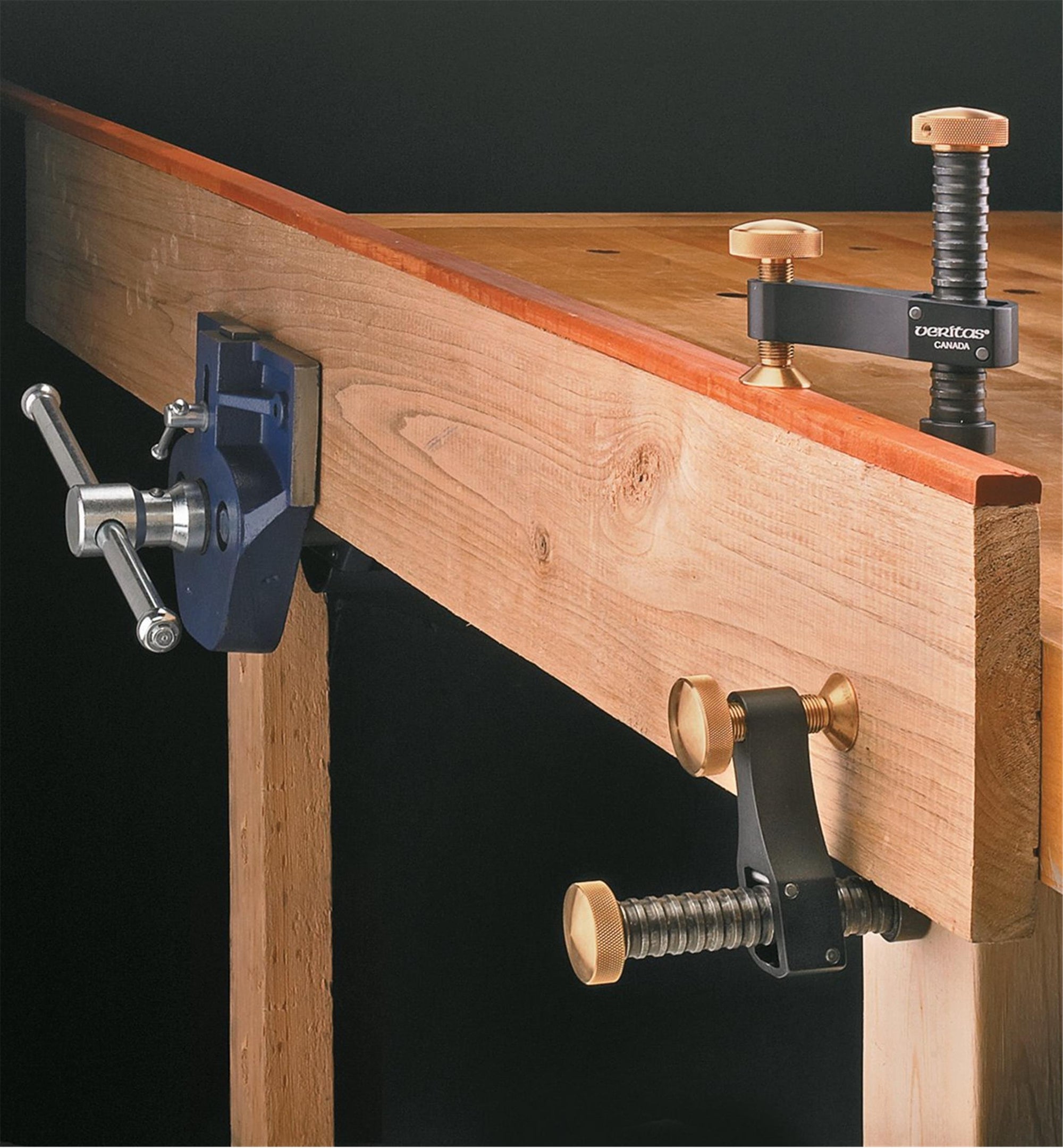

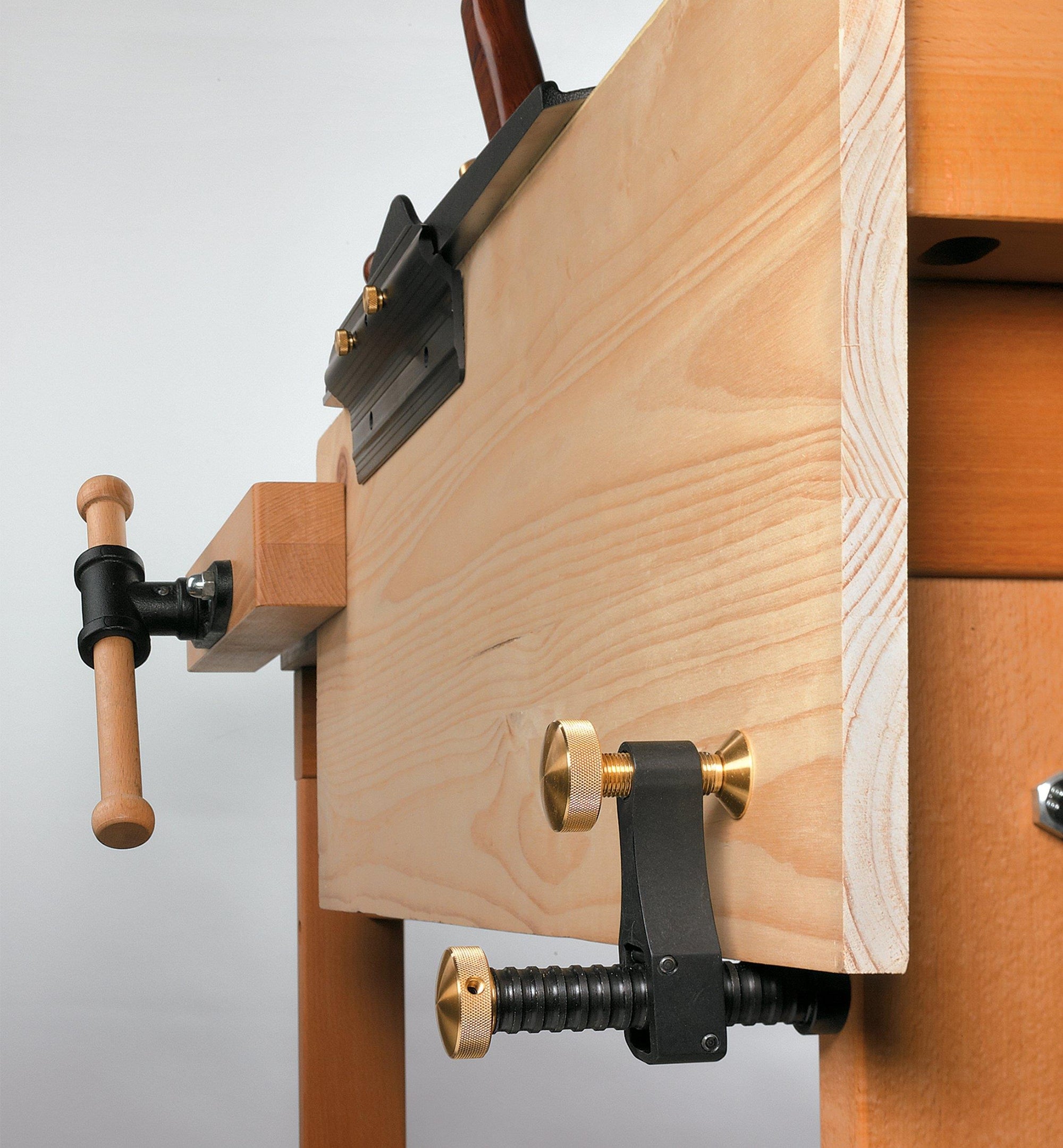

Anchor wedging is controlled by the brass knob on the post and clamping force by the knob at the arm tip. Used horizontally, the post collar acts as a material support. Used vertically, the collar is a rub ring that protects workpieces from accidental damage by the post rings. Precision machined from brass, steel and anodized aluminum, this is a versatile work support and clamp.
Made in Canada. Patented.Weight: 605g.

$166.00
$0.00 $166.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $41.50
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

This fast-acting surface clamp can be used anywhere you can drill a 3/4" (19mm) diameter hole. The post has a wedging mechanism that anchors it firmly (horizontally or vertically) in material as thin as 5/8" (15.9mm) - depending on the strength of the material. This makes it ideal for use in jigs and fixtures, e.g., sliding tables for saws.
The clamp arm (which slides easily on the post when tilted, but locks at 90°) has a 2 1/8" (53.9mm) throat depth and can grip anything from veneer to material up to 3 3/4" thick (95.2mm) (3 1/8" when the post collar is used as a depth limiter).
Anchor wedging is controlled by the brass knob on the post and clamping force by the knob at the arm tip. Used horizontally, the post collar acts as a material support. Used vertically, the collar is a rub ring that protects workpieces from accidental damage by the post rings. Precision machined from brass, steel and anodized aluminum, this is a versatile work support and clamp.
Made in Canada. Patented.Weight: 605g.
