i2R Top Mount Vacuum Clamp Table 610 x 1220mm - Complete Kit

i2R Top Mount Vacuum Clamp Table 610 x 1220mm - Complete Kit

Product Code:
I2R-VAC60120
$1,999.00
$0.00 $1,999.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $499.75
Special Order item. A Carbatec representative will contact you to confirm delivery lead times.
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Please note: Bulky items are not eligible for free shipping. Delivery costs for these products will vary depending on the size of the item and the delivery location. Shipping will be calculated and confirmed during the checkout process.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

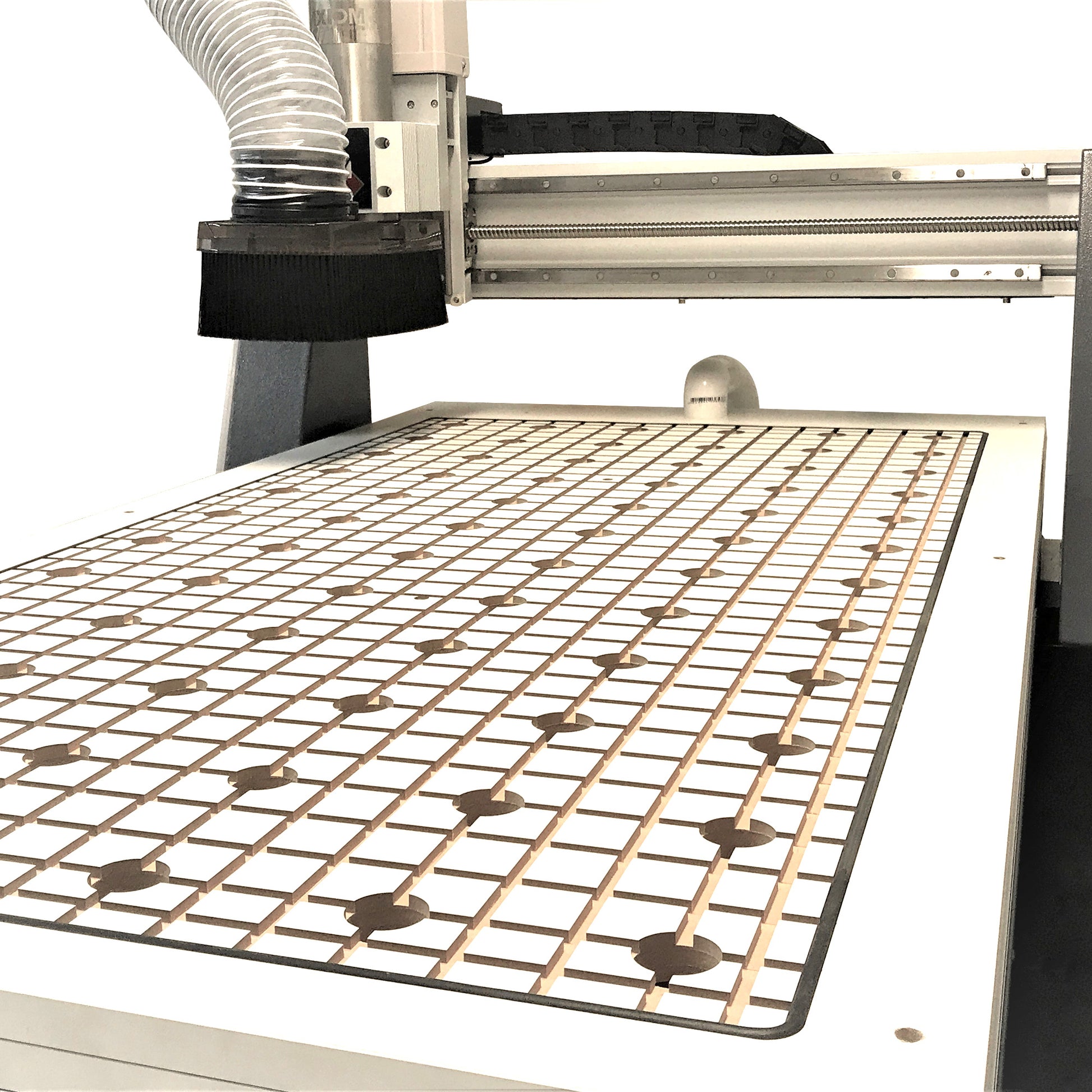

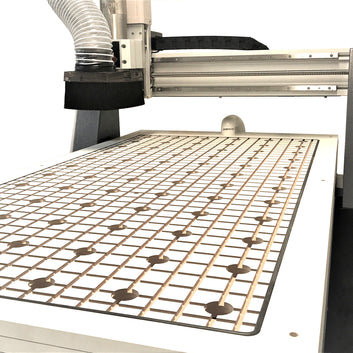

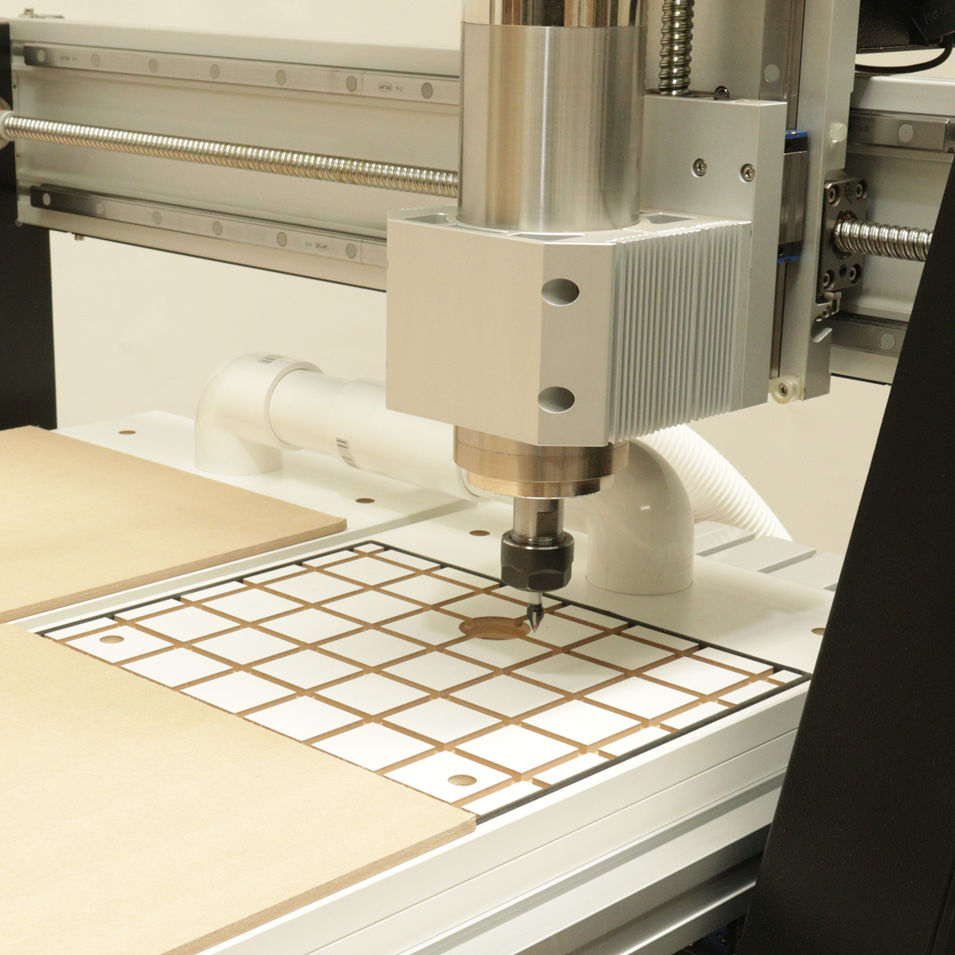

Custom made in Australia, the i2R CNC Vacuum Table is designed to sit directly on the Aluminium T-slot Table of your i2R CNC and is secured using the included T-slot bolts. Measuring 610 x 1220 x 32mm, it is particularly suited to the i2R-A24 and i2R-B24 machines.

This vacuum table provides a safe, stable, and effective solution for holding down flat sheet work on your CNC. Unlike traditional clamping methods, there’s no risk of clamps or workpieces interfering with the cutting path, reducing the chance of damage to bits, spindles, or clamps. Perfect for small-format CNCs, it can be used with an MDF spoilboard to protect the table while still allowing a strong vacuum hold. Please note: the vacuum table is designed for larger sheets and is not suitable for holding individual small parts unless their surface area remains sufficient.

Kit Includes:

  • Fully channel-machined vacuum surface table
  • 4mm MDF spoilboard
  • 1HP vacuum unit
  • Vacuum pod filter
  • Safety relief valve
  • All required hoses and fittings

Pump Specifications:

  • 0.75kW (1HP) single-stage side channel vacuum blower
  • 230V 10A single-phase operation
  • Made in Taiwan
  • CE and UL certified motor, ISO 9001

Key Features:

  • Provides strong hold-down force for flat sheet work
  • Eliminates interference from clamps or workpieces
  • Supports MDF spoilboard for added protection
  • Maintains full Z-axis travel and bridge clearance
  • 32mm thick table with 4mm MDF spoilboard
  • Custom-made in Australia for small-format CNC machines
