UJK Guide Rail Dogs for MAKITA - Pack of 2

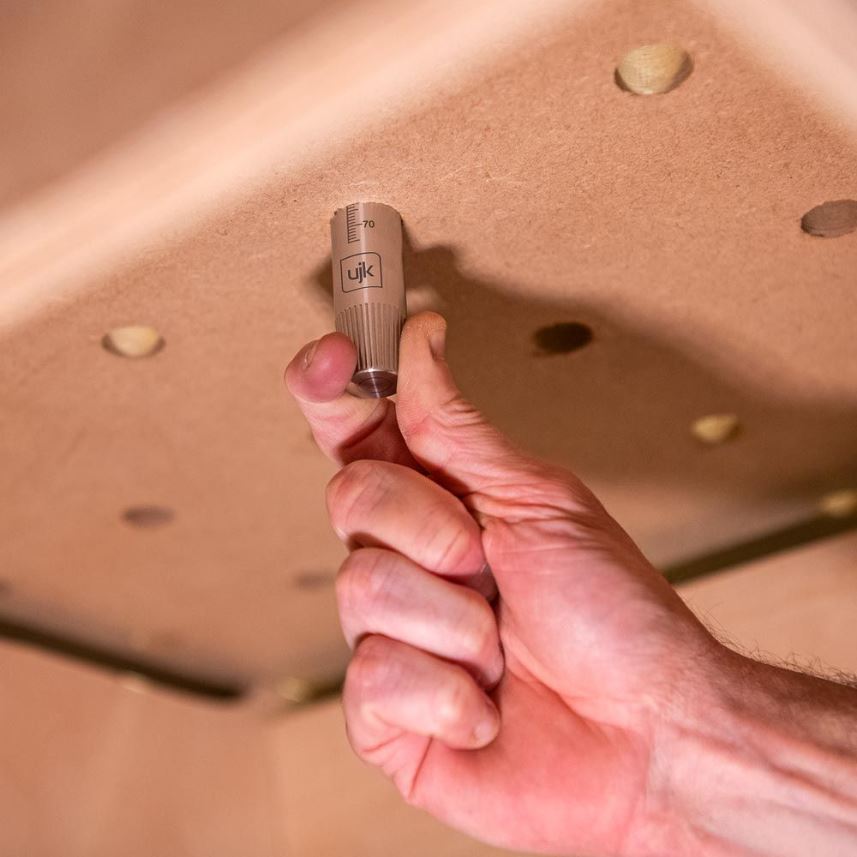

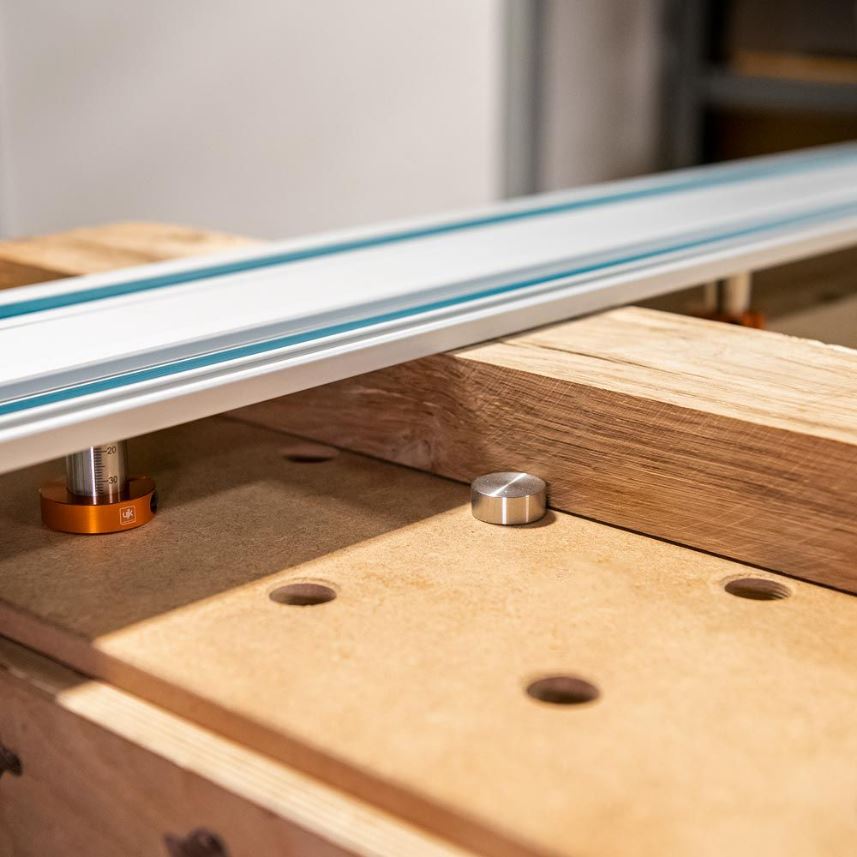

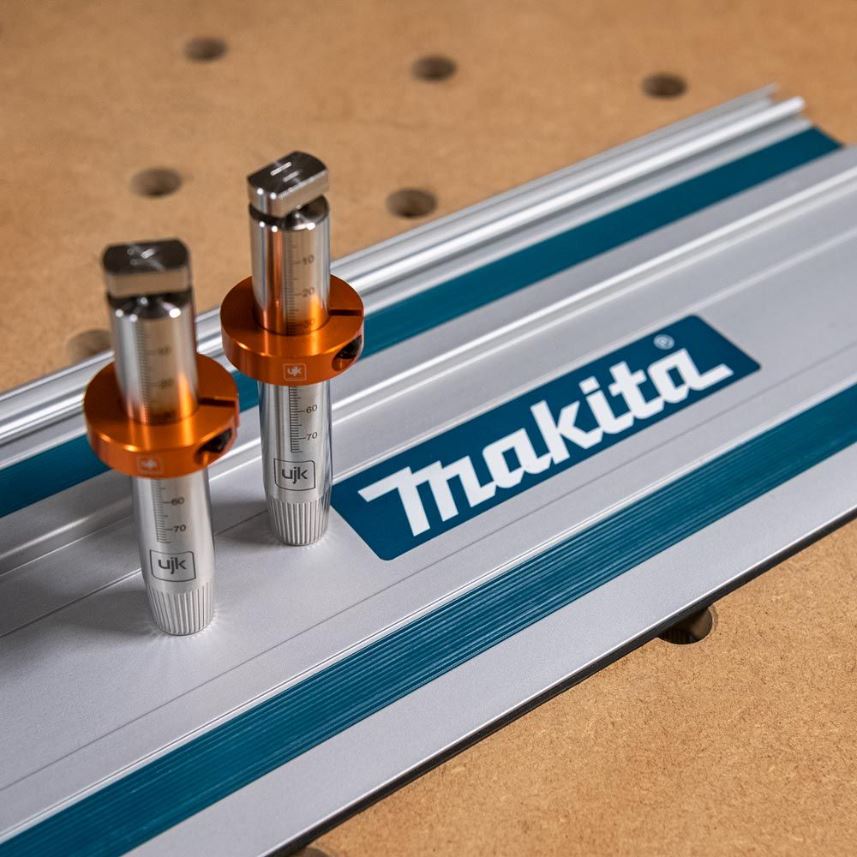

These unique stainless steel UJK dogs feature a Tee bolt that fits into the Tee slot on the underside of your Makita guide rail. Unlike the standard dogs, which are referenced against the side of the rail, these dogs are hidden beneath your rail. They replace the need to rely on rail clips to keep the rail in position. Once located in the dog holes in your multifunction bench, your guide rail goes nowhere.

Using these dogs, there is never any chance of your saw cutting across other dog holes. This method of fixing your guide rail is particularly beneficial when using power tools with higher vibration levels, such as routers.

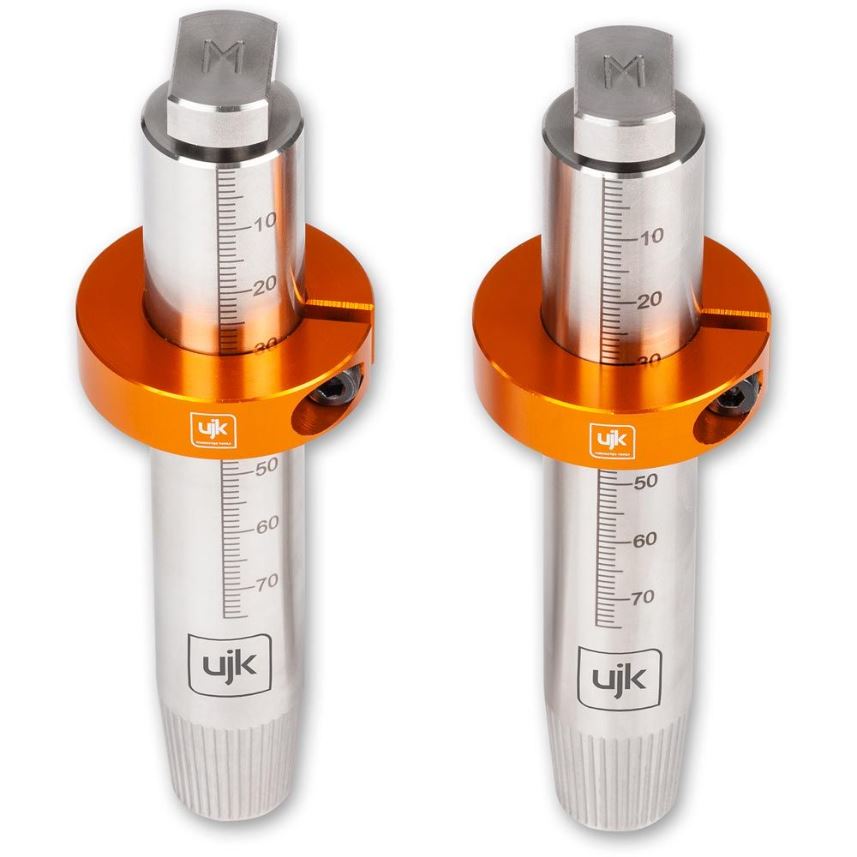

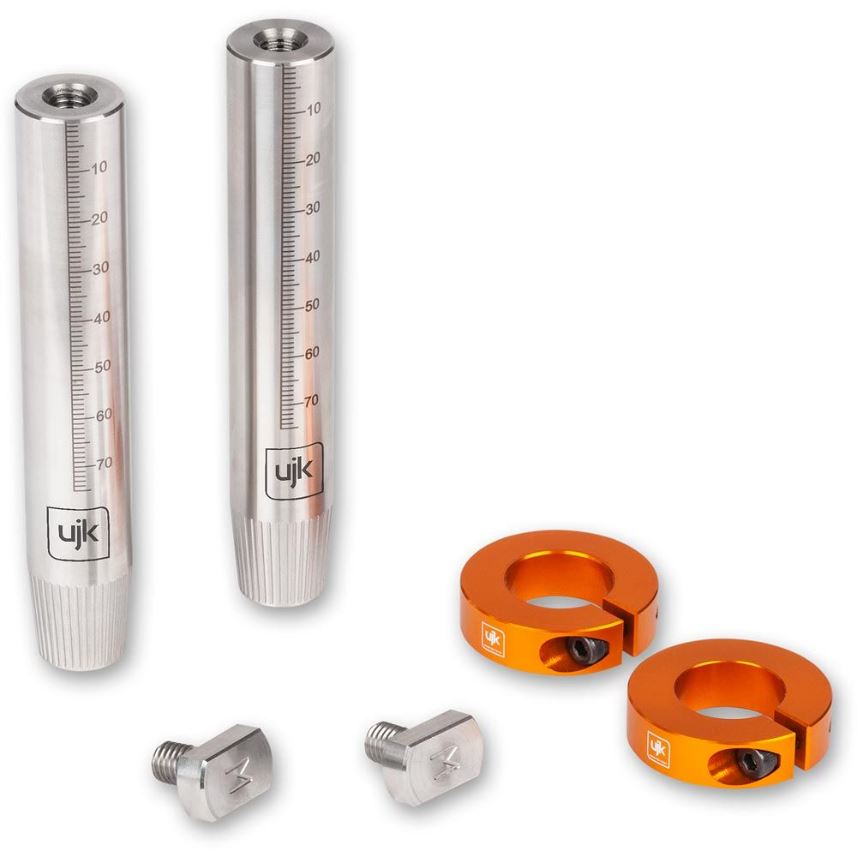

They are supplied with two aluminium split collars that fit over the dog. If the workpiece you are cutting is narrow, the rail can rock. These collars support the rail to stop this rocking. The dogs have a metric scale of 75mm along the side. This scale is used to measure the thickness of wood, and then the collar on the dog is set to the correct thickness for support. A final feature is the straight knurl on the leading taper. This assists when threading the tee bolt (which is in the rail) to the dog.

Suitable for Multi-function and MFT benches with 20mm dog holes.

• Offers greater security, replaces the need for rail clips
• Tee bolt fits into the groove on the underside of the rail
• Prevents saw cutting across other dog holes
