Veritas® Cabinetmaker's Trimming Plane

Veritas® Cabinetmaker's Trimming Plane

Product Code:
05P74-01

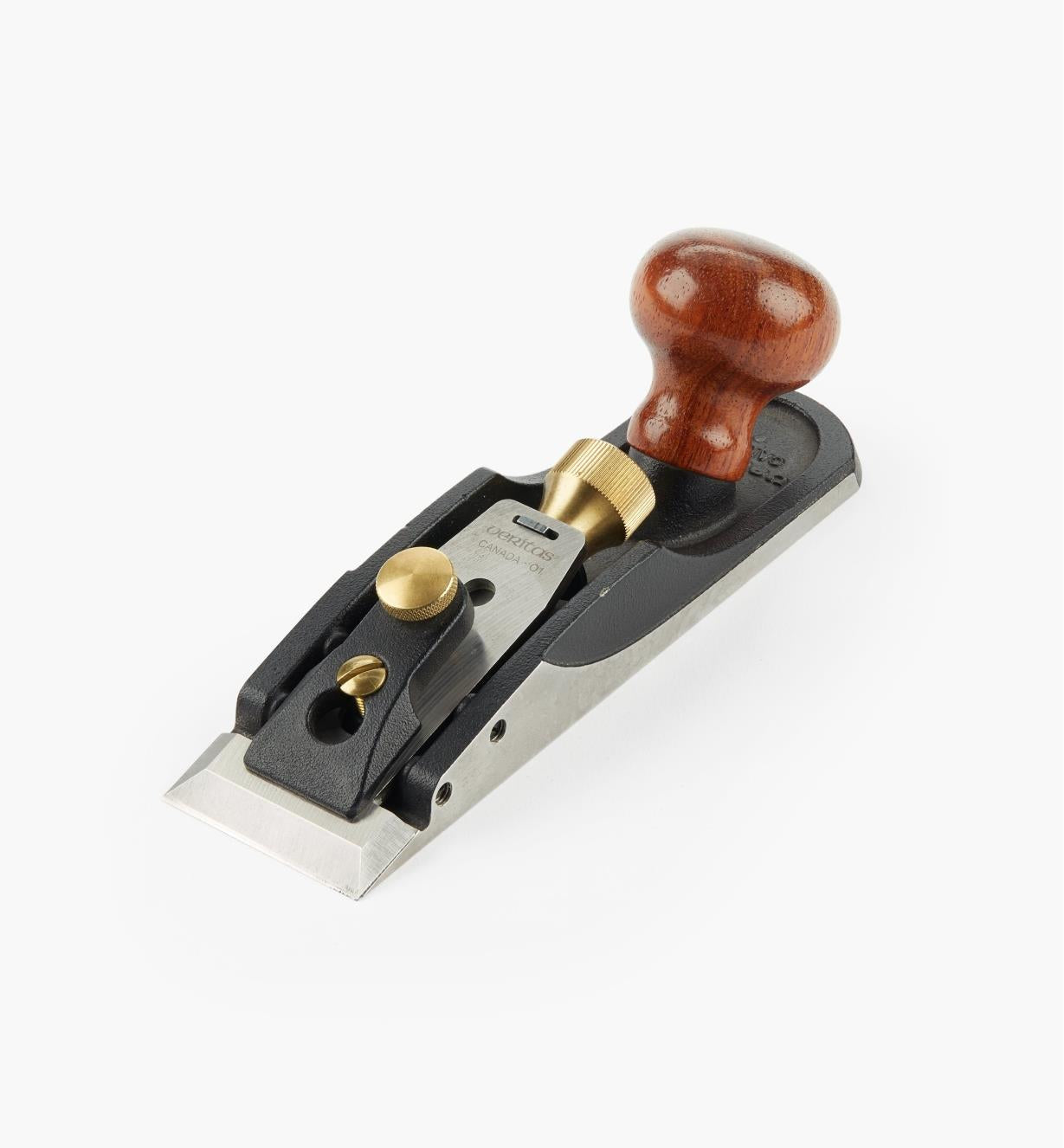

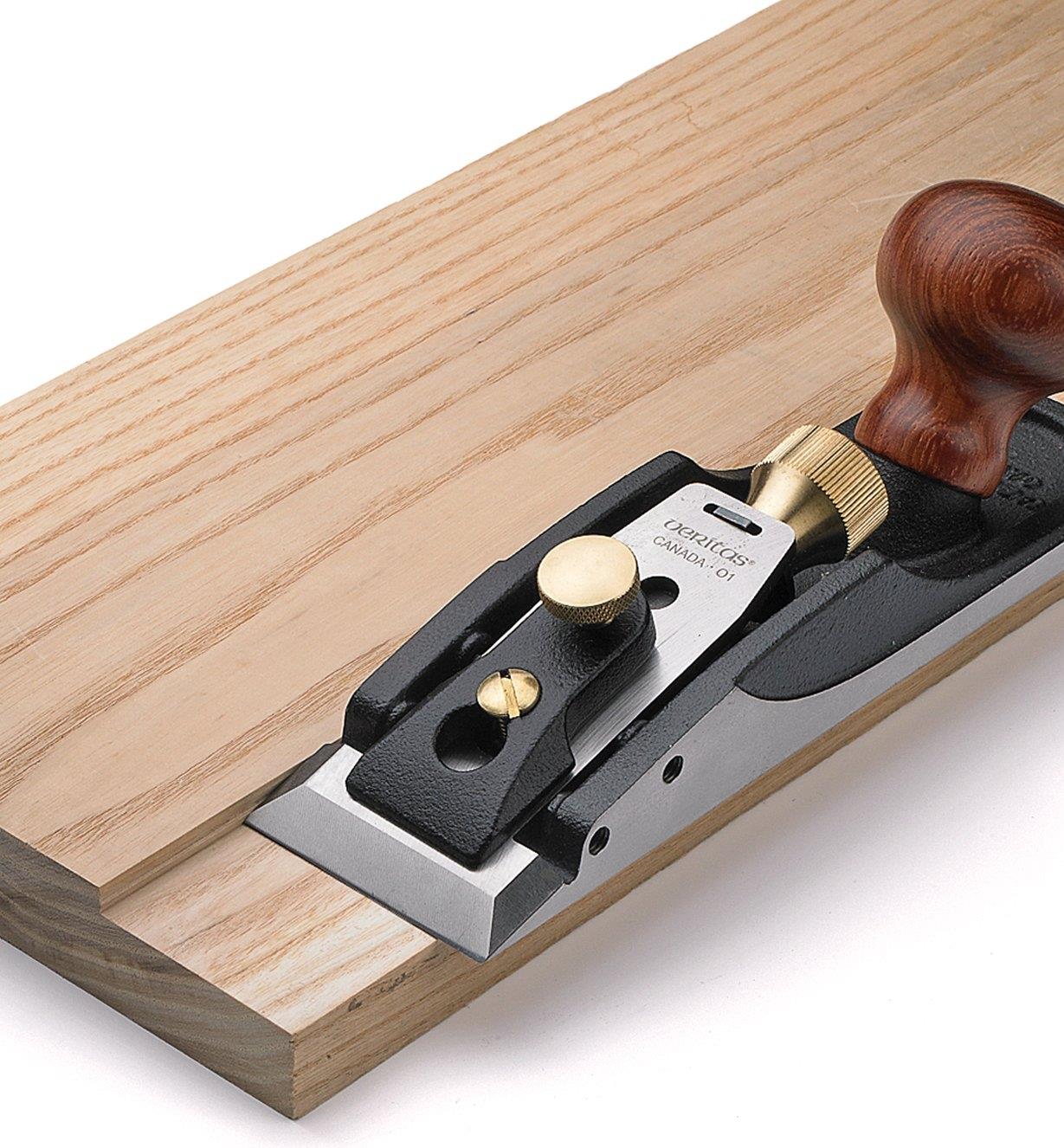

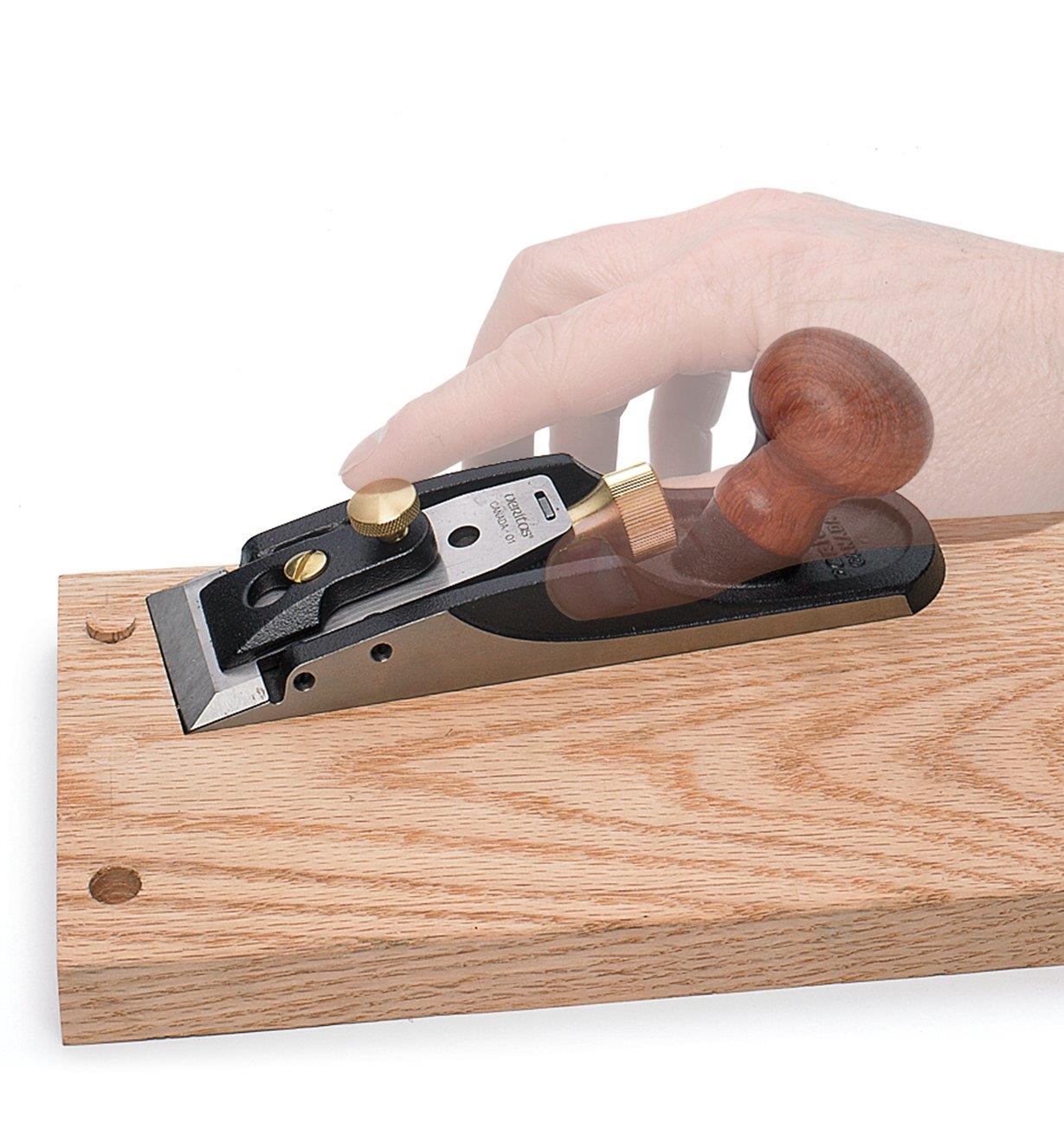

Commonly called a chisel plane, this 6 1/2" long by 1 3/4" wide plane has an exposed full-width blade that lets you work up to adjacent surfaces. It excels at making paring cuts in places where a chisel would be awkward or impossible to use, making short work of cleaning up corners and joints inside carcasses.

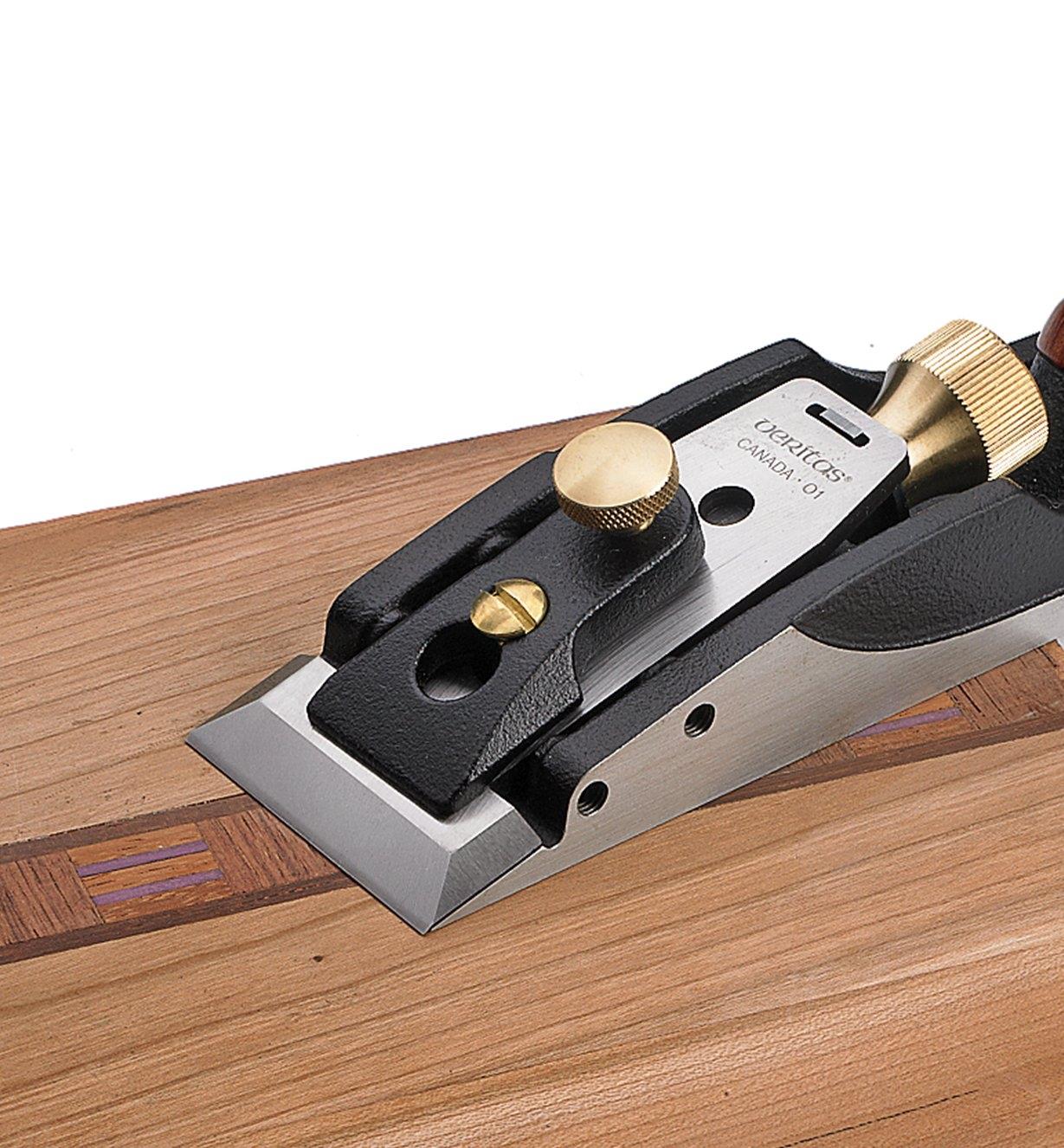

Because the blade can be set level with the sole, you can also trim plugs or small inlays flush without marring the surrounding wood. Cast from tough ductile iron, the sole and sides are accurately machined and surface ground to be flat and square, with recesses cast into the side for grip. The large angled rear knob seats comfortably in the palm.
Four set screws accurately register the blade in the body, and it has a large thumb wheel for depth adjustment. Comes with a lapped O1 steel blade hardened to Rc58-60. The 20 bevel blade coupled with the 15 bed angle yields an effective cutting angle of 35, severing end-grain fibers cleanly and minimizing tearing. Weighs 1.2 lb.
Made in Canada.

$288.00
$0.00 $288.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $72.00
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

Commonly called a chisel plane, this 6 1/2" long by 1 3/4" wide plane has an exposed full-width blade that lets you work up to adjacent surfaces. It excels at making paring cuts in places where a chisel would be awkward or impossible to use, making short work of cleaning up corners and joints inside carcasses.
Because the blade can be set level with the sole, you can also trim plugs or small inlays flush without marring the surrounding wood. Cast from tough ductile iron, the sole and sides are accurately machined and surface ground to be flat and square, with recesses cast into the side for grip. The large angled rear knob seats comfortably in the palm.
Four set screws accurately register the blade in the body, and it has a large thumb wheel for depth adjustment. Comes with a lapped O1 steel blade hardened to Rc58-60. The 20° bevel blade coupled with the 15° bed angle yields an effective cutting angle of 35°, severing end-grain fibers cleanly and minimizing tearing. Weighs 1.2 lb.
Made in Canada.
