Veritas Domino Joinery Table for DF 500

Veritas Domino Joinery Table for DF 500

Product Code:
05J17-01

Take your Domino joinery to the next level!
See what you can do with this product here

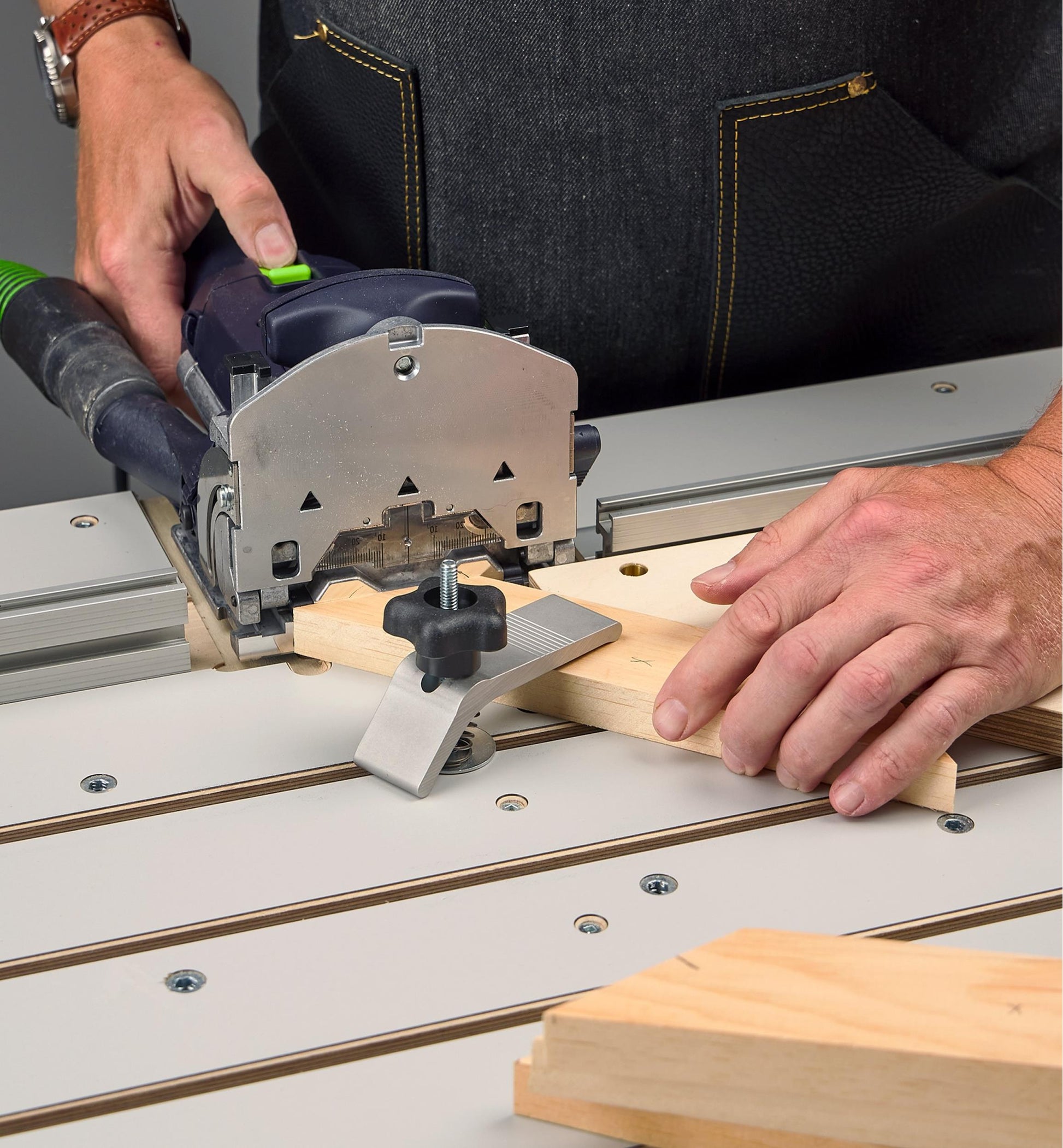

With a DF 500 mounted in this innovative table, it becomes the reference face for the tool, making it straightforward to do accurate and repeatable joinery for work that can be difficult to handle freehand. The table is invaluable for rapid and precise rail and stile construction, mitre work and narrow frames. It ensures that the mortise is placed precisely in mating locations on either side of the joint.

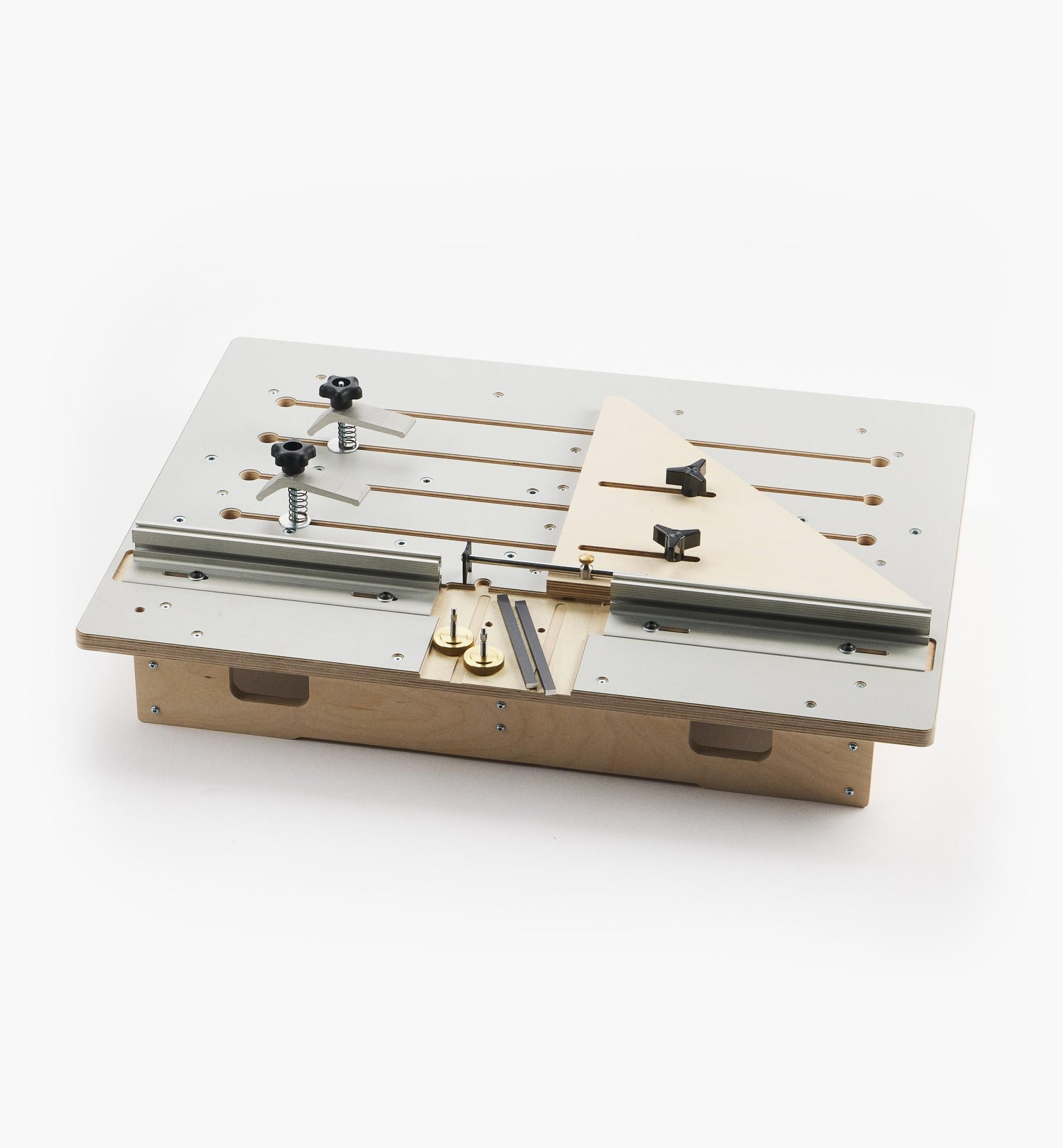

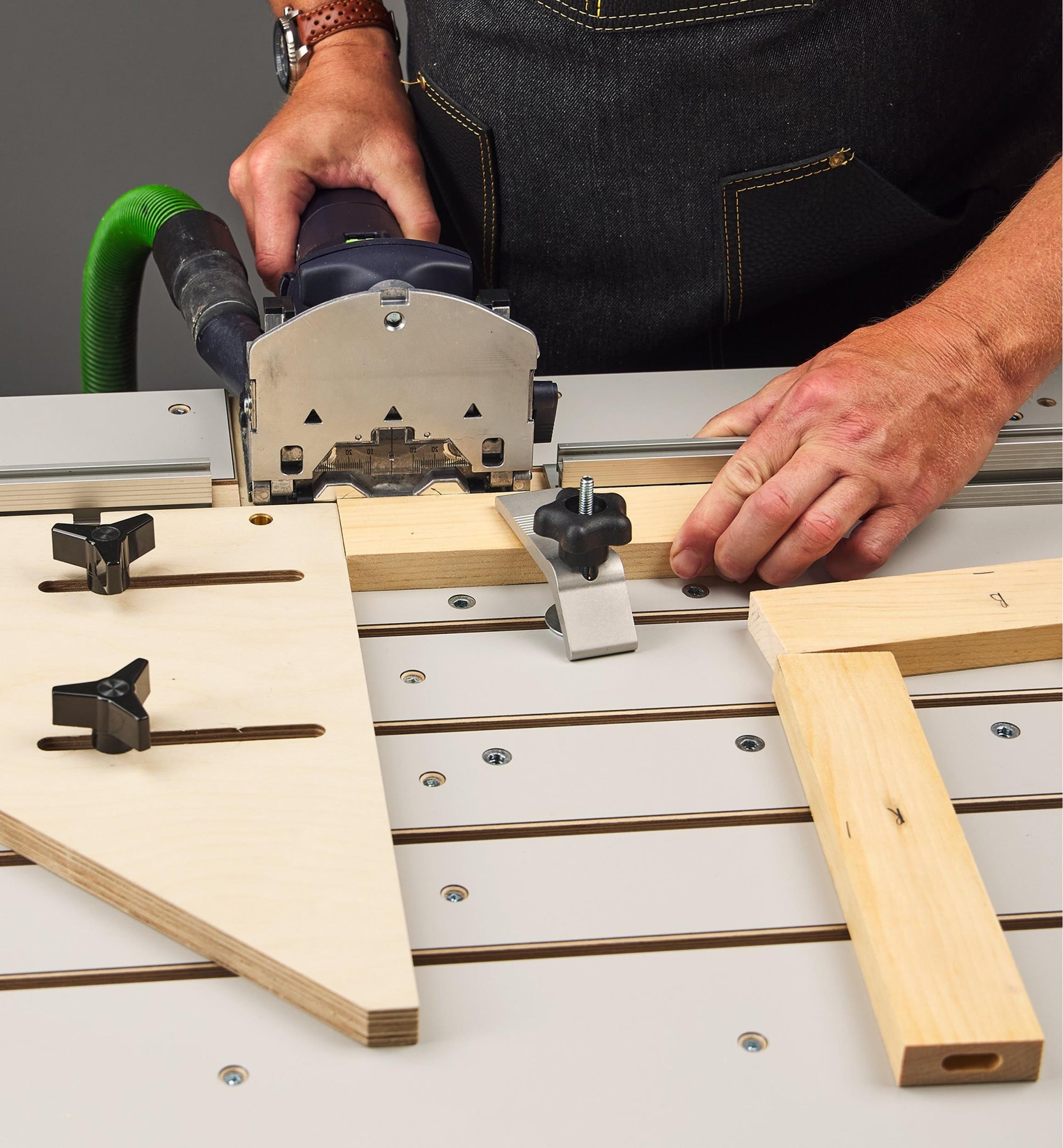

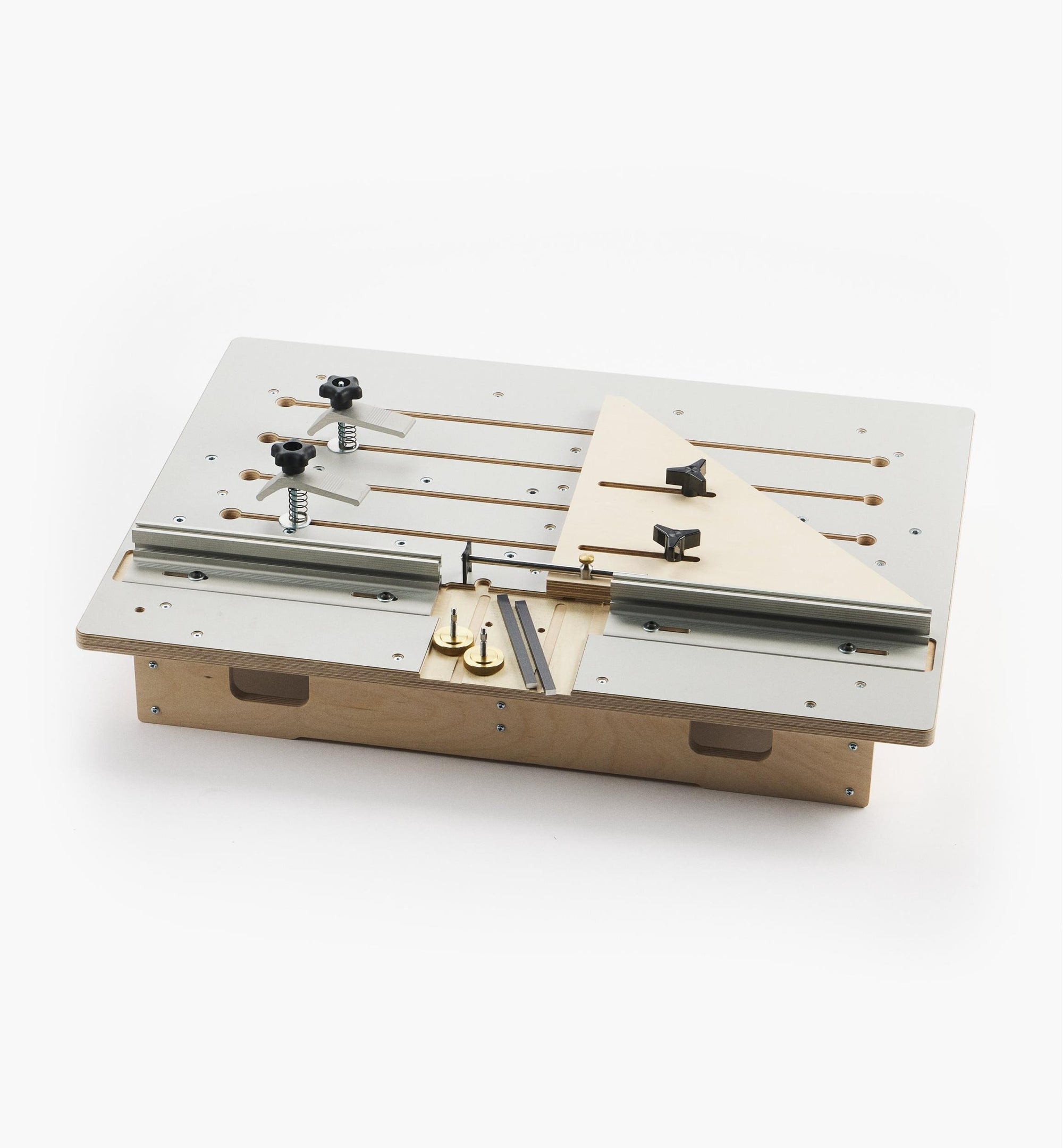

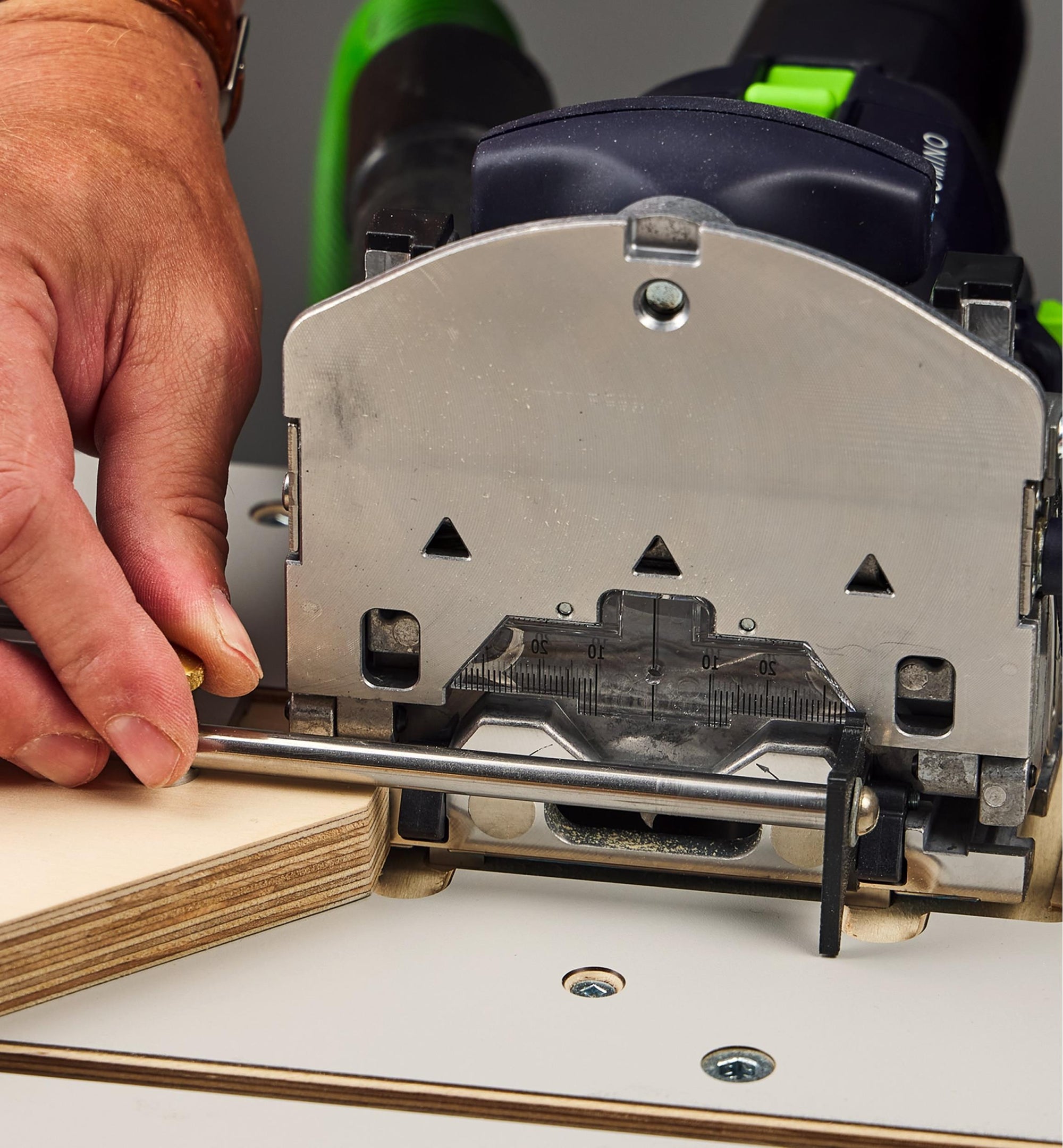

The slotted, Baltic birch laminated top with an integral 4" high base provides a stable and ample clamping surface for workpieces of most sizes, which are easily secured with the included hold-downs. An aluminium fixed fence and a movable guide fence ensure perfect orientation in either a 45 or 90 position. The offset registration gauge allows the fence to be flipped for precise alignment of the mortises, ensuring a seamless joint. User-made guide fences can also be added to secure the workpiece at any angle desired.

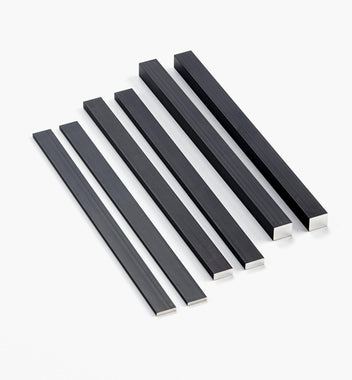

The two included 6mm shims will centre the mortise in the edge of standard 3/4" or 18mm material. An optional set of shims (two each of 2mm, 4mm and 8mm) is available separately and can be used alone or in combination to create vertical offsets to meet most project requirements.
The table has a substantial working surface of 800 mm 590 mm and is 800 mm square with the Domino tool attached.
Made in Canada
Not compatible with DF 700 Domino Machines

$611.00
$0.00 $611.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $152.75
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

Take your Domino joinery to the next level!
See what you can do with this product here
With a DF 500 mounted in this innovative table, it becomes the reference face for the tool, making it straightforward to do accurate and repeatable joinery for work that can be difficult to handle freehand. The table is invaluable for rapid and precise rail and stile construction, mitre work and narrow frames. It ensures that the mortise is placed precisely in mating locations on either side of the joint.
The slotted, Baltic birch laminated top with an integral 4" high base provides a stable and ample clamping surface for workpieces of most sizes, which are easily secured with the included hold-downs. An aluminium fixed fence and a movable guide fence ensure perfect orientation in either a 45° or 90° position. The offset registration gauge allows the fence to be flipped for precise alignment of the mortises, ensuring a seamless joint. User-made guide fences can also be added to secure the workpiece at any angle desired.
The two included 6mm shims will centre the mortise in the edge of standard 3/4" or 18mm material. An optional set of shims (two each of 2mm, 4mm and 8mm) is available separately and can be used alone or in combination to create vertical offsets to meet most project requirements.
The table has a substantial working surface of 800 mm × 590 mm and is 800 mm square with the Domino tool attached.
Made in Canada
Not compatible with DF 700 Domino Machines
