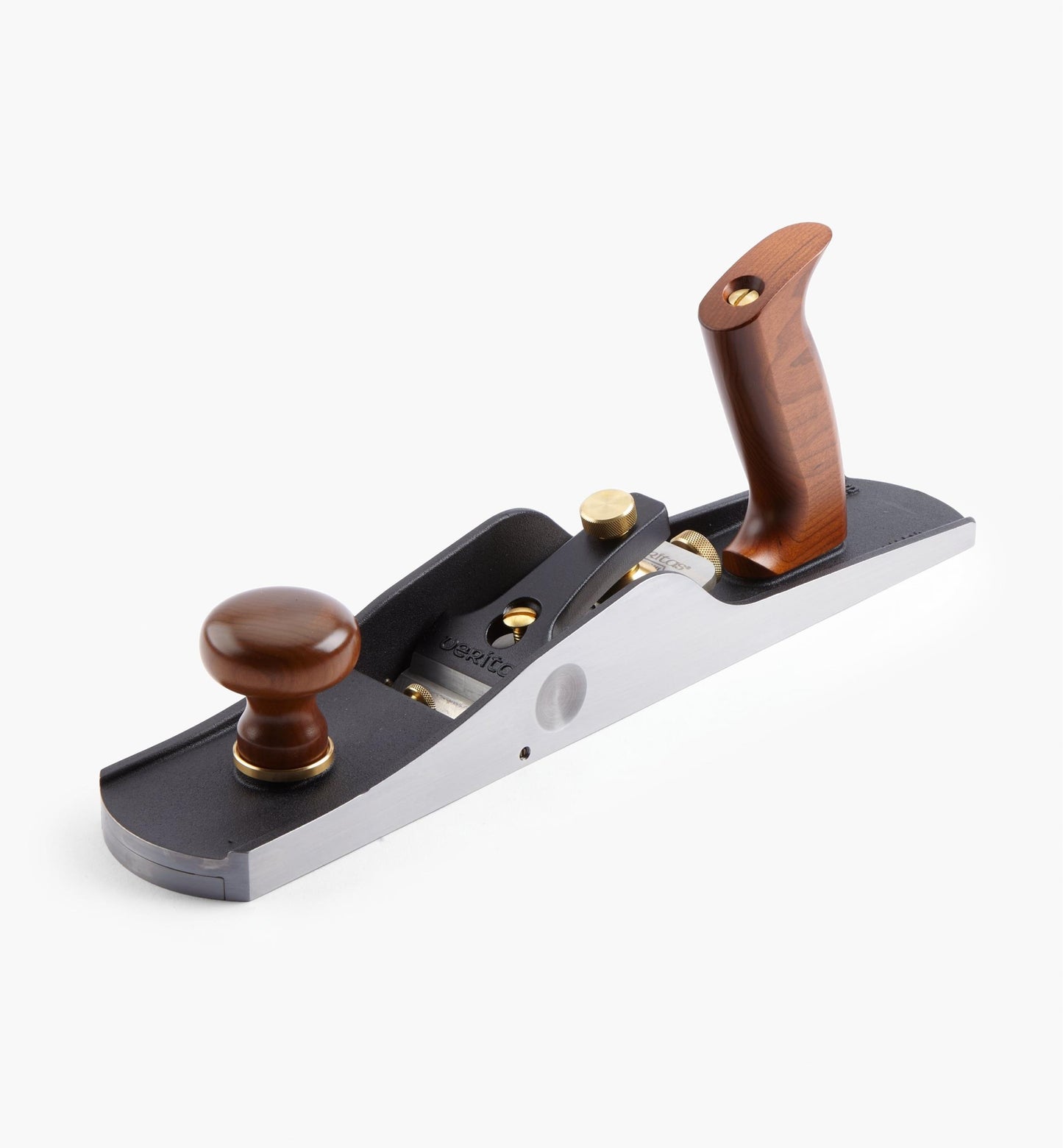

Veritas® Low-Angle Jack Plane with PM-V11 Blade

The Veritas low-angle jack plane is ideal for shooting mitres, working end grain, and initial smoothing, and has been designated as a 62-1/2 because of its generous size and weight, low centre of gravity, and radically set-back mouth. This is a bevel-up plane, with a 12° bed angle similar to a low-angle block plane. The plane is generous 381mm long, 70mm wide and weighs in at 2.61Kg. You will appreciate the way this plane sits on the workpiece, with a toe that is one third the length of the sole. The body is fully stress-relieved, ductile cast iron. With sides machined square to the sole, a specially shaped lever cap, and the machined thumb recess on either side of the body, it provides both comfort and excellent control when shooting.
The plane's adjustable mouth can be closed to a narrow slit for fine shavings with minimum tear-out or opened for heavier cuts. All of this can be done quickly and accurately with the front locking knob and the unique mouth adjustment screw. The large hardwood front knob and rear handle provide a comfortable grip. The adjustment mechanism, with its combined feed and lateral adjustment knob, makes blade setting easy and accurate. The set screws on either side of the blade prevent it from shifting in use, but allow full lateral adjustment.
Includes a lapped 25° blade, 57mm wide by 4.75mm thick, in PM-V11® tool steel. Honing instructions for various cutting angles included.
Patented. Made in Canada.
