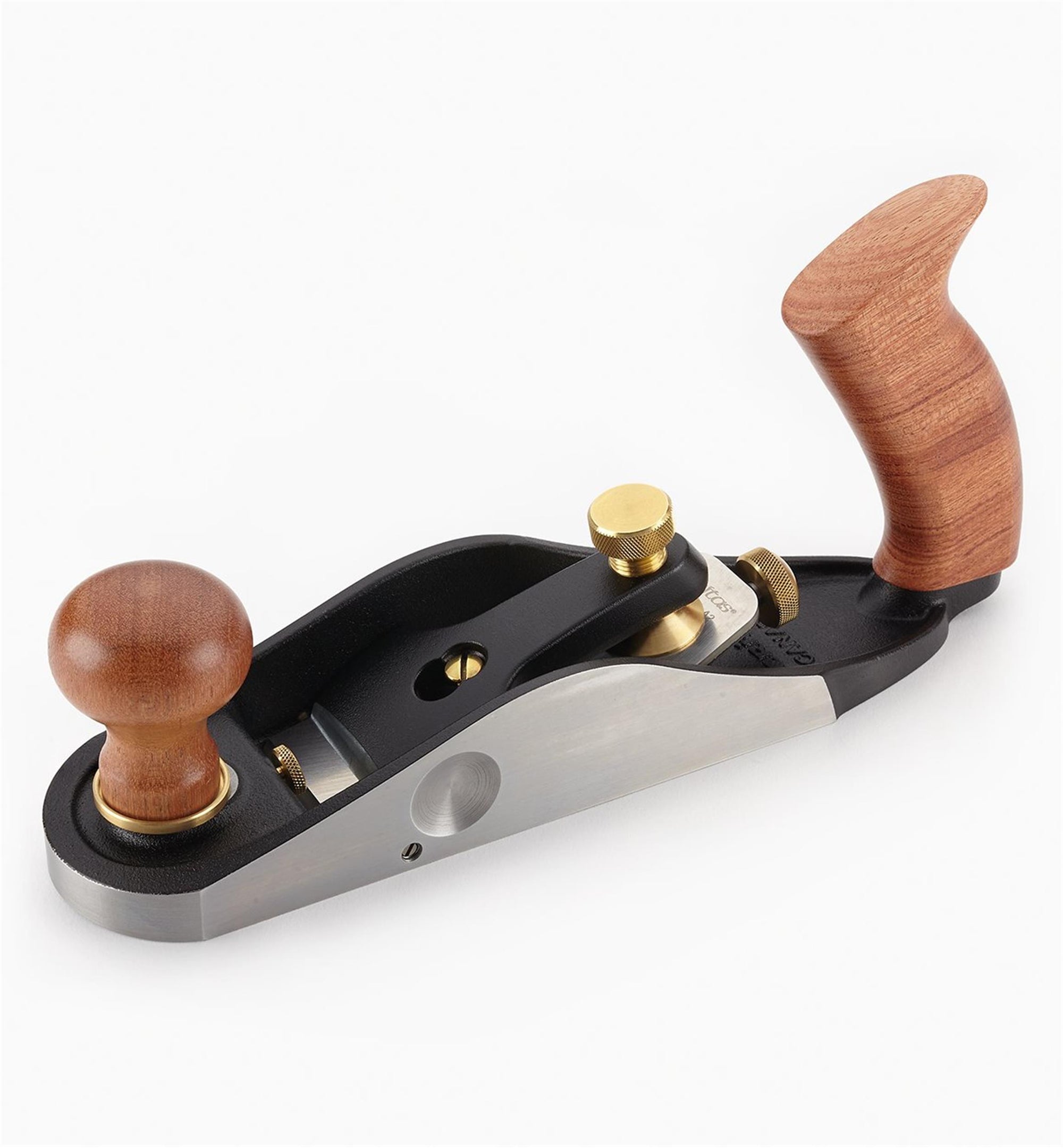

Veritas Small Bevel-Up Smooth Plane with PM-V11 Blade

Veritas Small Bevel-Up Smooth Plane with PM-V11 Blade

Product Code:
05P39-71

With a size comparable to a #3 bench plane, this low-angle smoother is 9" long, 2 5/16" wide and weighs only 2 lb 12 oz. Smaller and lighter than a full-size smoother, it is easier to maneuver and is less fatiguing to use for extended periods. Further, since the blade is narrower, at 1 3/4" wide, cuts are easier to push through.
Like the full-size versions, it is useful for final finishing of surfaces, end-grain work and for shooting miters. The machined and surface ground ductile cast iron body has a 12 bed angle and a movable toe fully enclosed by the body casting.

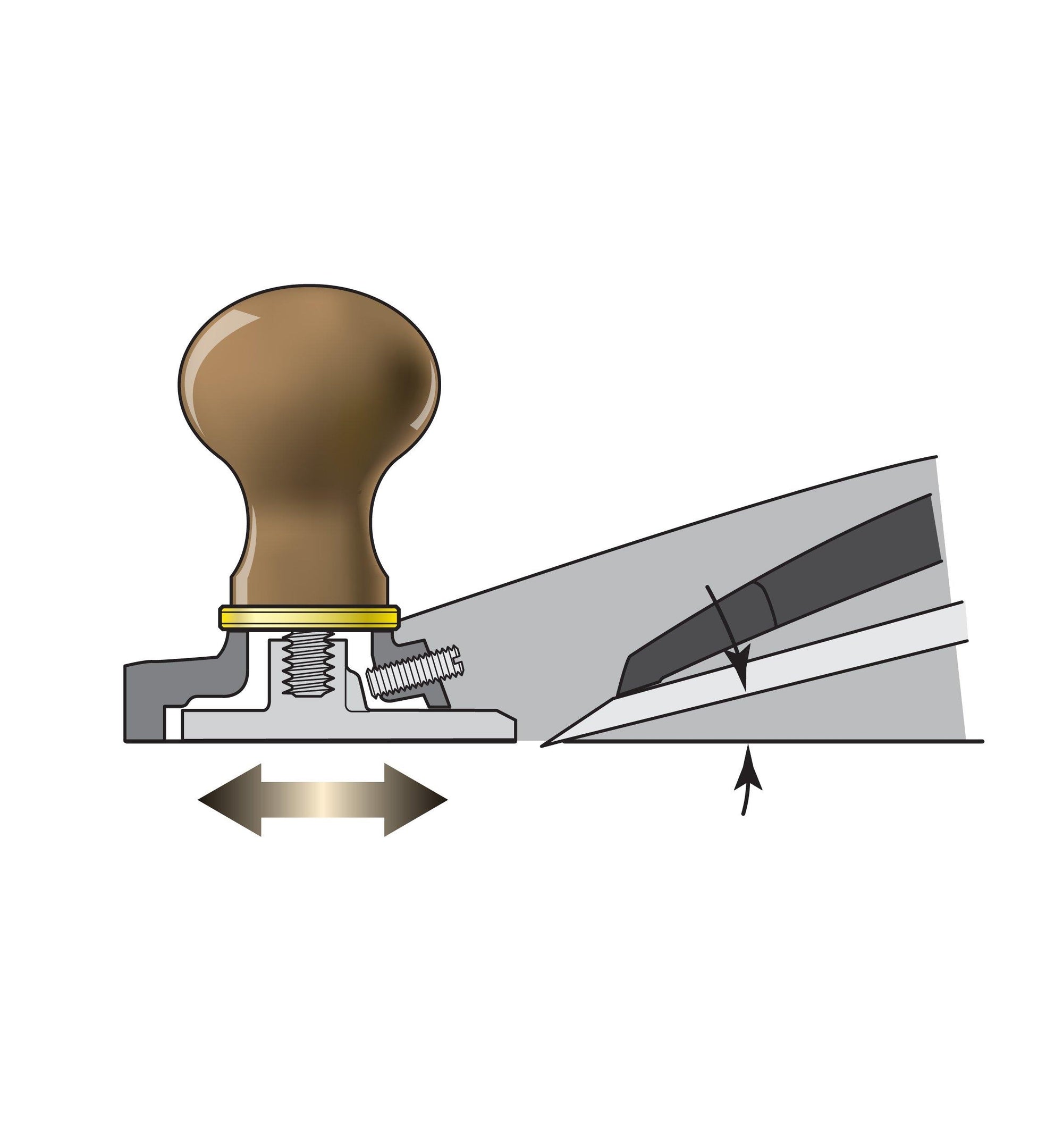

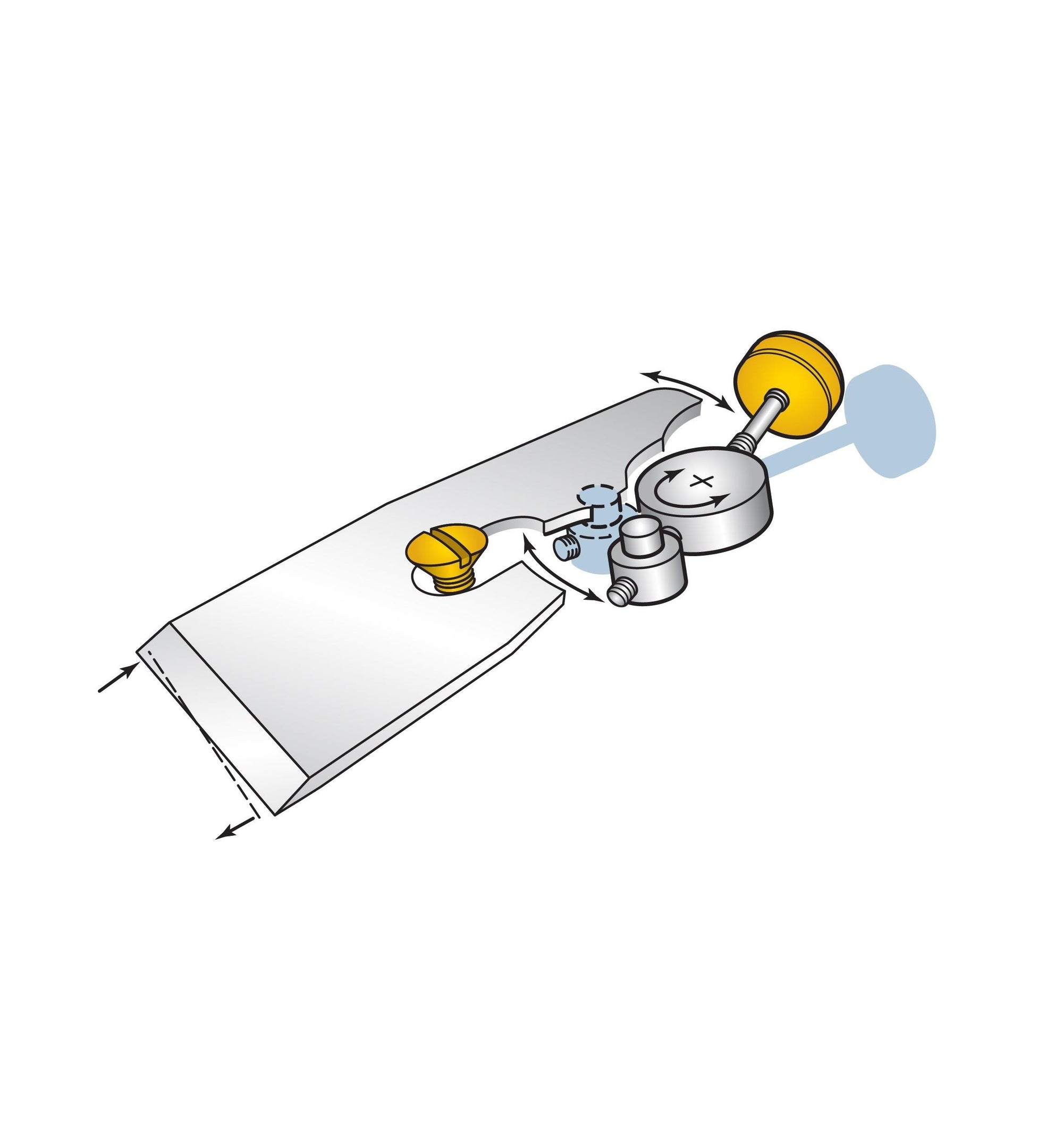

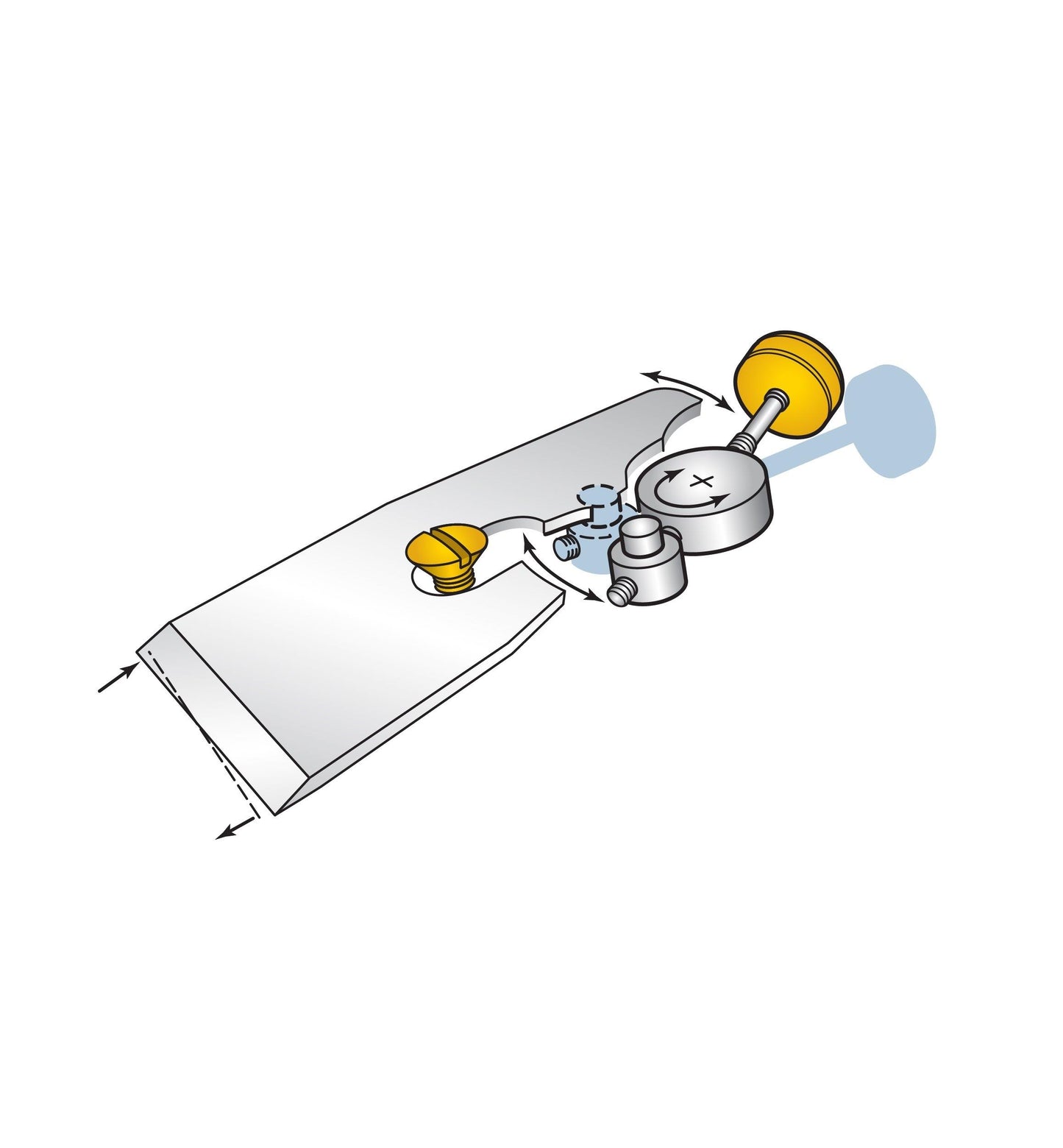

The locking front knob controls the toe to set the mouth opening, while an unobtrusive stop-screw in the throat allows repeatable mouth setting and prevents contact between the blade and toe. The Norris-type adjuster mechanism combines feed and lateral adjustments, making blade setting accurate and easy. Set screws on either side of the blade prevent shifting in use. The front knob and rear handle are hardwood.
Yielding an effective cutting angle of 37 to minimize fiber tearing, the included 25 bevel blade is 1/8" thick, lapped, and available in A2, O1 or PM-V11 tool steel. For working difficult grain, optional 38 and 50 bevel blades, as well as a toothed A2 blade, are available separately.
Made in Canada. Patented.

$431.00
$0.00 $431.00
Inc GST
Tax included. Shipping calculated at checkout.
Or from $10/week with
Or pay in 4 interest-free payments of $107.75
Carbatec offers a variety of warranties and return options for selected products. Please refer to the Warranty Documentation provided with your purchased product for full details, inclusions and exclusions. See our Terms Of Service for further information.
Need assistance?
We're Here To Help 9am - 5pm AEST Monday - Friday and 8am - 12pm AEST Saturdays
1800 658 111
Call us
View full details
Product Details

With a size comparable to a #3 bench plane, this low-angle smoother is 9" long, 2 5/16" wide and weighs only 2 lb 12 oz. Smaller and lighter than a full-size smoother, it is easier to maneuver and is less fatiguing to use for extended periods. Further, since the blade is narrower, at 1 3/4" wide, cuts are easier to push through.
Like the full-size versions, it is useful for final finishing of surfaces, end-grain work and for shooting miters. The machined and surface ground ductile cast iron body has a 12° bed angle and a movable toe fully enclosed by the body casting.
The locking front knob controls the toe to set the mouth opening, while an unobtrusive stop-screw in the throat allows repeatable mouth setting and prevents contact between the blade and toe. The Norris-type adjuster mechanism combines feed and lateral adjustments, making blade setting accurate and easy. Set screws on either side of the blade prevent shifting in use. The front knob and rear handle are hardwood.
Yielding an effective cutting angle of 37° to minimize fiber tearing, the included 25° bevel blade is 1/8" thick, lapped, and available in A2, O1 or PM-V11 tool steel. For working difficult grain, optional 38° and 50° bevel blades, as well as a toothed A2 blade, are available separately.
Made in Canada. Patented.
