- Works with a plunge router and 1/2'' bit to create a grid of 3/4'' dog holes spaced 4'' on center
- Resulting holes accepts 3/4'' round bench dogs and other work-holding accessories
- Wedging action of dog pins locks template into routed holes to prevent shifting
- Removable pins make it easy to start the pattern in one corner and expand as needed
- Guide marks show centerlines of holes for alignment if routing alternate pattern
- Includes four edge pins, three indexing dog pins and brass guide bushing

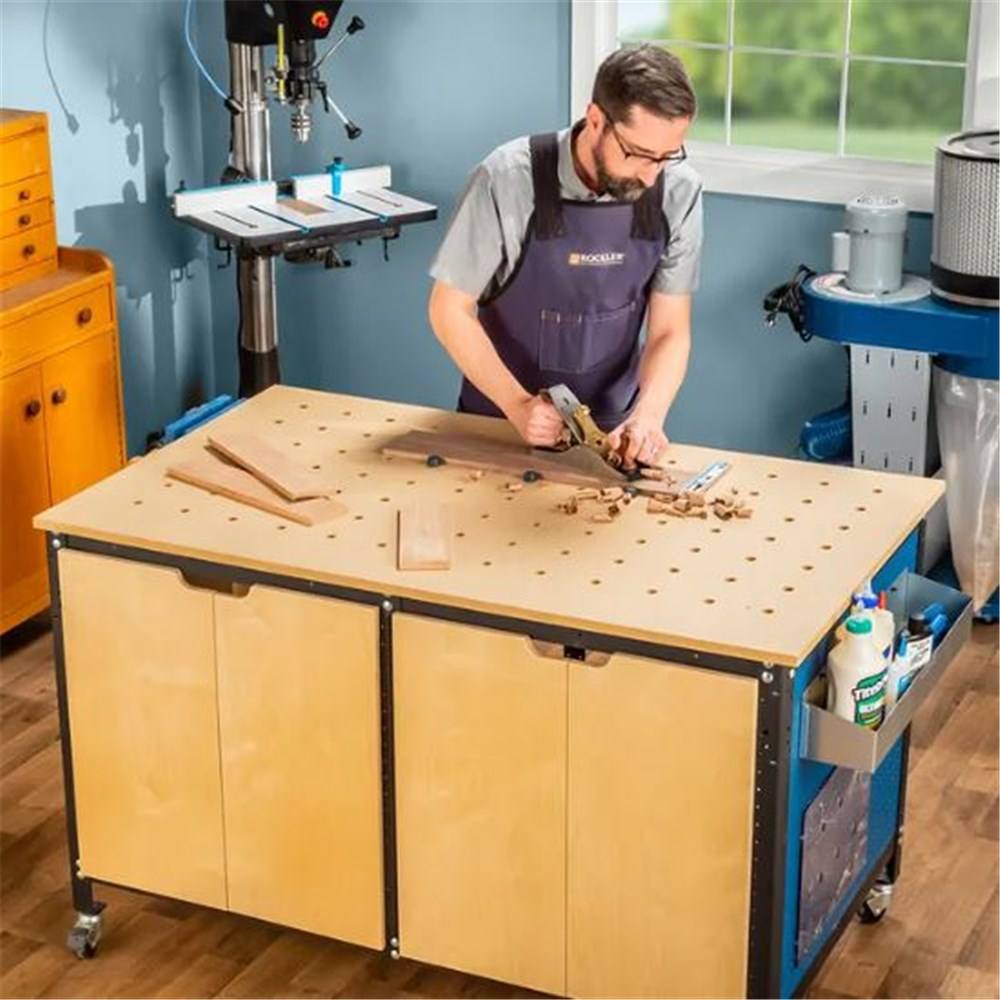

This clear template makes it easy to use a plunge router and a 1/2'' straight bit to create a grid of 3/4'' dog holes in your benchtop. These holes then allow you to use a variety of optional bench dogs, hold-downs, dog hole clamps, holdfasts, auto-adjust dog clamps, planing stops, Bench Cookie Risers and more. The template spaces your holes 4'' apart, allowing you to secure your work anywhere on the workbench.
(1) Clear polycarbonate router template
(3) Dog hole pins
(4) Edge pins
(1) 3/4'' brass router bushing
