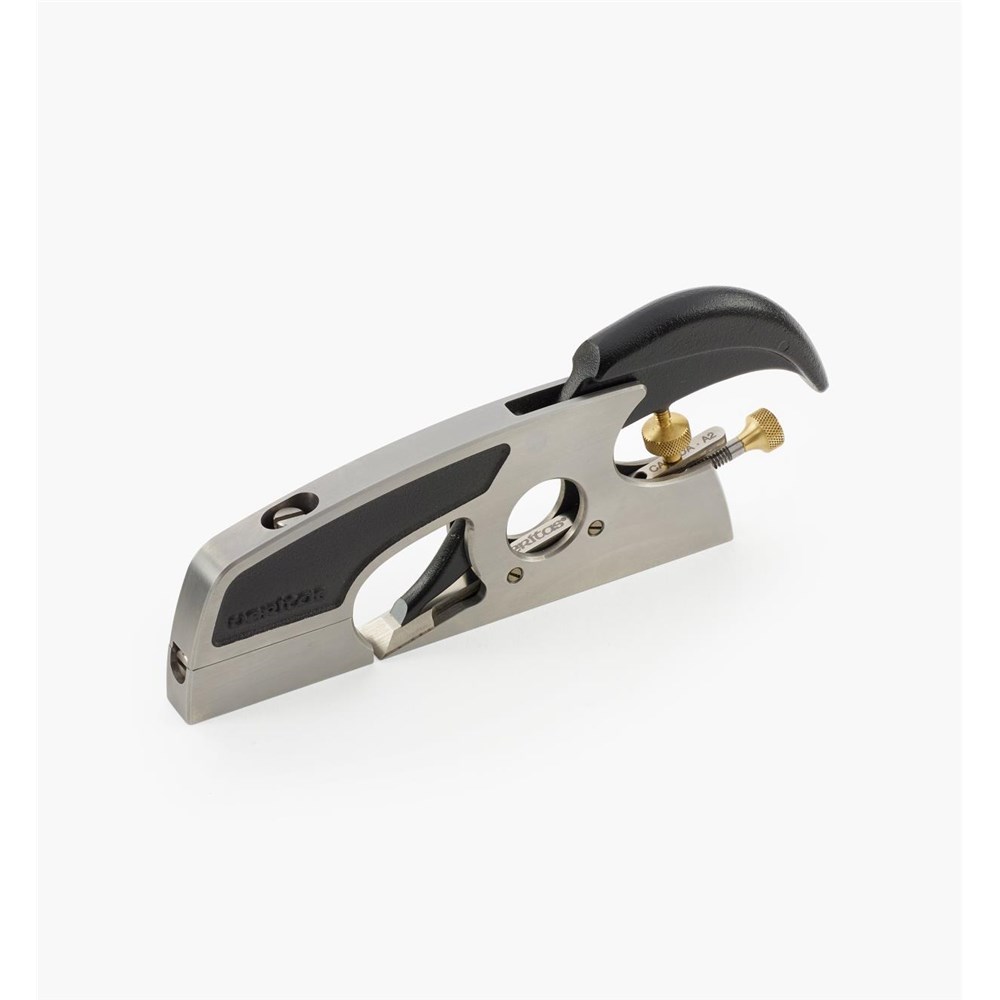

Veritas® Small Shoulder Plane with PM-V11 Blade

Product Code: 05P47-71

Tags Veritas
$402 inc GST
In Stock Low Stock Temporarily Out Of Stock Please See Attributes
Buy Quantity Each (inc GST) Price (each) You Save %
Increase value Decrease value
  • Details
  • Specifications

Designed to seat nicely in the hand, our smallest shoulder plane is easily controlled using a one-handed grip.

The lever cap wraps around the rear of the body, shrouding the blade adjustment mechanism so it does not obstruct the grip while acting as a comfortable rest for the palm.

The through-hole and textured recesses cast into the side of the body provide grip points for fingers.

The plane weighs 1 lb 2 oz and has a 6 1/4" long, 1/2" wide sole. The ductile cast iron body is accurately machined and ground so that the sole and sides are flat and square.

The plane's adjustable toe lets you restrict the mouth for very fine shavings with minimum tear-out.

The low bed angle of 15° combined with the 25° blade bevel results in a cutting angle of 40° for exceptional end-grain cutting.

Set screws along the side let you accurately position the blade so it requires no lateral adjustment when replacing the blade after sharpening.

The lapped blade is 1/8" (0.125") thick and 1/2" wide, and made of PM-V11 tool steel.

Made in Canada. Patented.

Brand Veritas
This item contains the following component products
Product Code
Description
Quantity included
05P47-50
SMALL SHOULDER PLANE BODY ONLY NO BLADE
1
05P47-72
Veritas Replacement PM-V11® Blade to suit Small Shoulder Plane
1
