Veritas Small Bevel-Up Smooth Plane with PM-V11 Blade

Product Code: 05P39-71

Tags Veritas
$431 inc GST
In Stock Low Stock Temporarily Out Of Stock Please See Attributes
Buy Quantity Each (inc GST) Price (each) You Save %
Increase value Decrease value
  • Details
  • Specifications

With a size comparable to a #3 bench plane, this low-angle smoother is 9" long, 2 5/16" wide and weighs only 2 lb 12 oz. Smaller and lighter than a full-size smoother, it is easier to maneuver and is less fatiguing to use for extended periods. Further, since the blade is narrower, at 1 3/4" wide, cuts are easier to push through.

Like the full-size versions, it is useful for final finishing of surfaces, end-grain work and for shooting miters. The machined and surface ground ductile cast iron body has a 12° bed angle and a movable toe fully enclosed by the body casting.

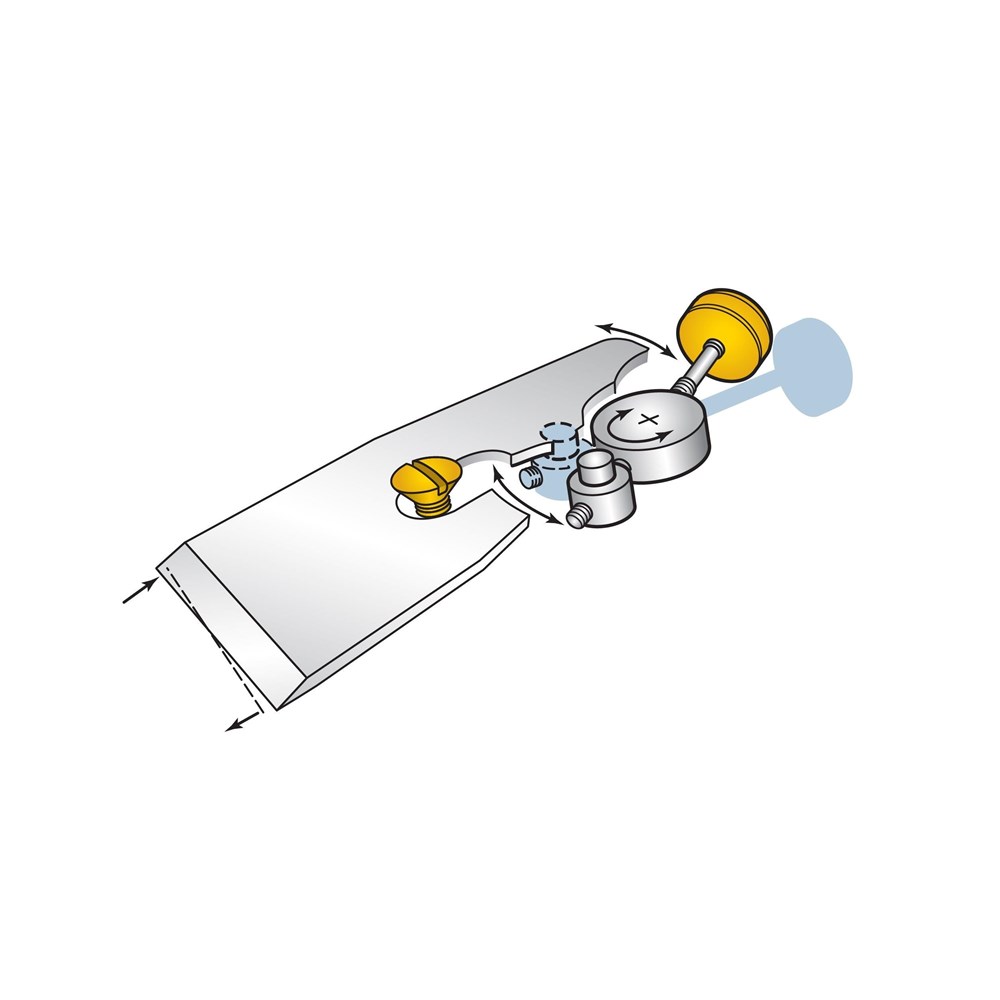

The locking front knob controls the toe to set the mouth opening, while an unobtrusive stop-screw in the throat allows repeatable mouth setting and prevents contact between the blade and toe. The Norris-type adjuster mechanism combines feed and lateral adjustments, making blade setting accurate and easy. Set screws on either side of the blade prevent shifting in use. The front knob and rear handle are hardwood.

Yielding an effective cutting angle of 37° to minimize fiber tearing, the included 25° bevel blade is 1/8" thick, lapped, and available in A2, O1 or PM-V11 tool steel. For working difficult grain, optional 38° and 50° bevel blades, as well as a toothed A2 blade, are available separately.

Made in Canada. Patented.

Brand Veritas
This item contains the following component products
Product Code
Description
Quantity included
05P39-50
VERITAS SMALL BEVEL UP SMOOTH PLANE BODY ONLY NO BLADE
1
05P39-72
Veritas Replacement PM-V11 Plane Blade - with 25° Bevel
1
